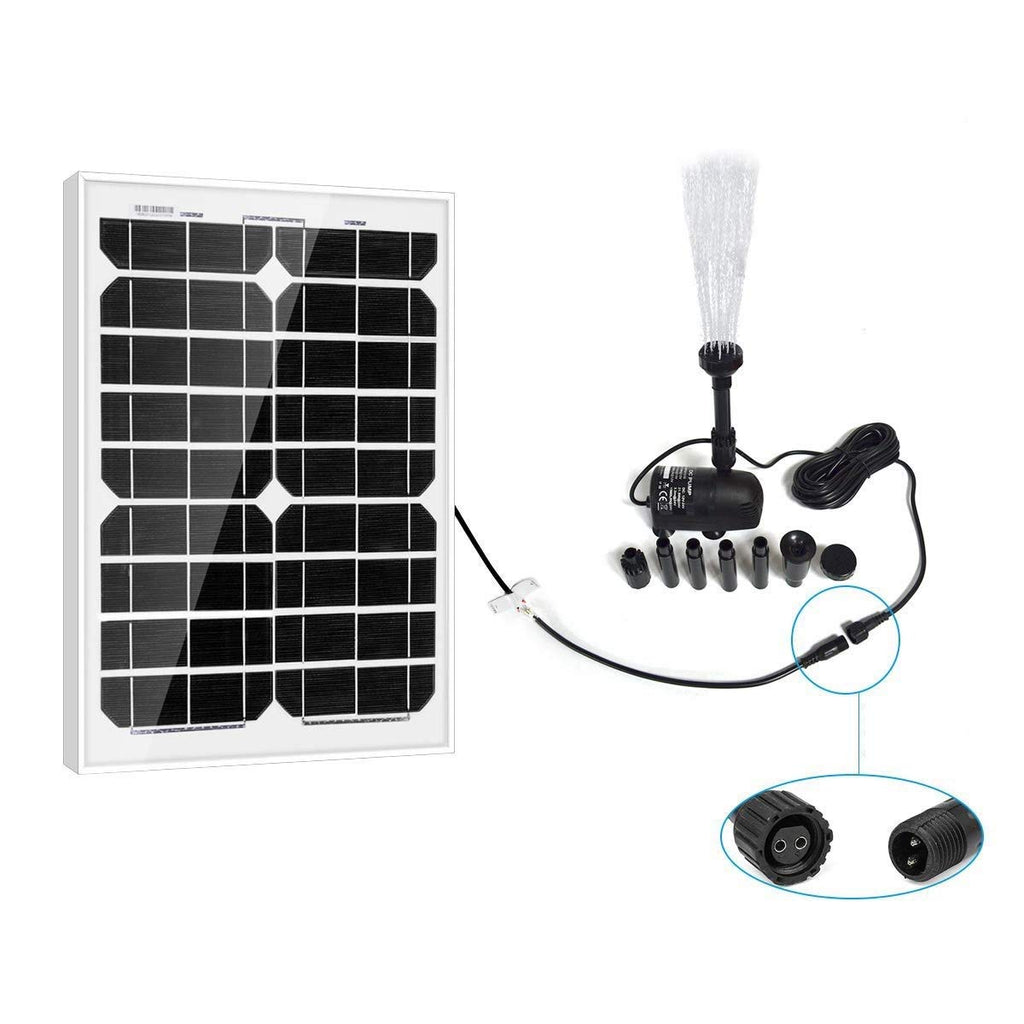

ACOPOWER Solar Water Pump Kit-410GPH Submersible Pump and 20W Solar Panel HY-20WPUMP

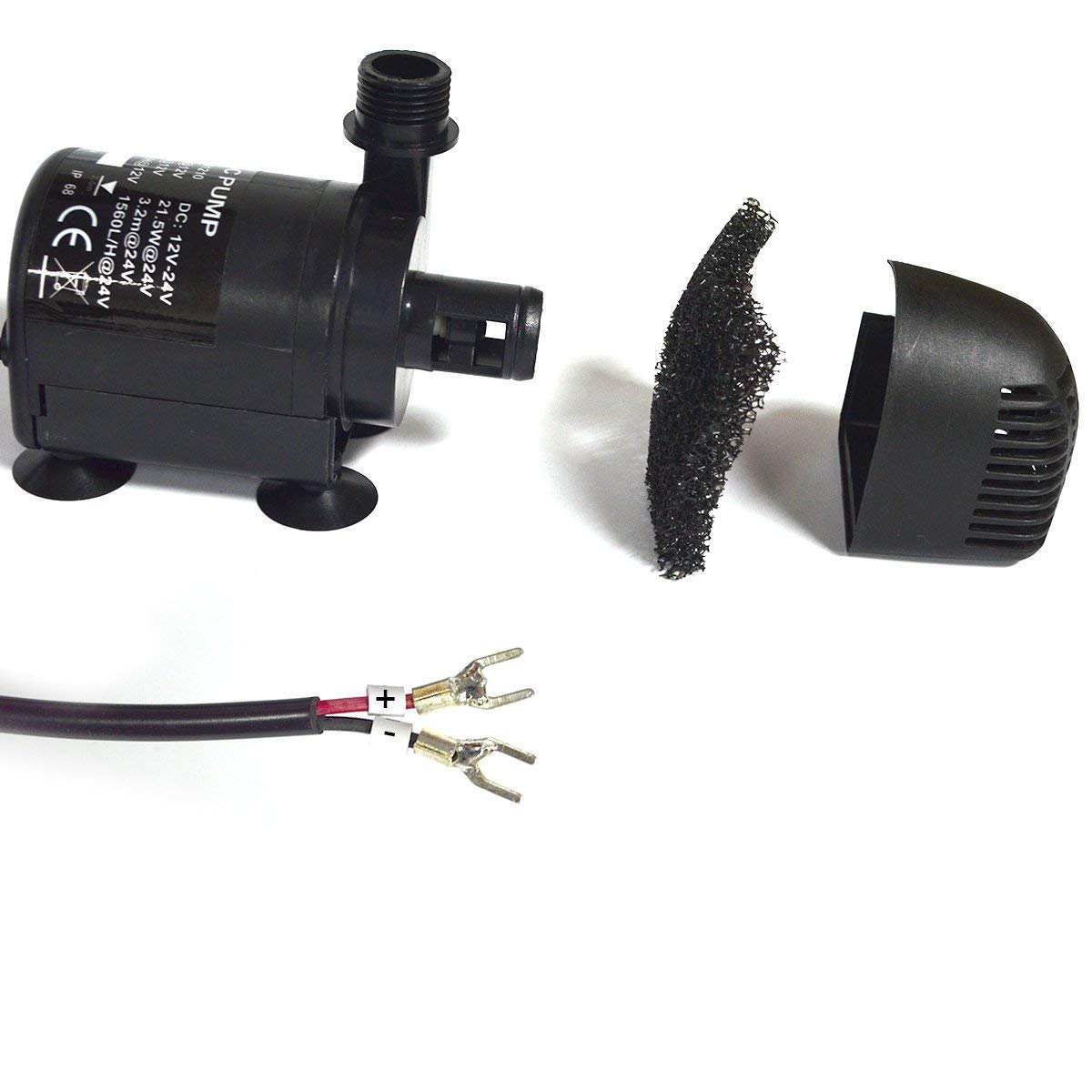

Pump Specifications

• Power Source: DC 12–24V brushless motor

• Max Water Lift: 3.3 ft at 12V / 10.5 ft at 24V

• Max Flow Rate: 240 GPH @12V, 410 GPH @24V

• Startup: Requires sunlight to operate; restarts automatically within 3 seconds once sunlight returns

• Lifespan: Over 20,000 hours

• Color: Black

• Package Weight: 1.8 lb

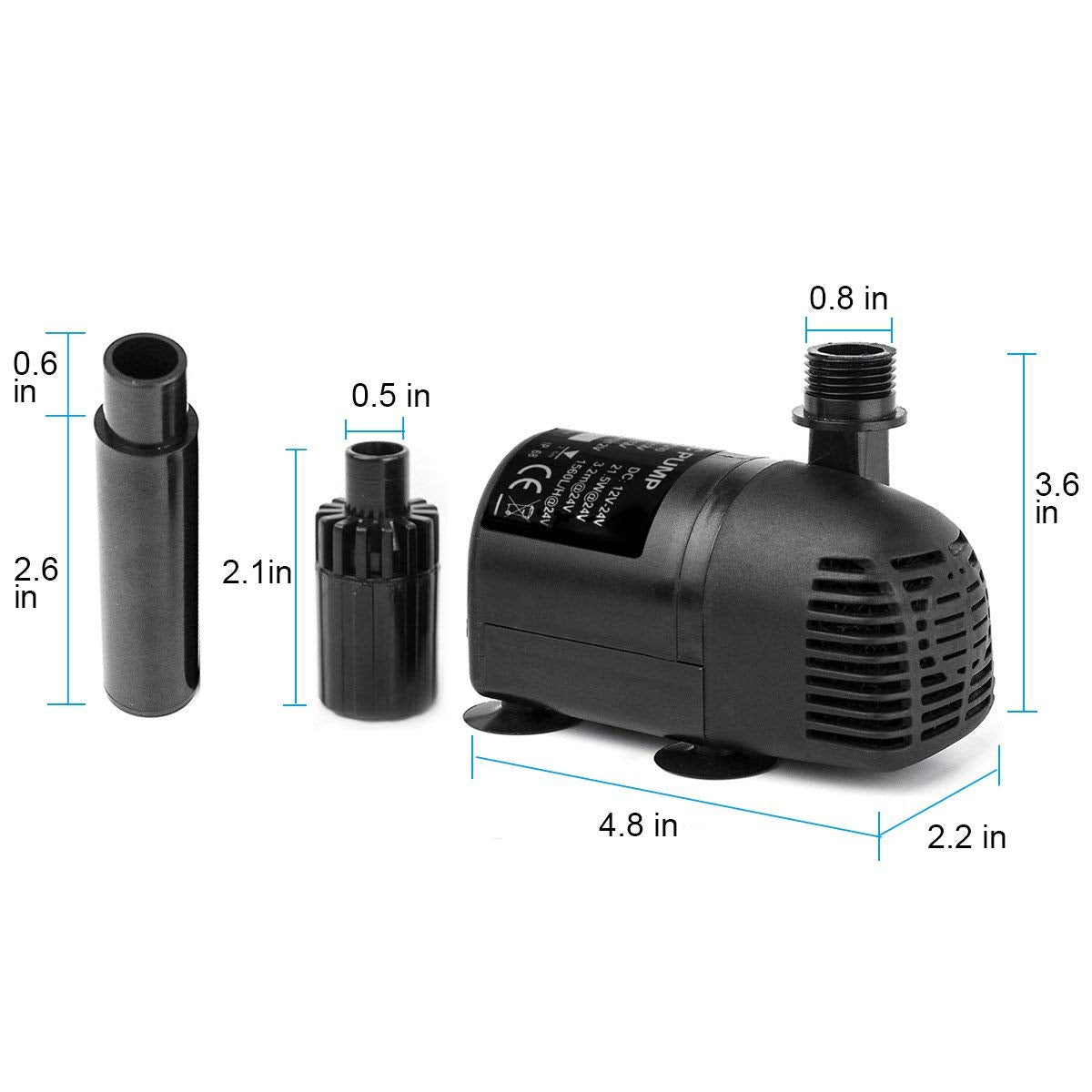

• Dimensions: 170 × 105 × 110 mm

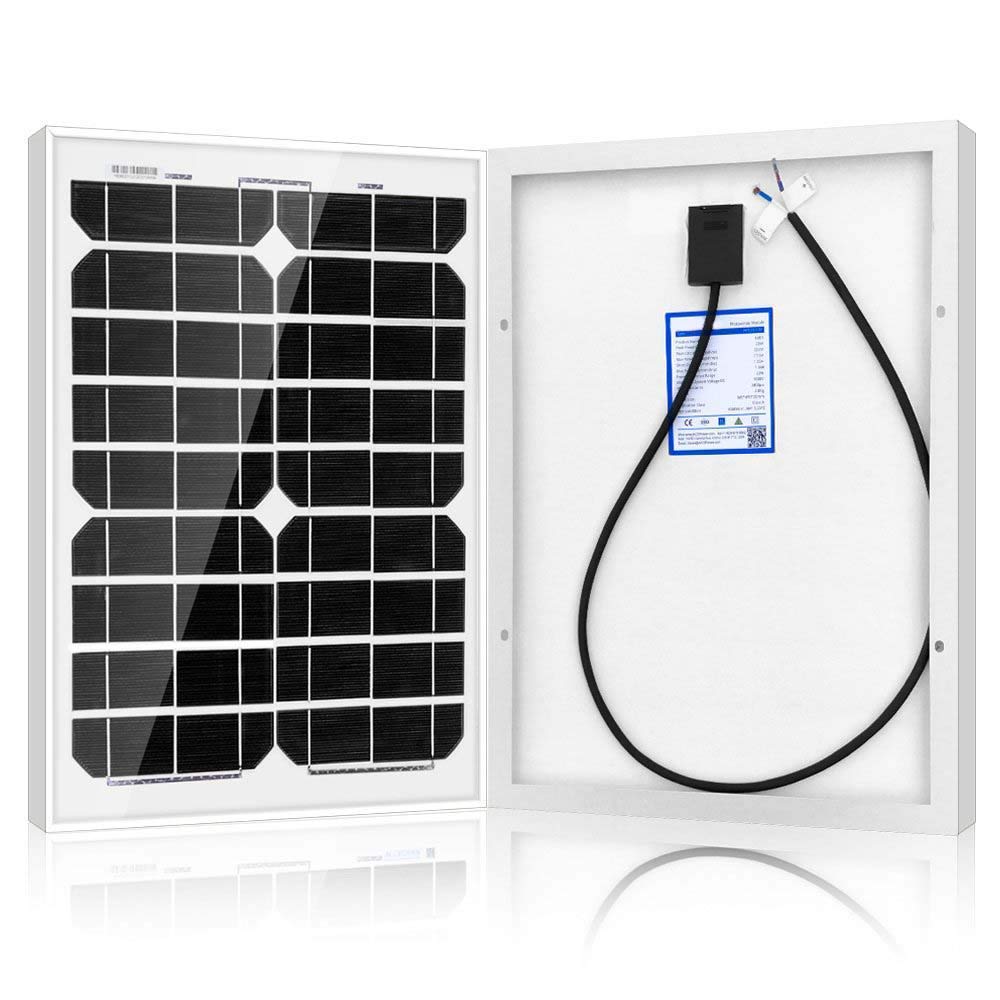

20W Mono Solar Panel Specifications

• Peak Power: 20W

• Short-Circuit Current (Isc): 1.23A

• Open-Circuit Voltage (Voc): 22V

• Operating Current (Imp): 1.14A

• Operating Voltage (Vmp): 17.5V

• Weight: 4.25 lb

• Size: 18.5 × 14.2 × 0.8 in

• Test Conditions: 1000W/m², AM1.5, 25°C (STC)

Operation Guidelines

1. Fully submerge the pump in water, keeping the nozzle above the surface.

2. Place the solar panel in direct sunlight for optimal performance.

3. Ensure no debris or leaves block the panel.

4. Before use, unplug the pump briefly to let trapped air escape.

Usage Tips

• Do not run the pump dry, as this reduces its lifespan.

• Keep the pump submerged and the solar panel dry.

• Clean the pump, outlet, and nozzles regularly to prevent clogging.

• Replace water frequently to maintain cleanliness.

• Keep the solar panel surface clean for efficient sunlight absorption.

Package Includes

• 1 × Water Pump

• 1 × 20W Mono Solar Panel

• Assorted Attachments

• 1 × User Manual
