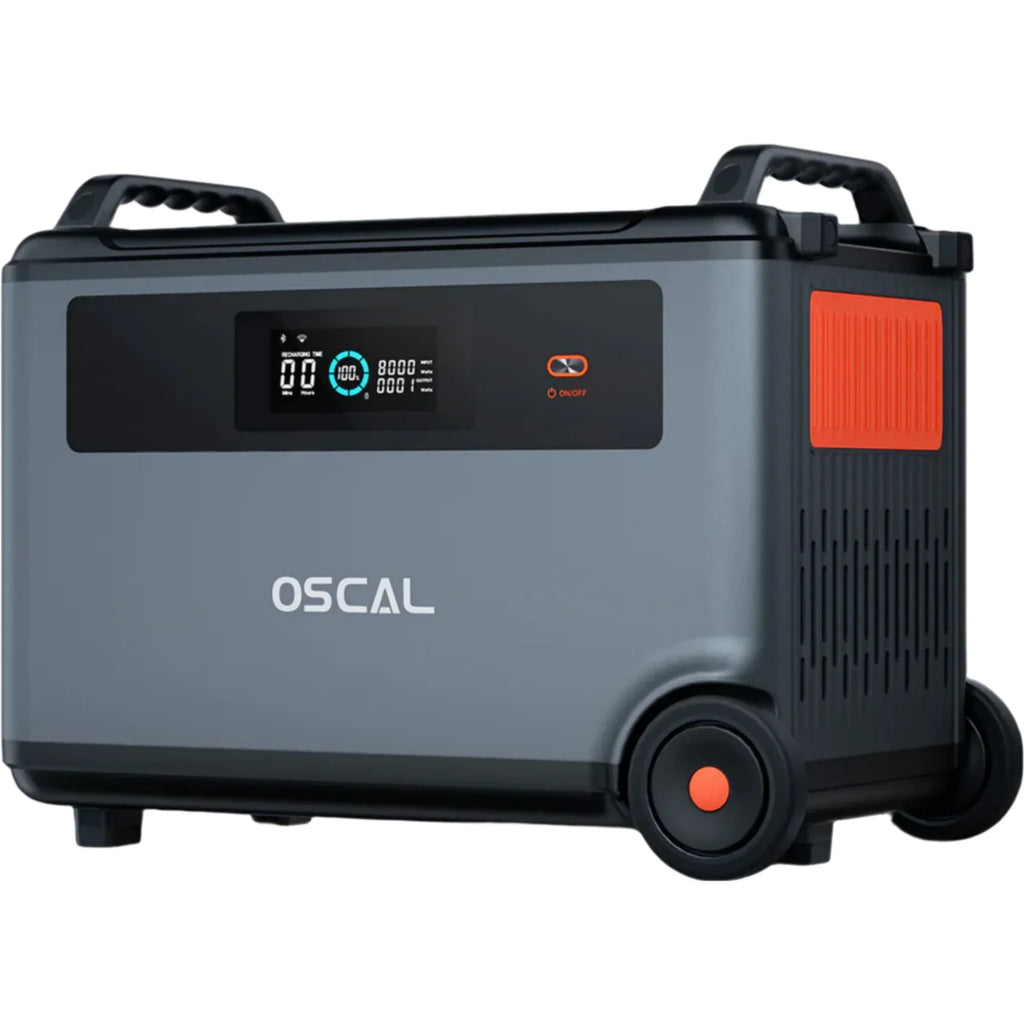

Oscal BP3600 Battery Expansion Module – 3,600 Wh Extra Power
Take your Oscal PowerMax 3600 or 6000 to the next level by adding the BP3600 — a high-capacity, plug-and-play LiFePO₄ battery pack that extends runtime and keeps your system running stronger than ever.
🔋 Massive Power Boost
-
3,600 Wh capacity per module—doubling your startup storage (PowerMax 3600) or stacking up for extended backup.
-

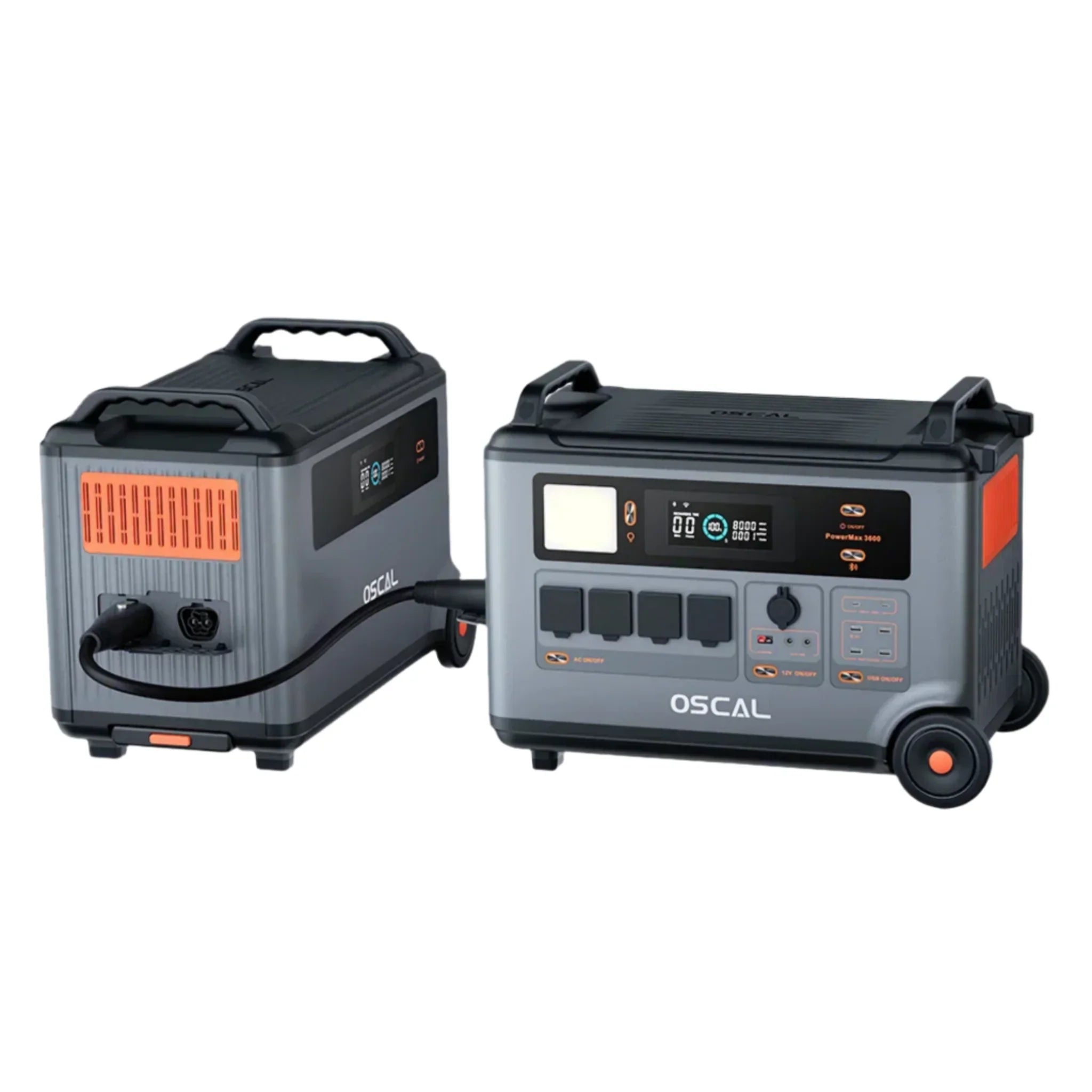

Support stacking with PowerMax 3600 or 6000 via a simple expansion port—no tools or cables required.
-

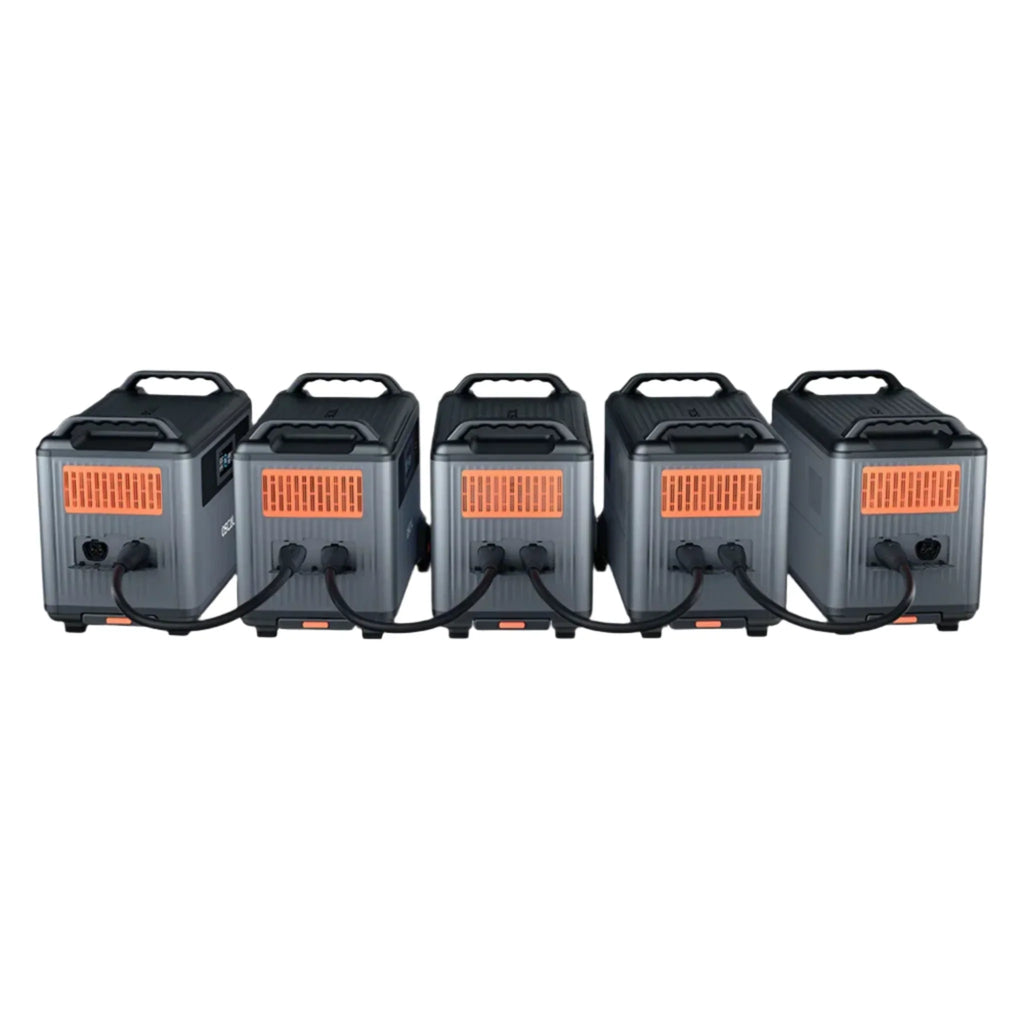

Expand up to 57.6 kWh, adding up to 15 modules for long-term off-grid or blackout resilience.
⚡ Reliable Lithium-Iron Phosphate (LiFePO₄) Battery
-
Rated for 3,500+ cycles to 80% capacity—designed to last years of repeated use.
-
Advanced Battery Management System (BMS) provides overcharge, overdischarge, overcurrent, short circuit, overtemperature safeguards.
🔄 Concurrent Charging & Use
-
Simultaneous recharge and discharge means no downtime—power your devices while grids recharge the battery.
📱 Smart App Control
-
Connect via Wi‑Fi or Bluetooth to the Oscal Smart App—monitor battery status, health, and manage firmware.
🌡️ Designed for All Environments
-
Charge range: 0 °C to 50 °C (32 °F to 122 °F)
-
Discharge range: –20 °C to 55 °C (–4 °F to 131 °F)
-
Storage: –10 °C to 45 °C (14 °F to 113 °F)
📏 Product Specs at a Glance
| Specification | Details |
|---|---|
| Capacity | 3,600 Wh per unit |
| Battery Type | LiFePO₄ |
| Cycles to 80% | 3,500+ |
| Dimensions | 23.2″ × 13.8″ × 17.4″ (590 × 350 × 441 mm) |
| Weight | ~83.1 lb (37.7 kg) |
| Compatibility | PowerMax 3600 & 6000 systems |
| Simultaneous Charge/Use | Yes |
| App Connectivity | Wi‑Fi & Bluetooth |
✅ Ideal For
-
Home backup—add hours or days of uptime during outages
-
RV & van life—extend your stay off-grid
-
Outdoor projects—power tools and devices at remote locations
-
Solar storage systems—build expandable energy setups
-
Emergency preparedness—silent, chemical-free power solution
📦 In the Box
-
1 × Oscal BP3600 Battery Module
-
1 × Expansion cable
-
User manual & warranty card
-
Backed by Oscal’s EU 4-year / US 5-year warranty
🔌 Why You'll Love It
-
Effortless expansion—stackable, stylish, no additional wiring
-
Long-lasting & rugged—industrial-grade battery chemistry with smart protection
-
Always ready—charge while you power for nonstop performance
-
Smart & secure—control and monitor from your phone
