Name: Oscal 400W Portable Solar Panel (PM400)
Brand: Oscal
SKU: PM400
Price: 450.00 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

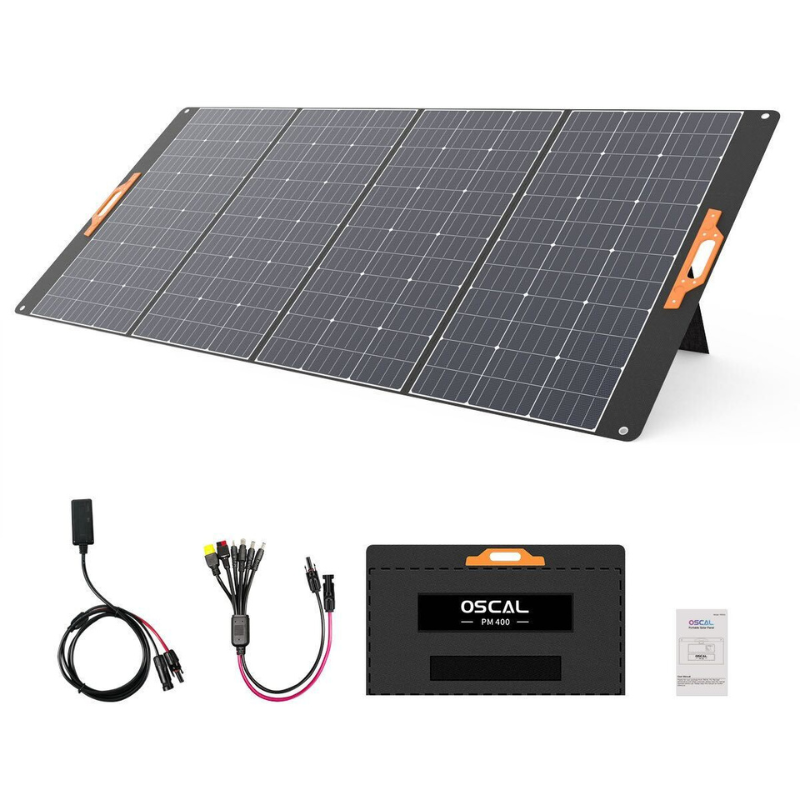

OSCAL PM400 Portable Solar Panel – 400 W Foldable Charger

Elevate your outdoor power setup with the OSCAL PM400, a rugged yet refined 400 W solar solution. Built for adventurers and off-grid users seeking reliable, high-efficiency energy that travels anywhere with ease.

🔋 Key Highlights

400 W max output (±5%) for fast, solar-powered charging of portable power stations and devices
Cutting-edge monocrystalline silicon cells offer ~22.7% efficiency for optimal energy conversion
ETFE lamination + 840D Oxford cloth enhances durability, ruggedness, and scratch resistance
IP65 waterproof rating protects against splashes, making this panel perfect for camping and outdoor use

🛠️ Rugged, Smart Build

Built-in kickstands let you angle the panel for maximum sunlight in seconds
Four reinforced grommets enable versatile mounting—ideal for rooftop, RV, or ground setups
Compact foldable design with a secure handle—each section folds to just a quarter of full size for easy transport

🌡️ Weather-Ready Performance

Operates efficiently in extreme climates, from –10 °C to +65 °C, ensuring reliable charging everywhere from deserts to mountain passes

🔧 Technical Specs

Feature	Specification
Rated Power	400 W ± 5%
Max Current (Imp)	10.1 A ± 5%
Max Voltage (Vmp)	39.6 V ± 5%
Open-Circuit Volt	47.52 V ± 5%
Short-Circuit Amp	11.11 A ± 5%
Cell Efficiency	≥22.7%
Lamination	ETFE protected
Cell Type	Monocrystalline silicon
Operating Temp	–10 °C to +65 °C
Folded Dimensions	~53 × 100 × 6 cm
Unfolded Size	~233 × 105 × 2.5 cm
Weight	~17 kg

✅ Why You'll Love the PM400

Speedy charging for full-sized solar generators thanks to robust 400 W power
Tough enough for outdoor life—scratch-proof, splash-resistant, and stand-ready
Portable & easy—folds down compactly with a built-in handle and sturdy kickstands
Plug-and-play ready for use with MC4-compatible generators, RVs, boats, and home setups

📦 In the Box

1 × OSCAL PM400 Solar Panel
1 × MC4 extension cable
User manual + warranty documentation (2-year factory warranty)

🏕️ Perfect For

Camping, hiking, and van life
RV and off-grid lifestyles
Backup power in cabins or sheds
Emergency preparedness and outdoor work zones
Pairing with your OSCAL PowerMax or any MC4 system

🌟 Add to Your Energy Arsenal

Pair the PM400 with an OSCAL PowerMax portable station to create a self-powered, silent, off-grid setup. Ideal for adventures, continuous backup, or eco-friendly electricity without boundaries.
