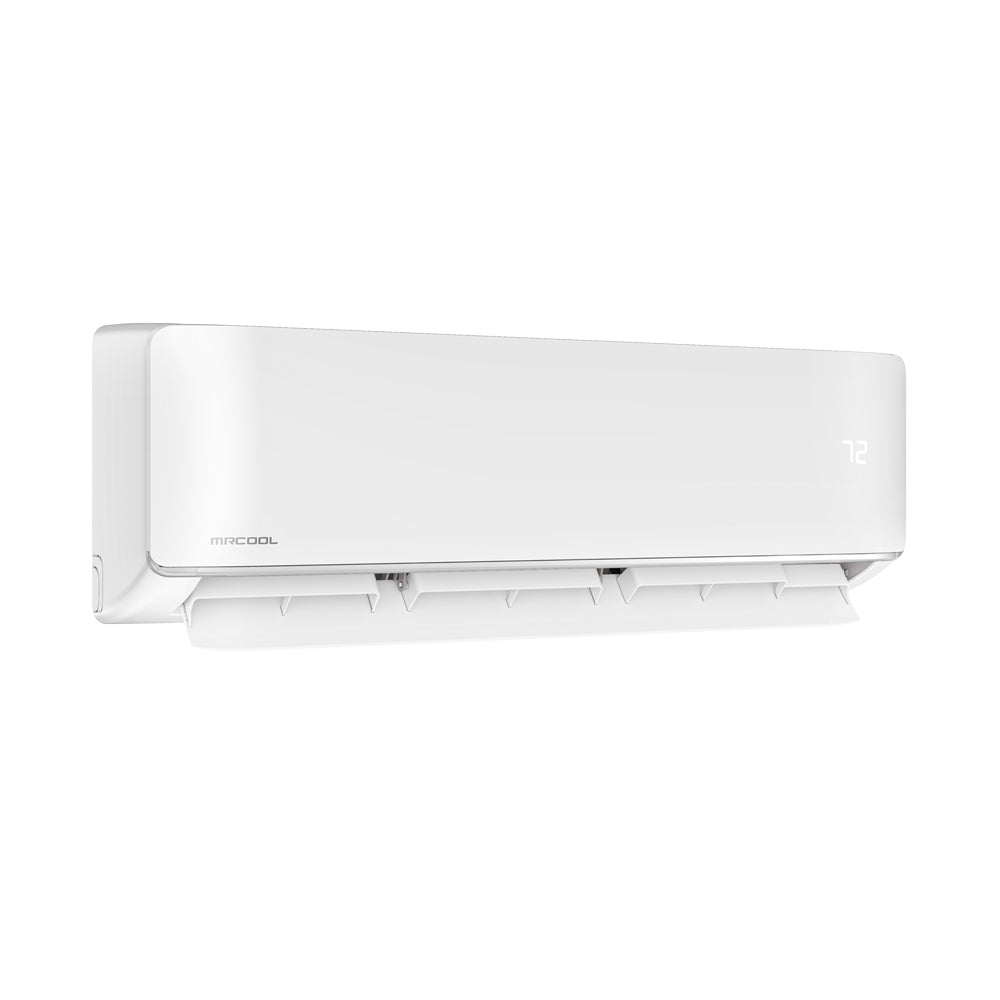

MRCOOL® DIY® 5th Gen 9K BTU Single Zone Ductless Heat Pump Air Handler
The MRCOOL® DIY® 5th Generation 9K BTU Single Zone Mini-Split Heat Pump delivers efficient, year-round comfort for spaces up to 400 sq. ft.—all with a fast, hassle-free DIY installation. No special tools or professional help required.
Simple, Fast Installation
-
DIY® QuickConnect® Line Set (sold separately): Pre-charged with R-454B refrigerant, eliminating vacuuming for a quicker, easier, and more affordable setup.
-
DIYPRO® Cable: Replaces electrical conduit while offering exceptional durability against outdoor elements and wildlife.
Smart, Flexible Control
-
Operate via wireless remote, SmartHVAC app (iOS & Android), or voice commands with Amazon Alexa and Google Assistant.
-
Gold Fin® Condenser: Superior corrosion resistance for long-lasting performance, especially in coastal areas.
-
Follow Me: Adjusts airflow temperature based on the remote’s location for consistent comfort.
-
Dry Mode: Acts as a dehumidifier to remove excess moisture.
Long-Lasting Reliability
With advanced features, effortless control, and industry-leading protection, the MRCOOL® DIY® 9K BTU Single Zone Air Handler is the perfect blend of convenience, efficiency, and durability.
|
FEATURE LIST
|
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
|
|
TONNAGE
|
0.75
|
|
VOLTAGE (V)
|
115
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
15
|
|
MIN CIRCUIT AMPACITY (A)
|
3
|
|
MOUNT TYPE
|
Wall
|
|
COLOR
|
White
|
|
MAX COVERAGE AREA
|
400 sqft
|
|
DECIBEL RATING LOW (DBA)
|
18
|
|
DECIBEL RATING HIGH (DBA)
|
43
|
|
NUMBER OF SPEEDS
|
5
|
|
OSCILLATION
|
Yes
|
|
LIQUID LINE SIZE
|
1/4
|
|
SUCTION LINE SIZE
|
3/8
|
|
FILTER TYPE
|
Reusable
|
|
AUXILIARY HEATER INCLUDED
|
No
|
|
AUXILIARY HEATER AVAILABLE
|
No
|
|
FAN ONLY OPTION
|
Yes
|
|
QUIET MODE
|
Yes
|
|
AUTO COOL
|
Yes
|
|
WIFI COMPATIBILITY
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
WORKS WITH IOS
|
Yes
|
|
WORKS WITH ANDROID
|
Yes
|
|
REMOTE CONTROL INCLUDED
|
Yes
|
|
UL LISTED
|
Yes
|
|
ETL LISTED
|
Yes
|
|
ENERGY STAR CERTIFIED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
REGISTERED WARRANTY
|
Extended Limited Lifetime*
|
|
BASE PARTS WARRANTY
|
5
|
|
BASE COMPRESSOR WARRANTY
|
7
|
|
HAS BATTERIES
|
Yes
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
NET DEPTH (IN)
|
7.44
|
|
NET HEIGHT (IN)
|
11.69
|
|
NET WIDTH (IN)
|
31.57
|
|
NET WEIGHT (LBS)
|
24.91
|
|
GROSS DEPTH (IN)
|
16.34
|
|
GROSS HEIGHT (IN)
|
14.37
|
|
GROSS WIDTH (IN)
|
36.02
|
|
GROSS WEIGHT (LBS)
|
35.49
|
|
