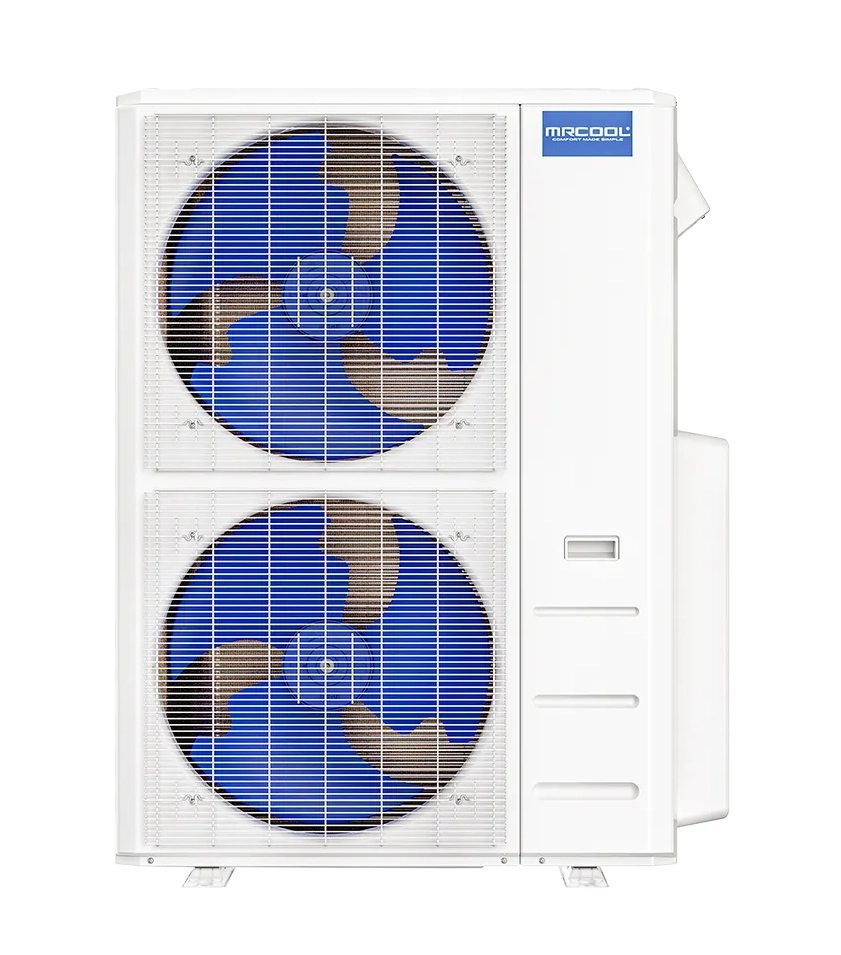

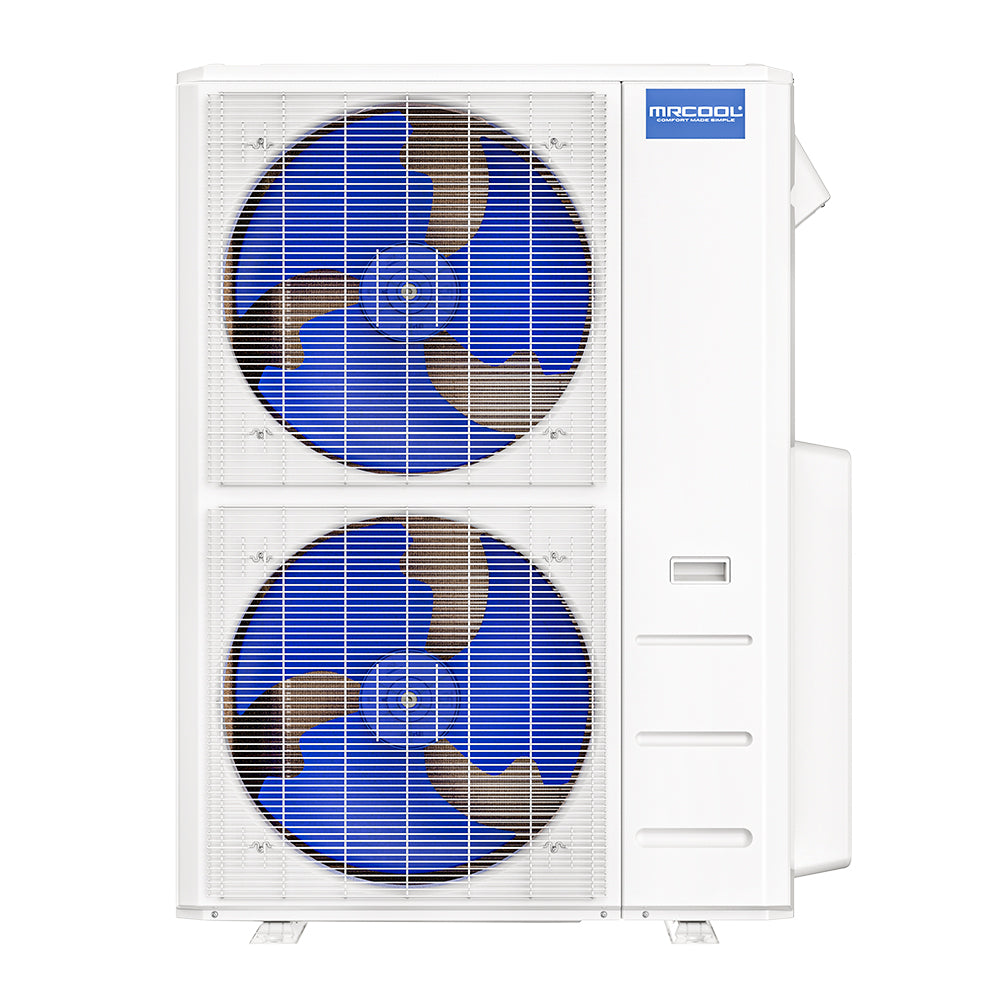

MRCOOL® DIY® 5th Gen 55K BTU Multi-Zone Ductless Mini-Split Condenser
The MRCOOL® DIY® 5th Generation 55K BTU Multi-Zone Condenser combines industry-leading efficiency with innovative technology, giving you powerful comfort you can install yourself—no HVAC professional required. Not only will you save time and money, but you’ll also enjoy the satisfaction of completing the installation on your own.
Whole-Home Coverage
Fast, Hassle-Free Installation
-
Patented Pre-Charged Quick-Connect® Line Sets (sold separately) are filled with eco-friendly R-454B refrigerant, skipping the evacuation and charging steps for a faster, simpler setup.
-
Achieves an impressive SEER2 of 22 and HSPF2-4 of 10.6, delivering exceptional efficiency and long-term energy savings.
Smart Comfort Control
-
Operate your system through the SmartHVAC app (iOS & Android) to set schedules, change modes, and monitor energy usage from anywhere.
-
Compatible with Amazon Alexa and Google Home for hands-free voice control.
Outstanding Warranty Protection
Efficient, convenient, and built for whole-home climate control—the MRCOOL® DIY® 55K BTU Multi-Zone Condenser is your key to year-round comfort without the high installation costs.
|
FEATURE LIST
|
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
|
|
SEER2
|
22
|
|
EER2
|
12
|
|
HSPF2-4
|
10.6
|
|
HSPF2-5
|
8.5
|
|
TONNAGE
|
4.6
|
|
COOLING CAPACITY (BTU)
|
47000
|
|
HEATING CAPACITY (BTU)
|
55000
|
|
VOLTAGE (V)
|
208/230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
45
|
|
MIN CIRCUIT AMPACITY (A)
|
43
|
|
COLOR
|
White
|
|
ZONE CAPACITY
|
6
|
|
REFRIGERANT TYPE
|
R-454B
|
|
REFRIGERANT VOLUME (OZ)
|
151.68
|
|
DECIBEL RATING (DBA)
|
64
|
|
INVERTER
|
DC
|
|
LINE SET LENGTH
|
25
|
|
MAX LINESET LENGTH (FT)
|
221.4
|
|
LIQUID LINE SIZE
|
1/4
|
|
SUCTION LINE SIZE
|
(3/8 X4) (1/2 X2)
|
|
COMPRESSOR MOTOR TYPE
|
Rotary
|
|
AUXILIARY HEATER INCLUDED
|
No
|
|
AUXILIARY HEATER AVAILABLE
|
No
|
|
FAN ONLY OPTION
|
Yes
|
|
QUIET MODE
|
Yes
|
|
AUTO COOL
|
Yes
|
|
WIFI COMPATIBILITY
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
WORKS WITH IOS
|
Yes
|
|
WORKS WITH ANDROID
|
Yes
|
|
UL LISTED
|
Yes
|
|
ETL LISTED
|
Yes
|
|
ENERGY STAR CERTIFIED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
REGISTERED WARRANTY
|
Extended Limited Lifetime*
|
|
BASE PARTS WARRANTY
|
5
|
|
BASE COMPRESSOR WARRANTY
|
7
|
|
HAS BATTERIES
|
Yes
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
NET DEPTH (IN)
|
16.34
|
|
NET HEIGHT (IN)
|
52.48
|
|
NET WIDTH (IN)
|
37.48
|
|
NET WEIGHT (LBS)
|
245.81
|
|
GROSS DEPTH (IN)
|
19.49
|
|
GROSS HEIGHT (IN)
|
58.27
|
|
GROSS WIDTH (IN)
|
43.11
|
|
GROSS WEIGHT (LBS)
|
267.46
|
|
