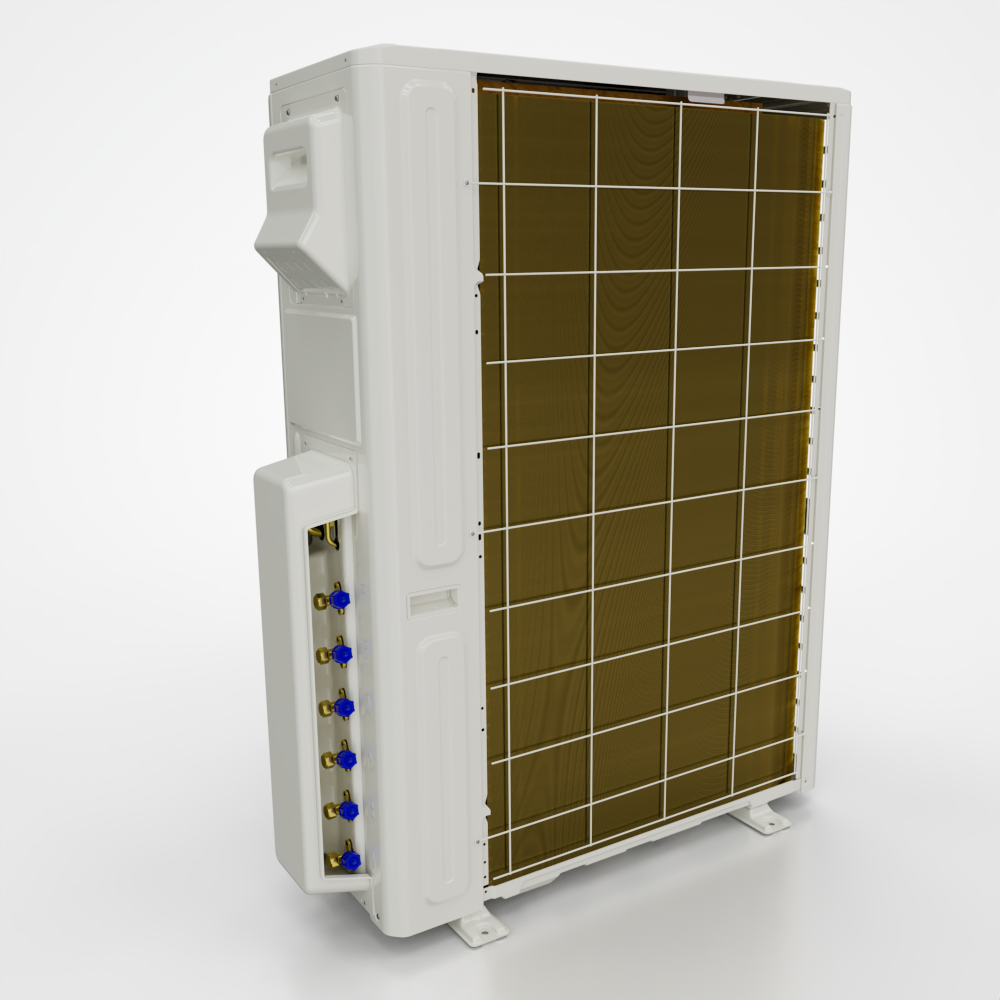

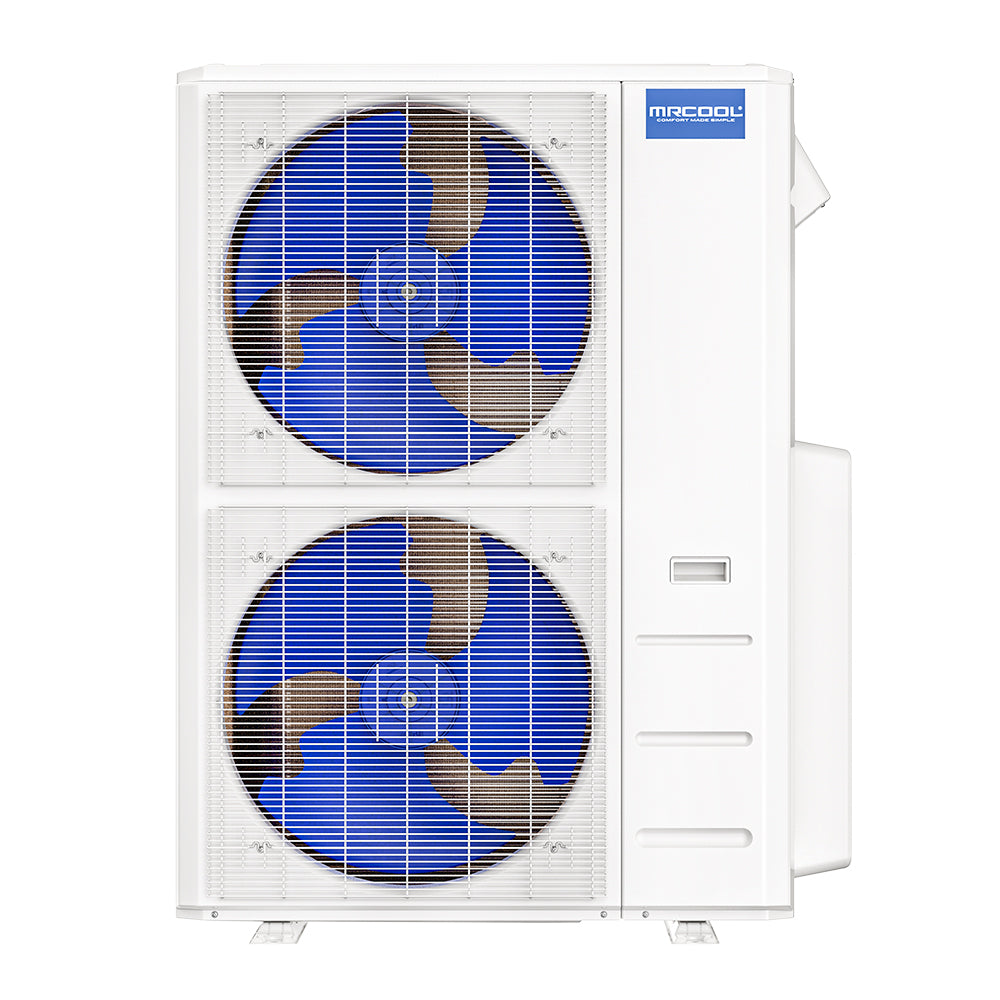

MRCOOL® DIY® 5th Gen 48K BTU Multi-Zone Ductless Mini-Split Condenser
Upgrade your home’s comfort with the MRCOOL® DIY® 5th Generation 48K BTU Multi-Zone Condenser—designed for maximum efficiency, convenience, and complete do-it-yourself installation. No HVAC technician required, saving you both time and money.
Whole-Home Climate Control
Quick Connect® Installation
-
Patented Pre-Charged Line Sets (sold separately) come filled with eco-friendly R-454B refrigerant, delivering higher efficiency and sustainability than previous generations.
-
Achieves 21.8 SEER2 and HSPF2-4 of 10 for year-round energy savings.
-
Eliminates the need for evacuation or charging, making setup fast and simple.
Smart Comfort at Your Fingertips
-
Control temperature, set schedules, and manage modes through the SmartHVAC app (iOS & Android).
-
Compatible with Amazon Alexa and Google Home for hands-free operation.
Trusted Warranty Protection
Efficient, powerful, and customizable—the MRCOOL® DIY® 48K BTU Multi-Zone Condenser delivers exceptional comfort for your whole home without the hassle.
|
FEATURE LIST
|
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
|
|
SEER2
|
21.8
|
|
EER2
|
12
|
|
HSPF2-4
|
10
|
|
HSPF2-5
|
7.8
|
|
TONNAGE
|
4
|
|
COOLING CAPACITY (BTU)
|
43000
|
|
HEATING CAPACITY (BTU)
|
48000
|
|
VOLTAGE (V)
|
208/230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
45
|
|
MIN CIRCUIT AMPACITY (A)
|
40
|
|
COLOR
|
White
|
|
ZONE CAPACITY
|
6
|
|
REFRIGERANT TYPE
|
R-454B
|
|
REFRIGERANT VOLUME (OZ)
|
148.15
|
|
DECIBEL RATING (DBA)
|
64
|
|
INVERTER
|
DC
|
|
LINE SET LENGTH
|
25
|
|
MAX LINESET LENGTH (FT)
|
221.4
|
|

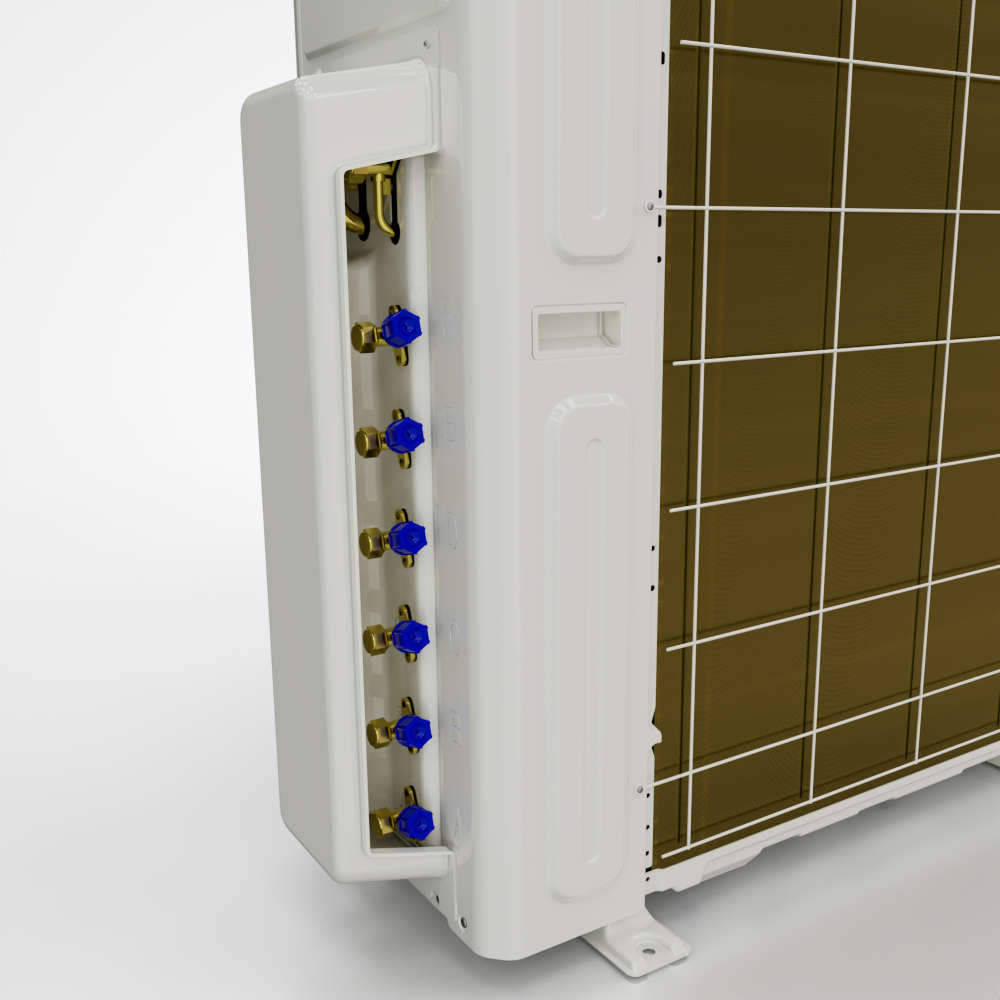

LIQUID LINE SIZE
|
1/4
|
|
SUCTION LINE SIZE
|
(3/8 X4) (1/2 X2)
|
|
COMPRESSOR MOTOR TYPE
|
Rotary
|
|
AUXILIARY HEATER INCLUDED
|
No
|
|
AUXILIARY HEATER AVAILABLE
|
No
|
|
FAN ONLY OPTION
|
Yes
|
|
QUIET MODE
|
Yes
|
|
AUTO COOL
|
Yes
|
|
WIFI COMPATIBILITY
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
WORKS WITH IOS
|
Yes
|
|
WORKS WITH ANDROID
|
Yes
|
|
UL LISTED
|
Yes
|
|
ETL LISTED
|
Yes
|
|
ENERGY STAR CERTIFIED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
REGISTERED WARRANTY
|
Extended Limited Lifetime*
|
|
BASE PARTS WARRANTY
|
5
|
|
BASE COMPRESSOR WARRANTY
|
7
|
|
HAS BATTERIES
|
Yes
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
NET DEPTH (IN)
|
16.34
|
|
NET HEIGHT (IN)
|
52.48
|
|
NET WIDTH (IN)
|
37.48
|
|
NET WEIGHT (LBS)
|
223.77
|
|
GROSS DEPTH (IN)
|
19.49
|
|
GROSS HEIGHT (IN)
|
58.27
|
|
GROSS WIDTH (IN)
|
43.11
|
|
GROSS WEIGHT (LBS)
|
256.39
|
|
