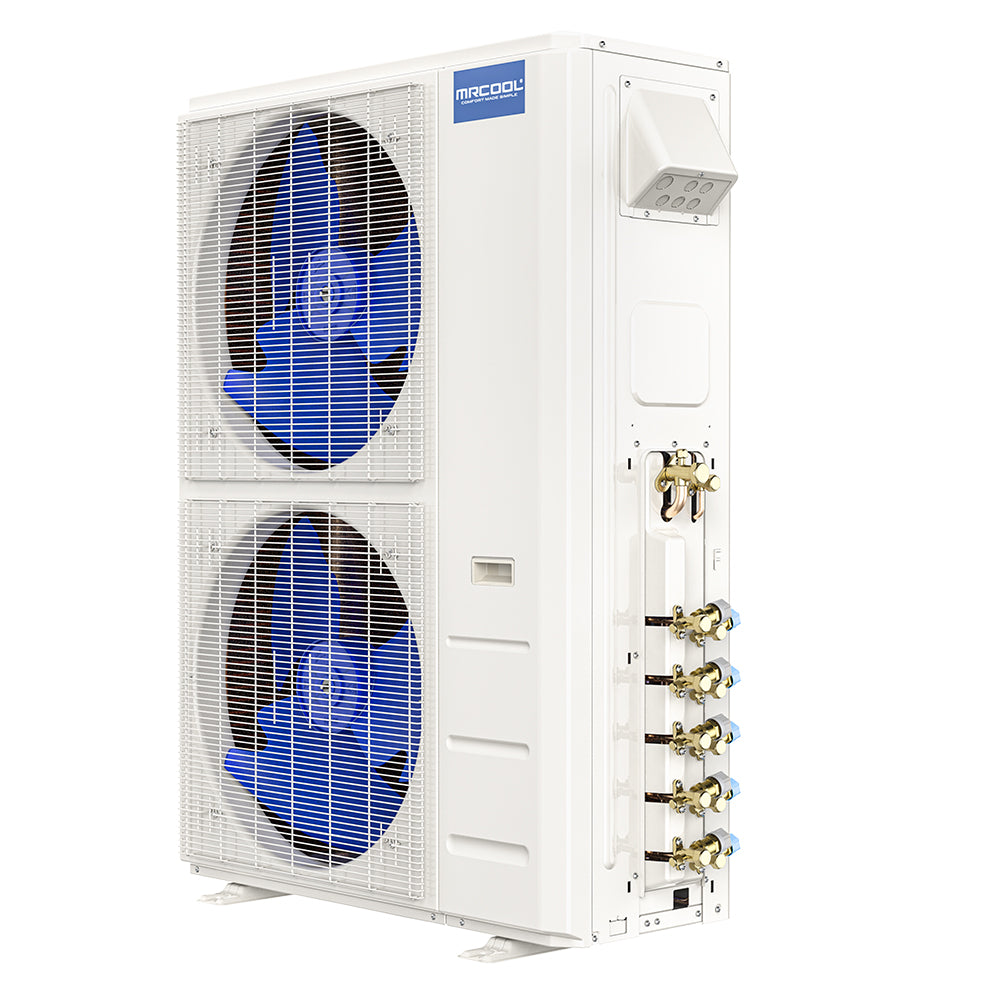

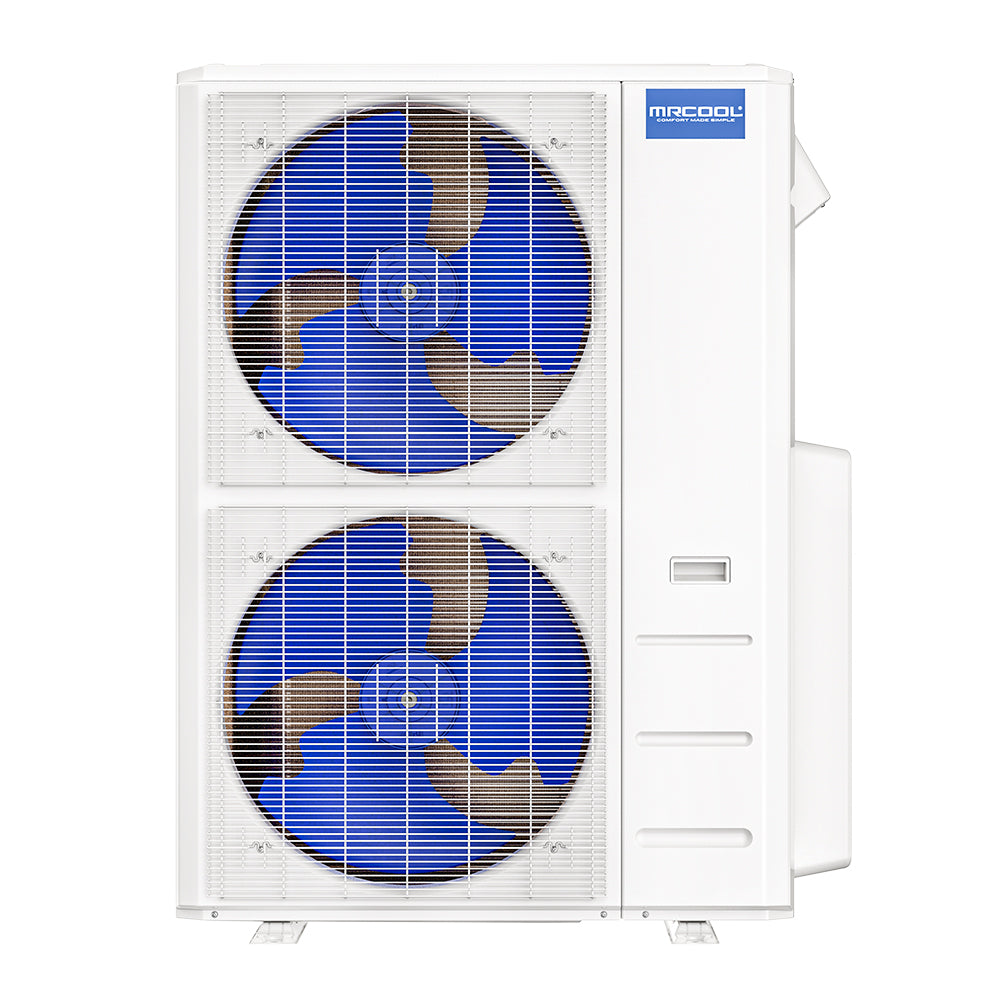

MRCOOL® DIY® 5th Gen 36K BTU Multi-Zone Ductless Mini-Split Condenser
Get powerful, whole-home comfort with the MRCOOL® DIY® 5th Generation 36K BTU Multi-Zone Condenser—designed for true do-it-yourself installation with no HVAC technician required. Offering top-tier efficiency and innovative features, this system can heat and cool up to 5 separate zones covering about 1,500 sq. ft., making it a potential single-system solution for your entire home.
Efficient, Eco-Friendly Performance
-
SEER2: 23 | HSPF2-4: 9.9 for excellent year-round efficiency.
-
Quick Connect® Line Sets (sold separately) come pre-charged with R-454B refrigerant—a more efficient and environmentally friendly alternative to R-410A.
-
Patented fittings eliminate the need for evacuation or charging, making installation fast, safe, and cost-effective.
Smart Comfort Control
-
Manage your system through the SmartHVAC app, adjusting temperatures, creating schedules for each zone, and monitoring energy usage from your phone.
-
Integrates with Amazon Alexa and Google Home for hands-free operation.
Warranty Coverage You Can Count On
Powerful, customizable, and easy to install—the MRCOOL® DIY® 36K BTU Multi-Zone Condenser delivers exceptional comfort with unmatched convenience.
|
FEATURE LIST
|
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
|
|
SEER2
|
23
|
|
EER2
|
12
|
|
HSPF2-4
|
9.9
|
|
HSPF2-5
|
7.5
|
|
TONNAGE
|
3
|
|
COOLING CAPACITY (BTU)
|
34000
|
|
HEATING CAPACITY (BTU)
|
36000
|
|
VOLTAGE (V)
|
208/230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
35
|
|
MIN CIRCUIT AMPACITY (A)
|
30.5
|
|
COLOR
|
White
|
|
ZONE CAPACITY
|
5
|
|
REFRIGERANT TYPE
|
R-454B
|
|
REFRIGERANT VOLUME (OZ)
|
104.75
|
|
DECIBEL RATING (DBA)
|
64
|
|
INVERTER
|
DC
|
|
LINE SET LENGTH
|
25
|
|
MAX LINESET LENGTH (FT)
|
221.4
|
|
LIQUID LINE SIZE
|
1/4
|
|
SUCTION LINE SIZE
|
(3/8 X4) (1/2 X1)
|
|
COMPRESSOR MOTOR TYPE
|
Rotary
|
|
AUXILIARY HEATER INCLUDED
|
No
|
|
AUXILIARY HEATER AVAILABLE
|
No
|
|
FAN ONLY OPTION
|
Yes
|
|
QUIET MODE
|
Yes
|
|
AUTO COOL
|
Yes
|
|
WIFI COMPATIBILITY
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
WORKS WITH IOS
|
Yes
|
|
WORKS WITH ANDROID
|
Yes
|
|
UL LISTED
|
Yes
|
|
ETL LISTED
|
Yes
|
|
ENERGY STAR CERTIFIED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
REGISTERED WARRANTY
|
Extended Limited Lifetime*
|
|
BASE PARTS WARRANTY
|
5
|
|
BASE COMPRESSOR WARRANTY
|
7
|
|
HAS BATTERIES
|
Yes
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
NET DEPTH (IN)
|
16.14
|
|
NET HEIGHT (IN)
|
31.89
|
|
NET WIDTH (IN)
|
37.24
|
|
NET WEIGHT (LBS)
|
169.24
|
|
GROSS DEPTH (IN)
|
19.69
|
|
GROSS HEIGHT (IN)
|
34.84
|
|
GROSS WIDTH (IN)
|
42.91
|
|
GROSS WEIGHT (LBS)
|
181.88
|
|
