Product Description

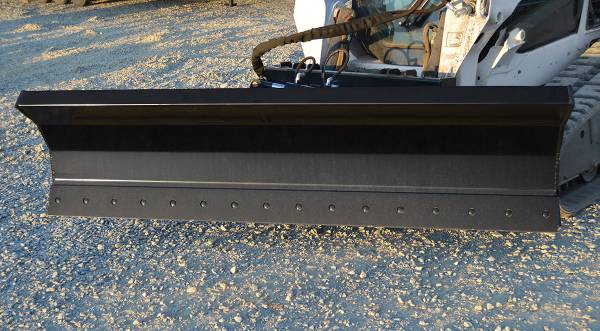

Loflin Fabrication | Dozer Blade | 83″ & 94″ Widths | Hydraulic Angle & Tilt | Skid Steer Compatible
Overview
The Loflin Fabrication Dozer Blade is a heavy-duty attachment built to maximize the grading, leveling, and pushing capabilities of your skid steer. Whether you’re moving dirt, gravel, or snow, this versatile blade is engineered for precision control and long-lasting performance in demanding work environments.
Key Features
-
6-Way Hydraulic Control – Easily adjust both angle and tilt for efficient grading and material handling.
-
Reversible Cutting Edge – 5/8″ x 6″ bolt-on edge flips for extended wear life and reduced maintenance costs.
-
Built Tough – Heavy-duty steel frame with reinforced quick attach ensures strength and durability.
-
Universal Fit – Designed for most skid steer loaders with a standard quick-attach system.
-
Two Width Options – Choose between 83″ or 94″ blades to match your machine and project needs.
-
Job-Site Ready – Outfitted with Parker brand hoses, fittings, and couplers for reliable hydraulic integration.
-
Optional Accessories – Replacement tilt/angle cylinders and wiring harnesses available.
-
USA-Made Quality – Built with precision welding and reinforced design for lasting performance.
Specifications
| Model |
Width |
Weight |
Adjustment Type |
Cutting Edge |
Compatibility |
| 1084 |
84″ |
730 lbs |
Hydraulic Angle & Tilt |
5/8″ x 6″ Bolt-On (Reversible) |
Skid Steers (Universal Mount) |
| 1096 |
96″ |
774 lbs |
Hydraulic Angle & Tilt |
5/8″ x 6″ Bolt-On (Reversible) |
Skid Steers (Universal Mount) |
| DB-40 |
– |
4 lbs |
Wiring Harness |
– |
Dozer Blade Control |
| 288-307 |
– |
10 lbs |
2″ x 4″ Hydraulic Cylinder |
– |
Tilt Function Replacement |
| LF2010-125-SP |
– |
14 lbs |
2″ x 10″ Hydraulic Cylinder |
– |
Angle Function Replacement |
