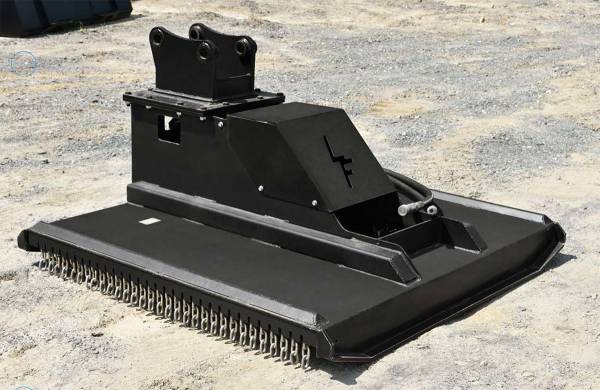

Loflin Fabrication Mini Excavator Brush Cutter
42" Width | 80cc–120cc Direct Drive & Piston Motor Options | For 3–10 Ton Mini Excavators
The Loflin Fabrication 42" Brush Cutter is built to deliver maximum cutting power, durability, and efficiency for demanding land clearing, forestry, and site prep applications. With its heavy-duty construction and advanced hydraulic drive system, this attachment makes short work of thick brush, overgrowth, and small trees—while providing smooth, precise operation.
High-Performance Design
-
Direct Drive System – Gear-free design reduces maintenance and ensures efficient power transfer.
-
Bi-Directional Blades – Fully reversible forged steel blades cut in both directions, saving time and boosting productivity.
-
Motor Options – Choose from 80cc, 100cc, or 120cc Geroller hydraulic motors, or upgrade to a severe-duty 80cc piston motor for high-flow excavators.
-
Optimized Cutting Speed – Pressure relief-equipped motors maintain consistent torque and tip speed in challenging conditions.
Built to Last
-
Heavy-Duty Construction – Reinforced steel deck, one-piece cast iron housing, and a forged steel axle for long-term durability.
-
Sealed Bearing System – Oversized, grease-packed tapered roller bearings with wire-protected seals prevent leaks and extend service intervals.
-
Fully Enclosed Motor Assembly – Shields the drive system from dust, debris, and impacts.
-
Powder-Coated Finish – Corrosion-resistant coating stands up to harsh environments.
Ready for the Jobsite
-
42” Cutting Width – Wide path clearing while maintaining control on compact excavators.
-
Universal Mounting – Comes with a blank mount plate, customizable to fit multiple excavator models.
-
Jobsite-Ready Setup – Outfitted with Parker hoses, fittings, and couplers for easy installation.
-
Versatile Flow Compatibility – Works with both low- and high-flow hydraulic systems, ideal for 3–10 ton machines.

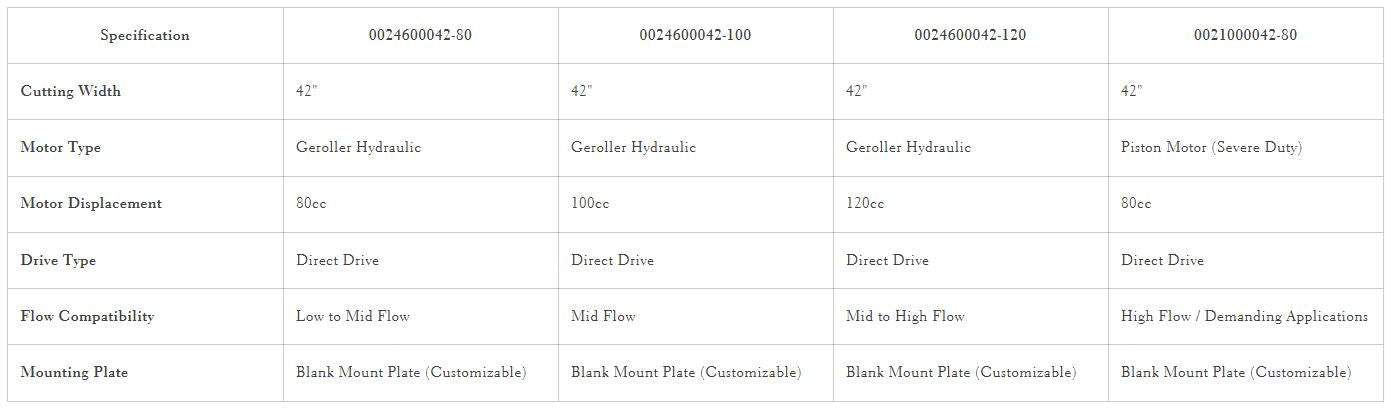

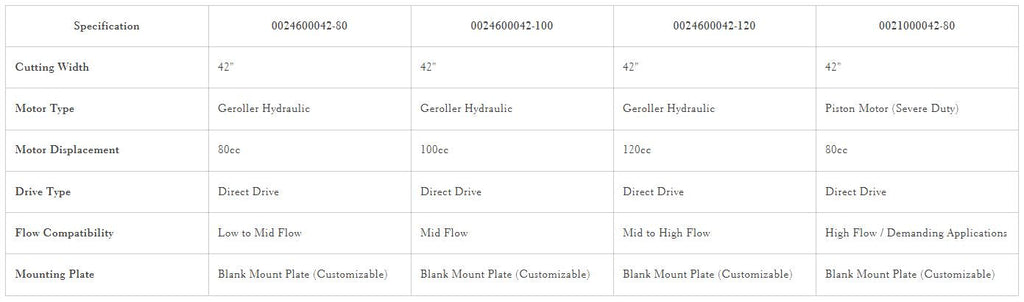

Specifications
Geroller Hydraulic Motor Models
| Model |
Width |
Motor Type |
Displacement |
Drive Type |
Flow Range |
Mount Plate |
| 0024600042-80 |
42" |
Geroller Hydraulic |
80cc |
Direct Drive |
Low–Mid Flow |
Blank Mount Plate (Customizable) |
| 0024600042-100 |
42" |
Geroller Hydraulic |
100cc |
Direct Drive |
Mid Flow |
Blank Mount Plate (Customizable) |
| 0024600042-120 |
42" |
Geroller Hydraulic |
120cc |
Direct Drive |
Mid–High Flow |
Blank Mount Plate (Customizable) |
Severe Duty Piston Motor Model
| Model |
Width |
Motor Type |
Displacement |
Drive Type |
Flow Range |
Mount Plate |
| 0021000042-80 |
42" |
Piston Motor (Severe Duty) |
80cc |
Direct Drive |
High Flow / Demanding Applications |
Blank Mount Plate (Customizable) |
