Product Description
Loflin Fabrication | 4-N-1 Bucket | 36″–54″ Width | Dual 2″ x 6″ Cylinders | Hydraulic Flow 14–43 GPM | 18–35 HP | For Mini Skid Steers & Compact Tractors
Overview

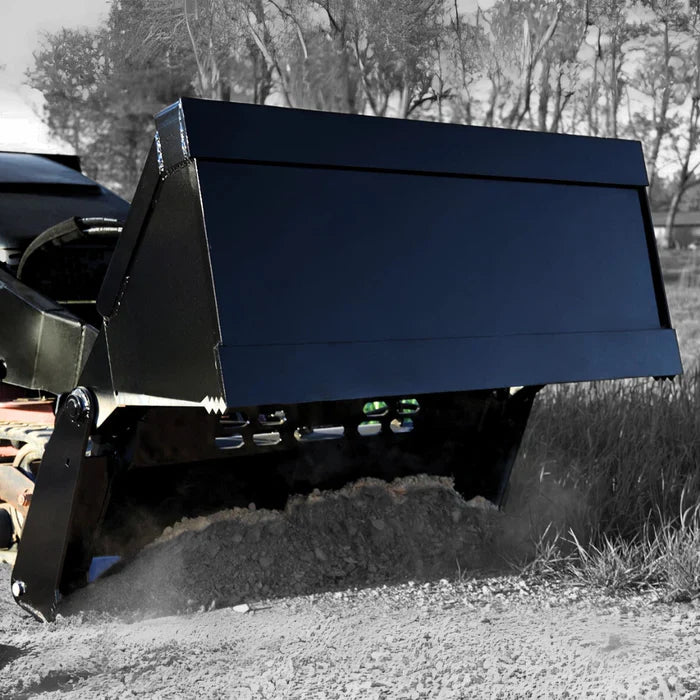

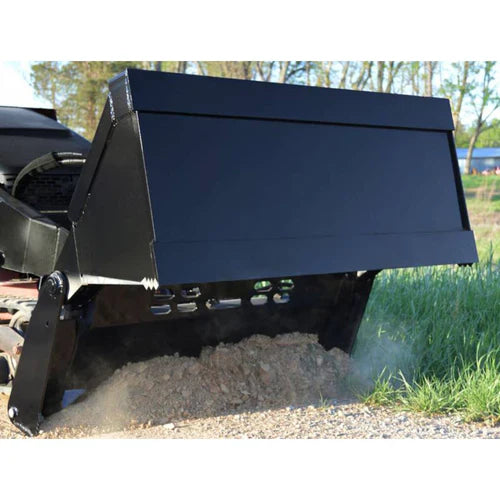

The Loflin Fabrication 4-N-1 Bucket is a multi-purpose attachment designed to replace multiple tools with one versatile solution. Built for mini skid steers and compact tractors, this bucket can scoop, doze, grapple, and backfill, making it ideal for landscaping, construction, and property maintenance.
Key Features
-
Four Functions in One – Works as a bucket, grapple, dozer, and box blade.
-
Dual 2″ x 6″ Cylinders – Provides strong clamping power and smooth hydraulic operation.
-
Rugged Build – ¼″ reinforced floor plate and ¼″ steel side plates for long-term durability.
-
Heavy-Duty Edges – ½″ x 4″ front edge and heat-treated rear edge for maximum wear resistance.
-
Adaptable Options – Bolt-on cutting edges, tooth bars, and removable teeth available.
-

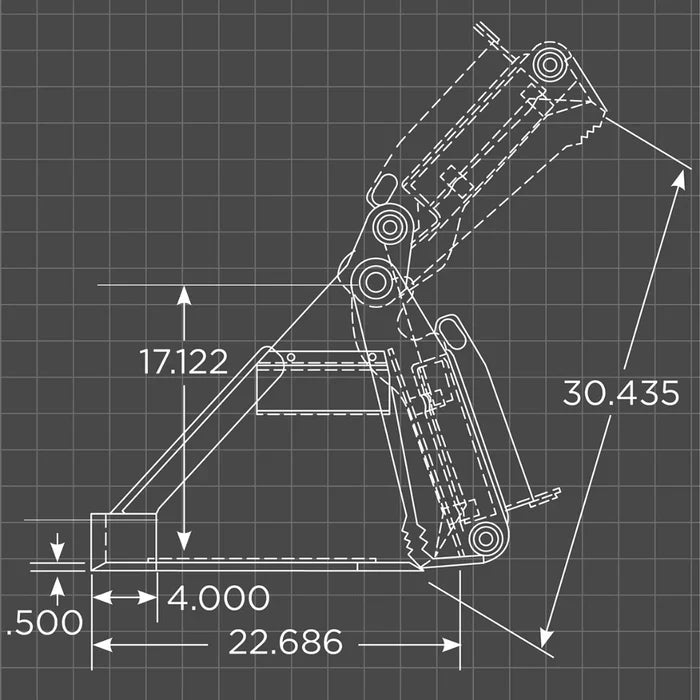

Wide Opening – 30 7⁄16″ opening handles a variety of materials with ease.
-
Quick Attach Ready – Reinforced mounts compatible with Toro Dingo, Bobcat MT50, and compact tractors.
-
Hydraulic Components Included – Parker brand hoses, fittings, and couplers for jobsite readiness.
-
Size Choices – Available in 36″, 42″, 48″, and 54″ widths.
-
Powder-Coated Finish – Corrosion-resistant and built to maintain a professional look.
-
Made in the USA – Manufactured with American steel for unmatched reliability.
Specifications
| Feature |
Specification |
| Functions |
Scoop, Doze, Grapple, Backfill |
| Cylinders |
Two 2″ x 6″ hydraulic |
| Cutting Edges |
½″ thick x 4″ wide (front & rear, heat-treated) |
| Side Plate Thickness |
¼″ steel |
| Floor Plate Thickness |
¼″ reinforced steel |
| Opening Width |
30 7⁄16″ |
| Hydraulic Components |
Parker hoses, fittings, couplers |
| Width Options |
36″, 42″, 48″, 54″ |
| Mount Compatibility |
Toro Dingo, Bobcat MT50, Compact Tractors, Custom Mounts |
| Optional Upgrades |
Tooth bar, bolt-on edge, removable teeth |
| Finish |
Powder-coated |
| Country of Origin |
USA |
