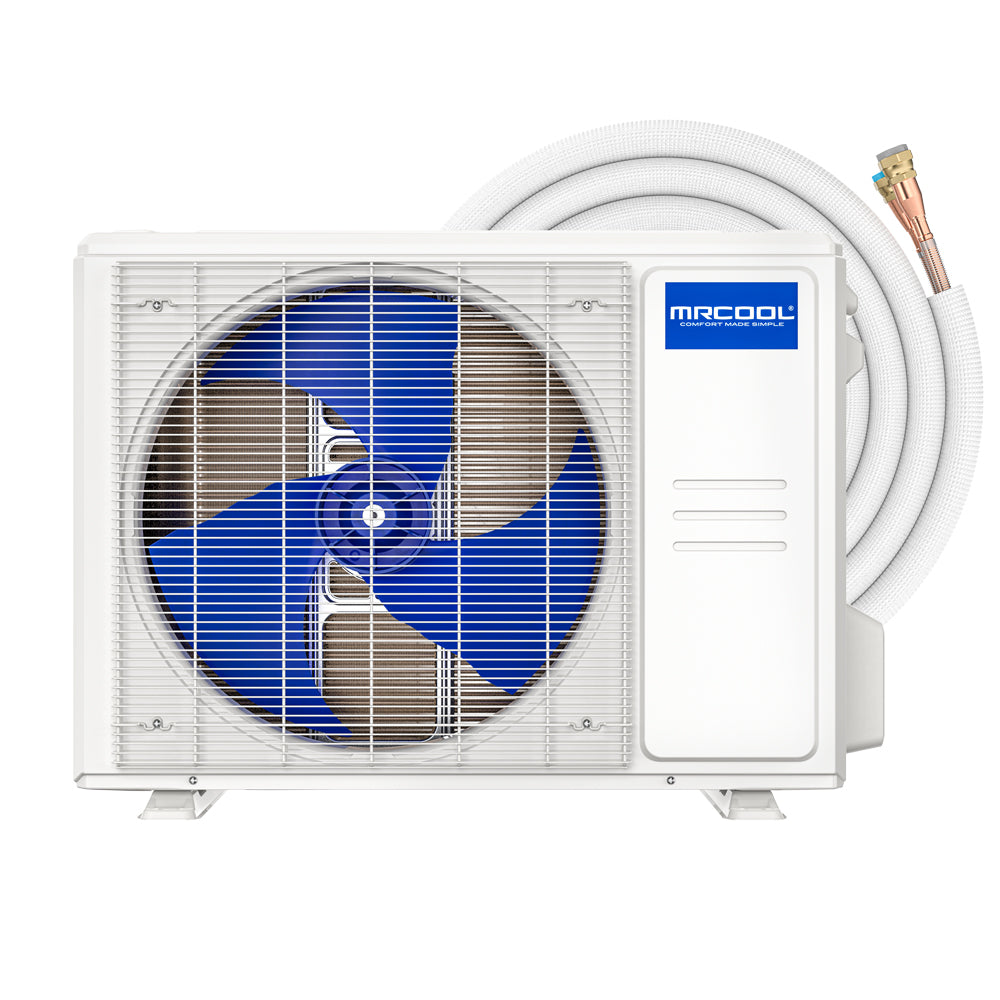

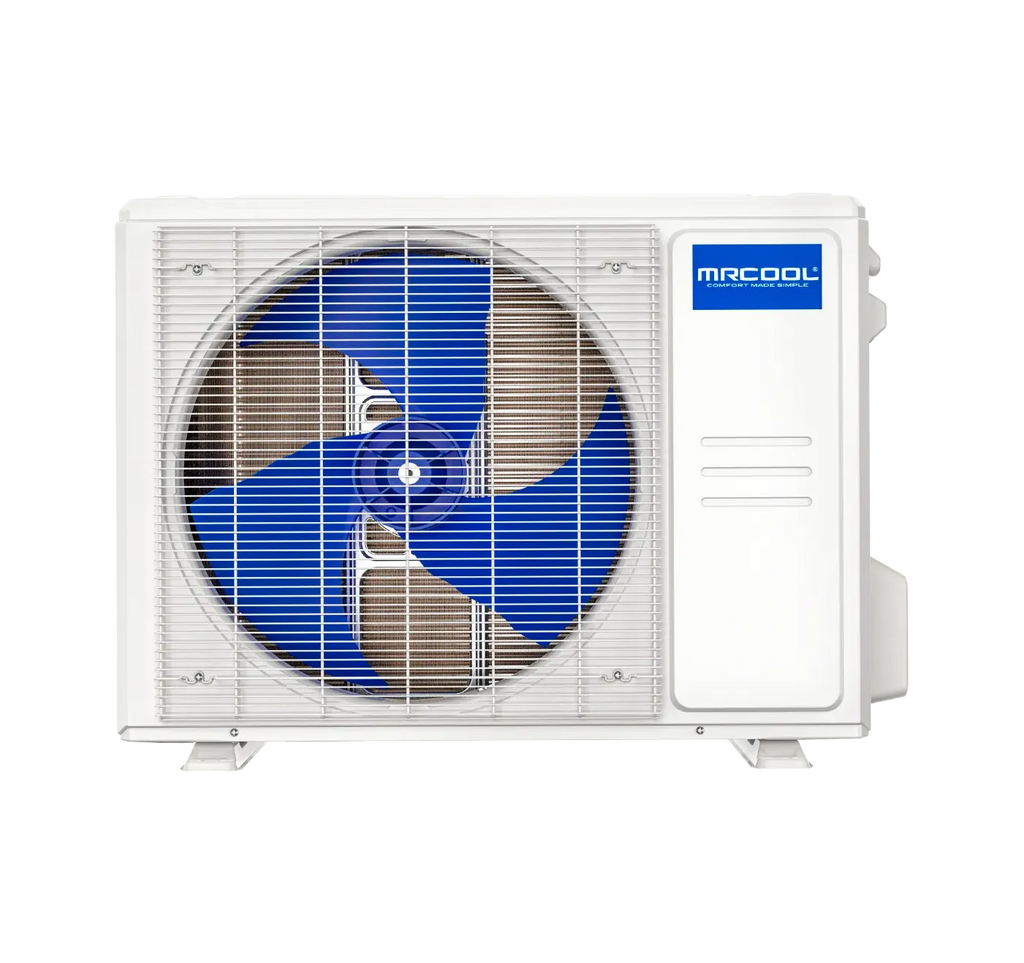

MRCOOL® Easy Pro™ Series 24K BTU Mini-Split Heat Pump Condenser
Get exceptional comfort at an unbeatable price with the MRCOOL® Easy Pro™ 24K BTU Mini-Split Heat Pump Condenser. Perfect for spaces up to 1,050 sq. ft., this system delivers efficient heating and cooling while saving you money from day one.
DIY-Friendly Installation
No HVAC technician is required—the unit comes with a 16' pre-charged Fast Connection® line set that links together quickly, easily, and safely. With its 18.9 SEER2 efficiency and 8.7 HSPF2-4 rating, you’ll continue saving on energy costs for years to come.
Convenient & Smart Control
-
WiFi connectivity for smartphone operation at the touch of a button.
-
Low Ambient Cooling allows year-round use, even when outdoor temperatures drop to 5°F—ideal for greenhouses, server rooms, or other continuous-cooling needs.
-
Whisper-quiet operation at just 61 dB(A) keeps comfort peaceful.
-
Auto Restart automatically restores your previous settings after a power outage.
Reliable Warranty Protection
For dependable, energy-efficient comfort that’s easy to install and easy on your wallet, the MRCOOL® Easy Pro™ 24K BTU condenser is the perfect choice.
|
FEATURE LIST
|
- Easy DIY installation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
|
|
SEER2
|
18.9
|
|
EER2
|
9.7
|
|
HSPF2-4
|
8.7
|
|
HSPF2-5
|
6.9
|
|
TONNAGE
|
2
|
|
COOLING CAPACITY (BTU)
|
24000
|
|
HEATING CAPACITY (BTU)
|
25000
|
|
VOLTAGE (V)
|
208/230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
20
|
|
MIN CIRCUIT AMPACITY (A)
|
19
|
|
COLOR
|
White
|
|
ZONE CAPACITY
|
1
|
|
REFRIGERANT TYPE
|
R-454B
|
|
REFRIGERANT VOLUME (OZ)
|
50.44
|
|
DECIBEL RATING HIGH (DBA)
|
61
|
|
INVERTER
|
DC
|
|
MIN AMBIENT COOL (F)
|
5
|
|
LINESET INCLUDED
|
Yes
|
|
LINE SET LENGTH
|
16ft
|
|
MAX LINESET LENGTH (FT)
|
164
|
|
LIQUID LINE SIZE
|
3/8
|
|
SUCTION LINE SIZE
|
5/8
|
|
COMPRESSOR MOTOR TYPE
|
Rotary
|
|
WORKS WITH IOS
|
Yes
|
|
WORKS WITH ANDROID
|
Yes
|
|
UL LISTED
|
Yes
|
|
CSA LISTED
|
Yes
|
|
ETL LISTED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
REGISTERED WARRANTY
|
Extended Limited Lifetime*
|
|
BASE PARTS WARRANTY
|
1 Year
|
|
BASE COMPRESSOR WARRANTY
|
2 Years
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
NET DEPTH (IN)
|
13.46
|
|
NET HEIGHT (IN)
|
26.5
|
|
NET WIDTH (IN)
|
35.04
|
|
NET WEIGHT (LBS)
|
95.9
|
|
GROSS DEPTH (IN)
|
15.67
|
|
GROSS HEIGHT (IN)
|
29.13
|
|
GROSS WIDTH (IN)
|
39.17
|
|
GROSS WEIGHT (LBS)
|
117.73
|
|
