Name: MRCOOL® Advantage 5th Gen 9k BTU 230V Condenser (A-09-HP-C-230D-O)
Brand: Mr. Cool
SKU: A-09-HP-C-230D-O
Price: 517.00 USD
Availability: InStock

MRCOOL® Advantage 5th Gen 9k BTU 230V Condenser (A-09-HP-C-230D-O)

Roll over image to zoom in Click on image to zoom

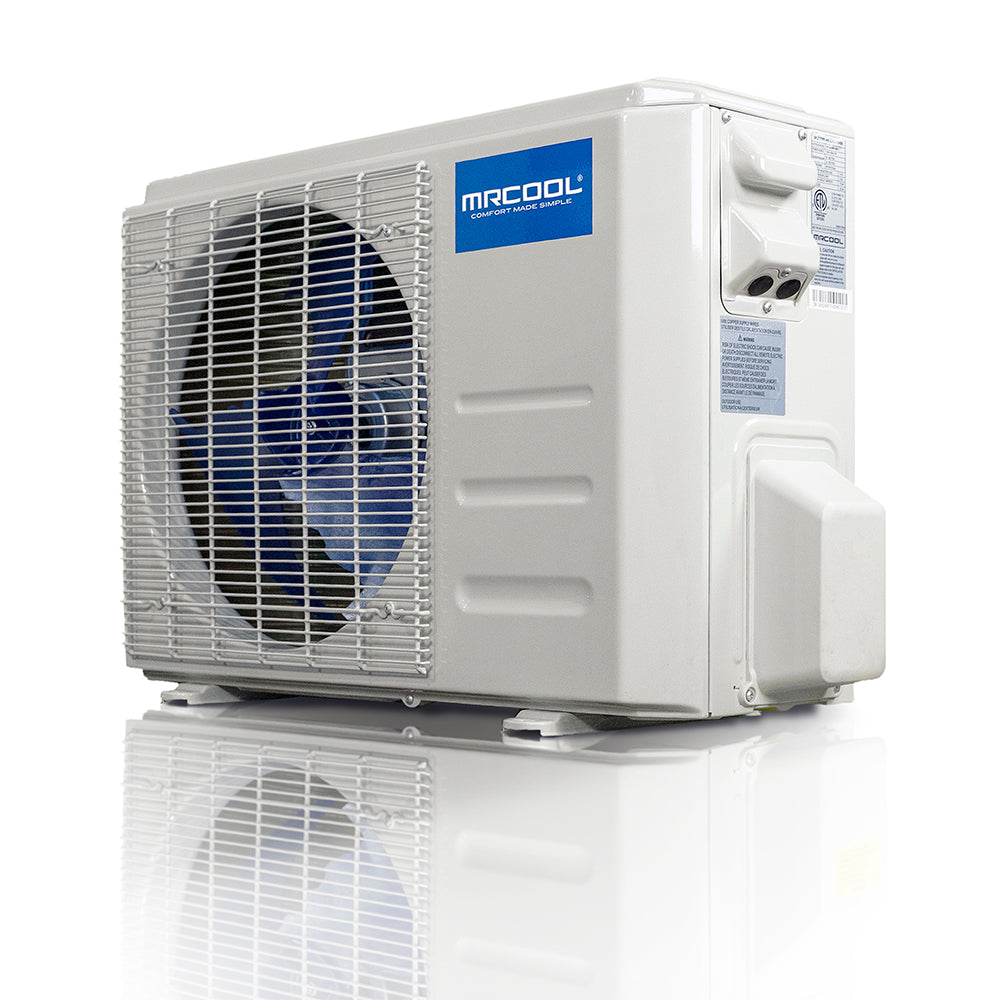

MRCOOL® 5th Gen 9K BTU 230V Advantage Condenser
The MRCOOL® 5th Generation 9K BTU 230V Advantage Condenser is a sustainable, cost-effective system designed to deliver the comfort you deserve. Offering up to 21.2 SEER2 and 9.1 HSPF2-4, it combines advanced performance with energy efficiency.

Requiring professional HVAC installation, this unit features R-454B refrigerant, an environmentally friendly upgrade from R-410A. With nearly 80% lower Global Warming Potential (GWP), R-454B reduces your carbon footprint while maintaining optimal efficiency throughout the system’s lifespan.

Ideal for spaces up to 400 sq. ft., the Advantage 9K operates quietly and comes packed with user-friendly features. The included Wi-Fi module allows easy control from your smartphone or through Amazon Alexa and Google Assistant—so you can adjust your comfort without lifting a finger.

Warranty Coverage

1-Year Parts Warranty
2-Year Compressor Warranty (with registration)

Efficient, quiet, and feature-rich, the MRCOOL® 9K BTU Advantage Condenser delivers eco-conscious, dependable comfort for your home.

FEATURE LIST	Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion Includes features such as timer mode, refrigerant leakage detection, and more Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. R-454B refrigerant AHRI certified NEEP ccASHP Listed CEE Tier1 - North
SEER2	21.2
EER2	12.6
HSPF2-4	9.1
HSPF2-5	7
TONNAGE	0.75
COOLING CAPACITY (BTU)	9000
HEATING CAPACITY (BTU)	10000
VOLTAGE (V)	208-230
PHASE	1
CYCLE	60
MAX FUSE BREAKER (A)	15
MIN CIRCUIT AMPACITY (A)	12
ZONE CAPACITY	1
REFRIGERANT TYPE	R-454B
REFRIGERANT VOLUME (OZ)	21.52
DECIBEL RATING (DBA)	53.5
INVERTER	DC
MAX LINESET LENGTH (FT)	82
LIQUID LINE SIZE	1/4
SUCTION LINE SIZE	3/8
COMPRESSOR MOTOR TYPE	ROTARY
OVERLOAD PROTECTION	Yes
APP COMPATIBILITY	Yes
WORKS WITH IOS	Yes
WORKS WITH ANDROID	Yes
UL LISTED	Yes
CSA LISTED	Yes
ETL LISTED	Yes
ENERGY STAR CERTIFIED	Yes
AHRI CERTIFIED	Yes
REGISTERED WARRANTY	Extended Limited Lifetime*
BASE PARTS WARRANTY	1 Year
BASE COMPRESSOR WARRANTY	2 Years
HAS BATTERIES	Yes
CONTAINS CHEMICALS	Yes
CONTAINS COMPRESSED GAS	Yes
PROPOSITION 65 WARNING	Yes
NET DEPTH (IN)	11.93
NET HEIGHT (IN)	21.85
NET WIDTH (IN)	30.12
NET WEIGHT (LBS)	54.23
GROSS DEPTH (IN)	13.27
GROSS HEIGHT (IN)	24.02
GROSS WIDTH (IN)	34.92
GROSS WEIGHT (LBS)	59.74

BROCHURE	Open
INSTALL MANUAL	Open
SPECS	Open
REMOTE MANUAL	Open
SERVICE MANUAL	Open
WARRANTY DOC	Open
ACCESSORY MANUAL 1	Open
FRENCH INSTALL MANUAL	Open
FRENCH REMOTE MANUAL	Open
FRENCH WARRANTY DOCUMENT	Open
FRENCH ACCESSORY	Open
SPANISH REMOTE	Open
AHRI CERTS	Open
ENERGY GUIDE CERTS	Open
