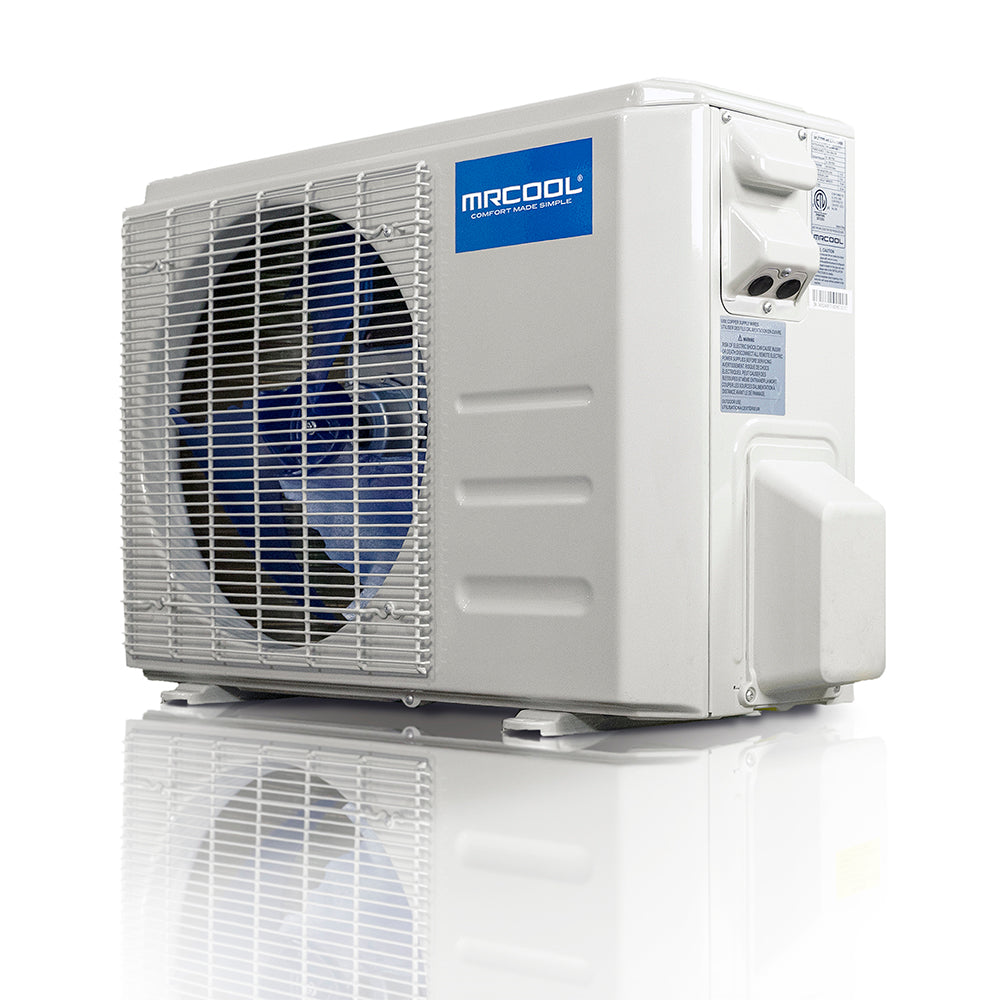

MRCOOL® 5th Gen 36K BTU 230V Advantage Condenser
Upgrade your home comfort with the MRCOOL® 5th Generation 36K BTU 230V Advantage Condenser. Designed for professional HVAC installation, this ductless mini-split offers a quicker, more cost-effective setup than most traditional HVAC systems. Ideal for spaces up to 1,550 sq. ft., it delivers powerful, dependable heating and cooling while keeping energy costs in check.
With a SEER2 rating of 18 and HSPF2-4 rating of 8.5, you can maintain your ideal indoor temperature without worrying about high utility bills. This model uses R-454B refrigerant, an eco-friendly upgrade from R-410A, offering 80% lower Global Warming Potential (GWP) for a more sustainable, energy-efficient operation.
Convenience is built in with the included Wi-Fi module, allowing you to control your system from your smartphone or through Amazon Alexa and Google Home—giving you hands-free temperature control at any time.
Warranty Coverage
Efficient, environmentally friendly, and easy to control, the MRCOOL® 36K BTU Advantage Condenser delivers the large-space comfort you deserve.
FEATURE LIST
|
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
|
SEER2
|
18
|
EER2
|
9
|
HSPF2-4
|
8.5
|
HSPF2-5
|
6.8
|
TONNAGE
|
3
|
COOLING CAPACITY (BTU)
|
36000
|
HEATING CAPACITY (BTU)
|
36000
|
VOLTAGE (V)
|
208-230
|
PHASE
|
1
|
CYCLE
|
60
|
MAX FUSE BREAKER (A)
|
35
|
MIN CIRCUIT AMPACITY (A)
|
33
|
ZONE CAPACITY
|
1
|
REFRIGERANT TYPE
|
R-454B
|
REFRIGERANT VOLUME (OZ)
|
112.88
|
DECIBEL RATING (DBA)
|
60.5
|
INVERTER
|
DC
|
MAX LINESET LENGTH (FT)
|
213.2
|
LIQUID LINE SIZE
|
3/8
|
SUCTION LINE SIZE
|
5/8
|
COMPRESSOR MOTOR TYPE
|
ROTARY
|
OVERLOAD PROTECTION
|
Yes
|
APP COMPATIBILITY
|
Yes
|
WORKS WITH IOS
|
Yes
|
WORKS WITH ANDROID
|
Yes
|
UL LISTED
|
Yes
|
CSA LISTED
|
Yes
|
ETL LISTED
|
Yes
|
ENERGY STAR CERTIFIED
|
No
|
AHRI CERTIFIED
|
Yes
|
REGISTERED WARRANTY
|
Extended Limited Lifetime*
|
BASE PARTS WARRANTY
|
1 Year
|
BASE COMPRESSOR WARRANTY
|
2 Years
|
HAS BATTERIES
|
Yes
|
CONTAINS CHEMICALS
|
Yes
|
CONTAINS COMPRESSED GAS
|
Yes
|
PROPOSITION 65 WARNING
|
Yes
|
NET DEPTH (IN)
|
16.14
|
NET HEIGHT (IN)
|
31.89
|
NET WIDTH (IN)
|
37.24
|
NET WEIGHT (LBS)
|
150.35
|
GROSS DEPTH (IN)
|
19.68
|
GROSS HEIGHT (IN)
|
34.84
|
GROSS WIDTH (IN)
|
42.91
|
GROSS WEIGHT (LBS)
|
160.27
|
