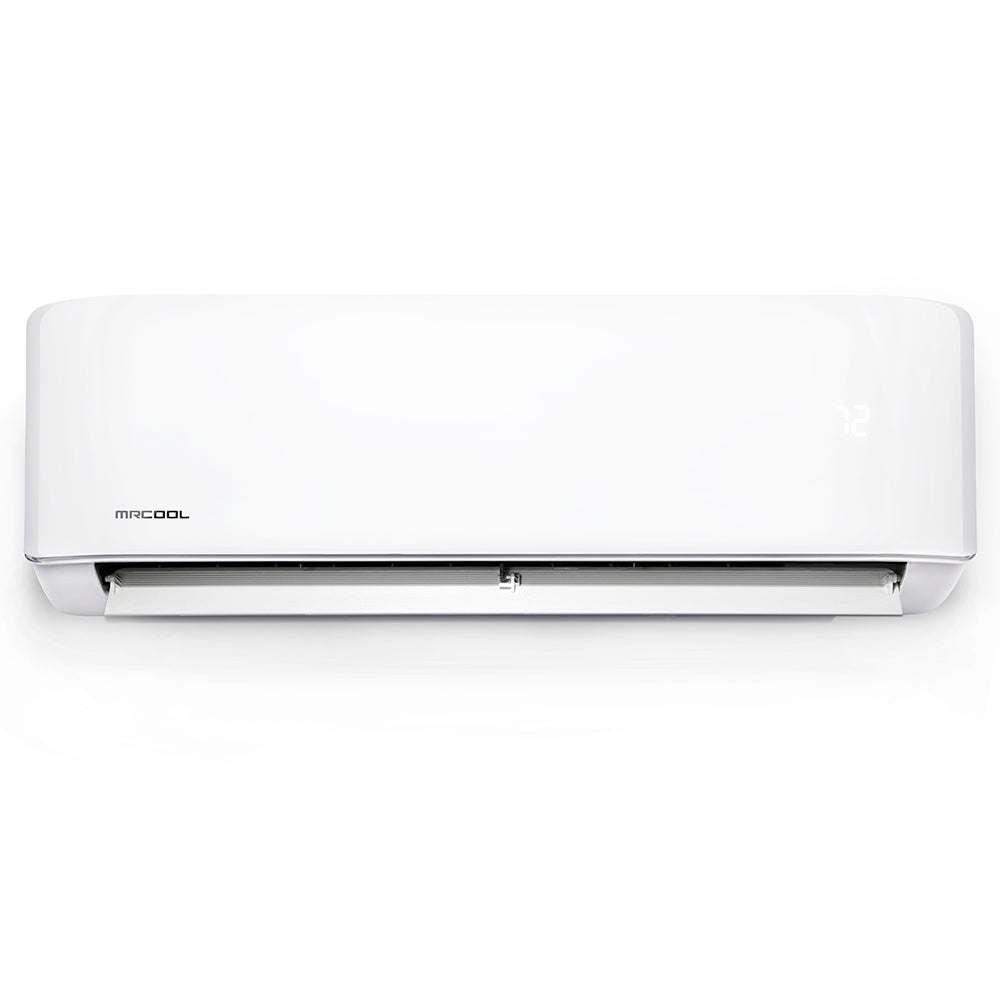

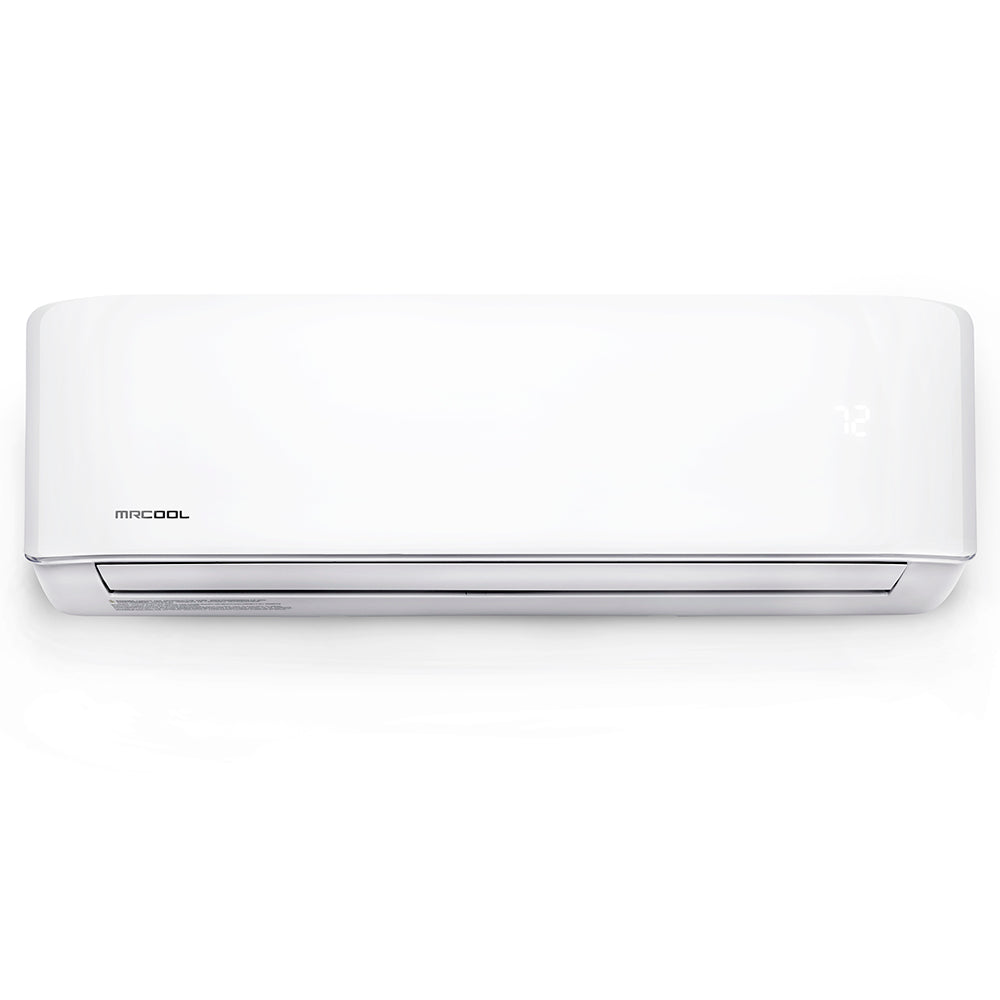

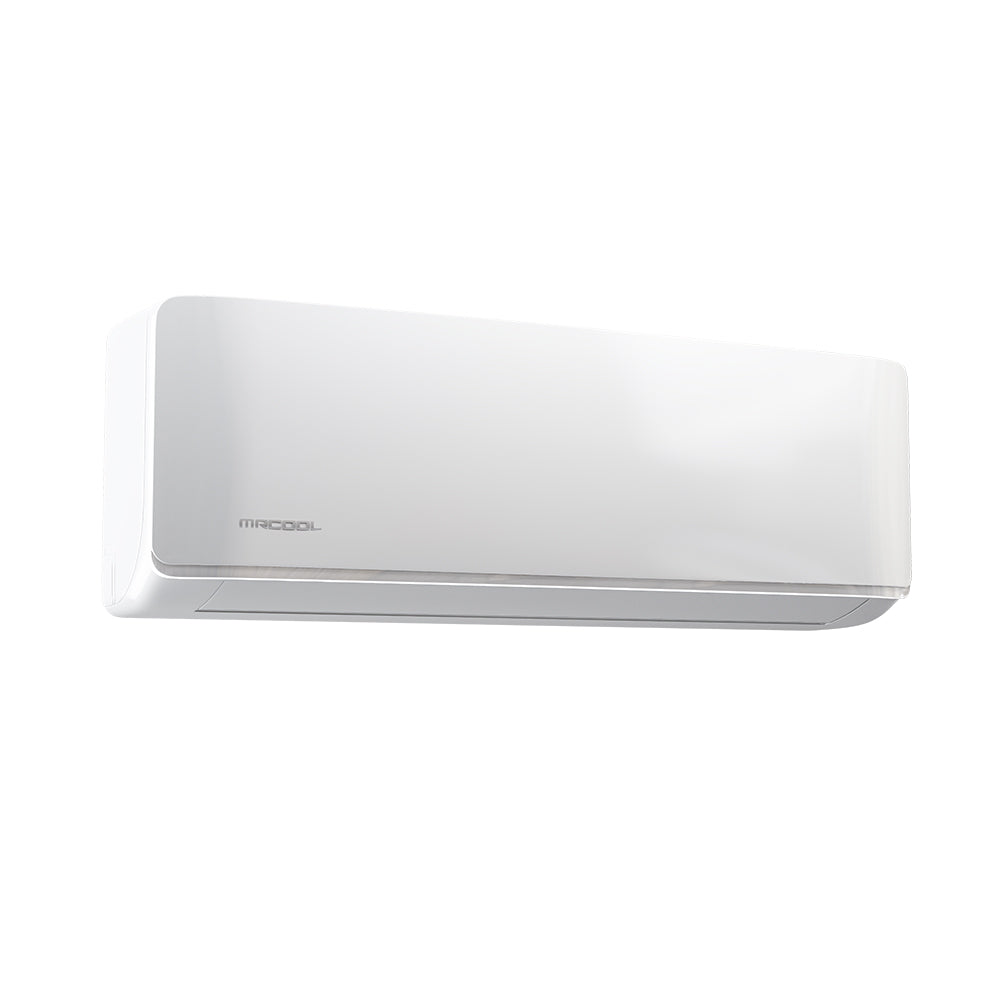

MRCOOL® 5th Gen 36K BTU Advantage Series Air Handler
Enjoy powerful, year-round climate control with the MRCOOL® 5th Generation 36K BTU Advantage Air Handler, now upgraded with R-454B refrigerant—an eco-friendly solution that boosts energy efficiency, reduces greenhouse gas emissions, and offers a lower Global Warming Potential (GWP). Designed for larger spaces, this ductless mini-split provides whisper-quiet heating and cooling, delivering both performance and affordability in one package.
The sleek Advantage indoor unit ensures consistent comfort across your home, while built-in Wi-Fi lets you adjust settings remotely and schedule automatic nighttime temperature adjustments for optimal energy savings. This smart control capability keeps your home comfortable while helping reduce utility costs.
Warranty Coverage
-
1-Year Parts Warranty
-
2-Year Compressor Warranty
-
1-Year Remote Control Warranty (with registration)
-
Limited Lifetime Warranty with MRCOOL® Care Program enrollment
Combining efficiency, durability, and convenience, the MRCOOL® Advantage Air Handler offers dependable comfort that’s easy to manage—perfect for homeowners who want eco-conscious climate control without compromise.
|
FEATURE LIST |
|
|
CFM |
882.9 / 732.8 / 518.0 / 400.2 / / |
|
TONNAGE |
3 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
DECIBEL RATING (DBA) |
44.5 |
|
DECIBEL RATING LOW (DBA) |
28 |
|
DECIBEL RATING HIGH (DBA) |
56.5 |
|
NUMBER OF SPEEDS |
5 |
|
MAX LINESET LENGTH (FT) |
213.2 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
FILTER TYPE |
Reusable |
|
OVERLOAD PROTECTION |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
11.1 |
|
NET HEIGHT (IN) |
14.25 |
|
NET WIDTH (IN) |
49.57 |
|
NET WEIGHT (LBS) |
40.34 |
|
GROSS DEPTH (IN) |
17.72 |
|
GROSS HEIGHT (IN) |
15.16 |
|
GROSS WIDTH (IN) |
52.76 |
|
GROSS WEIGHT (LBS) |
54.01 |
