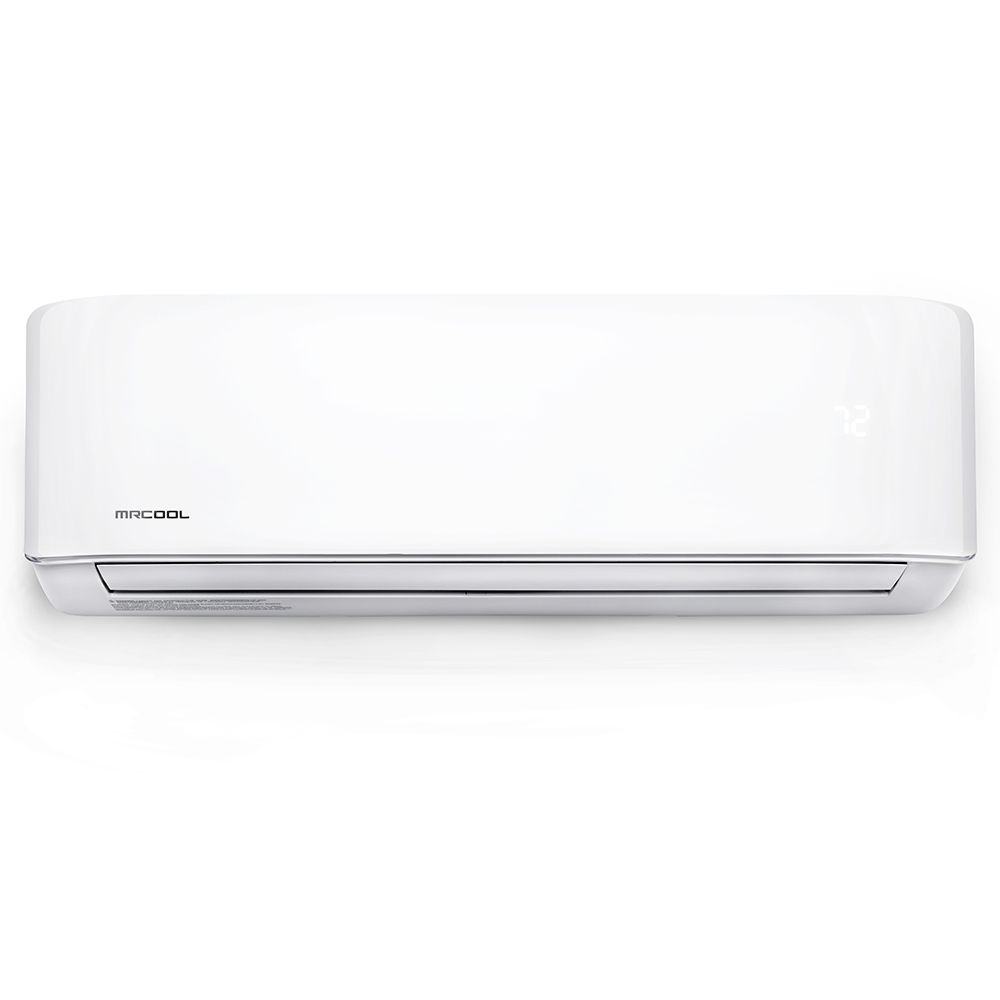

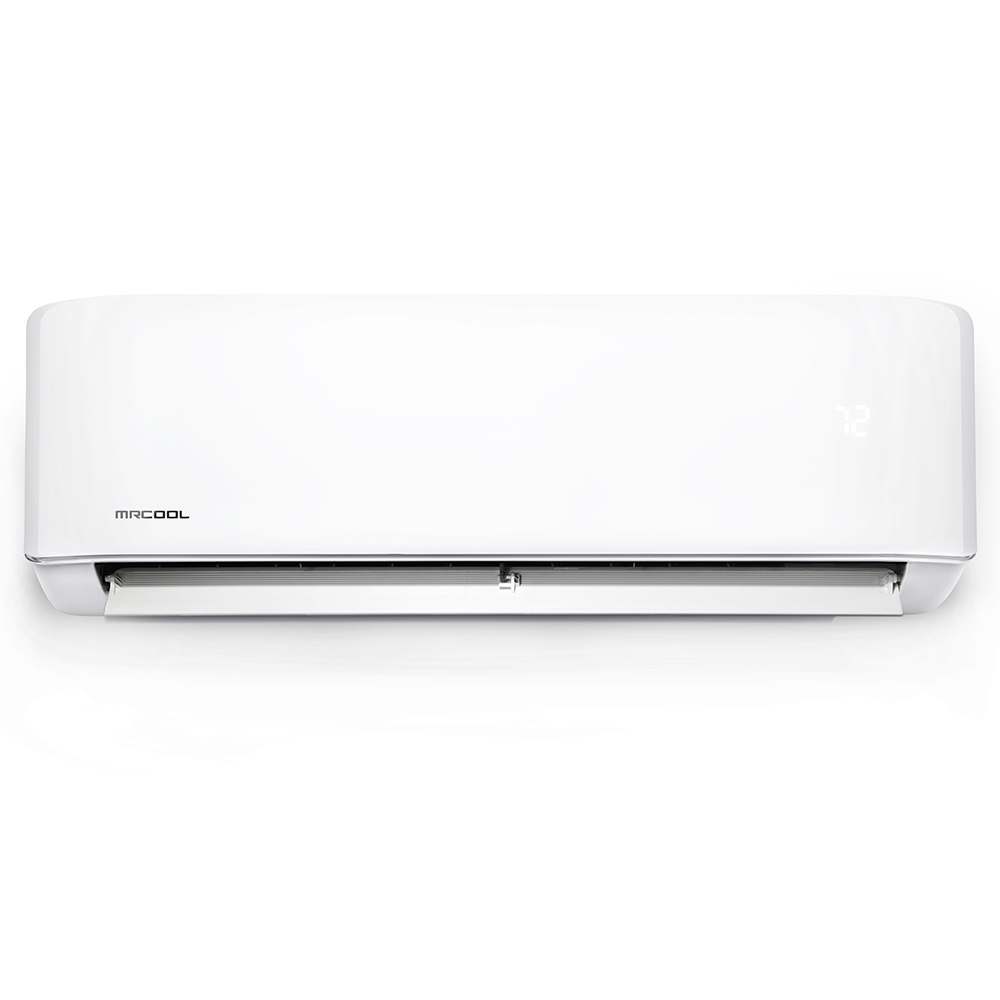

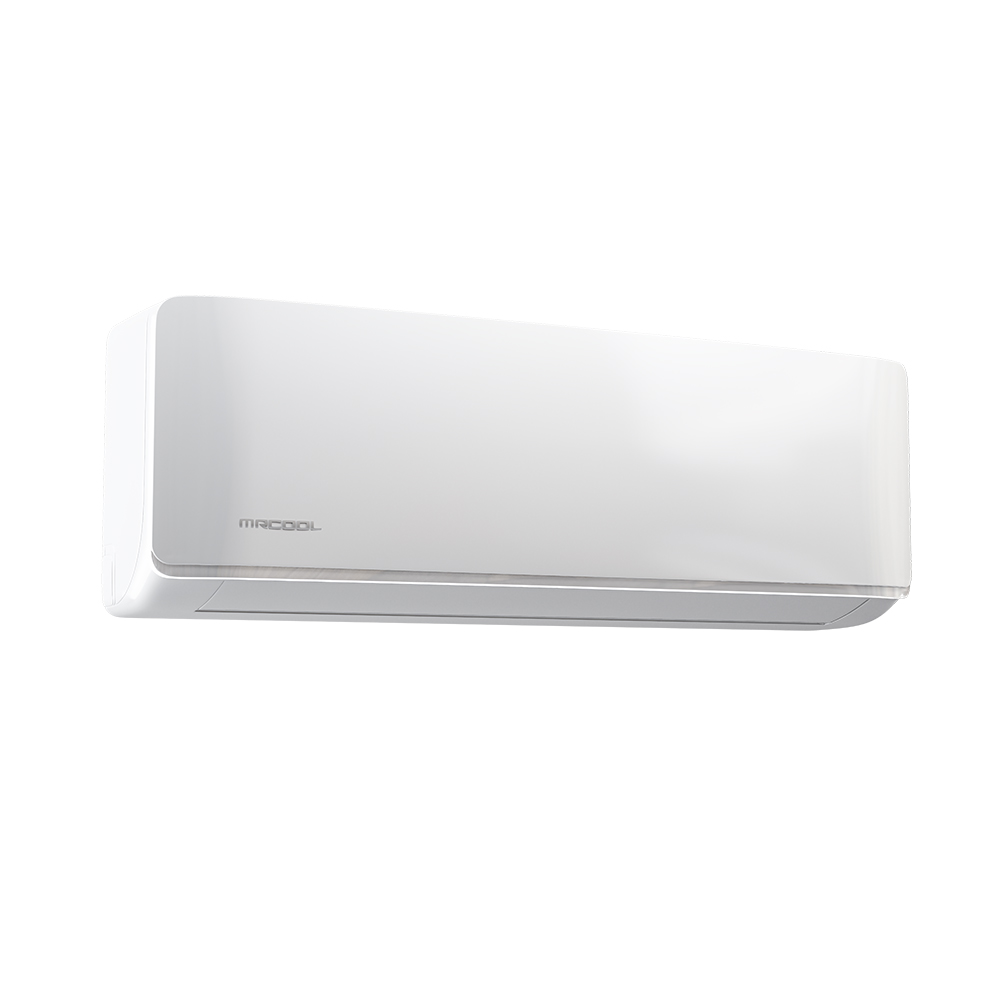

MRCOOL® 5th Gen 12K BTU 230V Advantage Air Handler
The MRCOOL® 5th Generation 12K BTU 230V Advantage Air Handler now comes with R-454B refrigerant, an environmentally friendly upgrade that improves energy efficiency, reduces greenhouse gas emissions, and lowers Global Warming Potential (GWP). Designed for quiet performance, this ductless mini-split delivers dependable heating and cooling without the need for ductwork, making it a cost-effective and efficient option for any room.
Created with homeowners in mind, the sleek Advantage air handler blends power with affordability to provide balanced, consistent comfort year-round. With built-in Wi-Fi, you can easily control settings from anywhere and schedule automatic overnight adjustments for improved comfort and energy savings.
Warranty Coverage
-
1-Year Parts Warranty
-
2-Year Compressor Warranty
-
1-Year Remote Control Warranty (with registration)
-
Limited Lifetime Warranty with MRCOOL® Care Program enrollment
Combining high efficiency, eco-conscious technology, and user-friendly controls, the MRCOOL® Advantage Air Handler delivers worry-free, reliable comfort for your home.
|
FEATURE LIST
|
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
|
|
CFM
|
359.0 / 306.1 / 206.0 / 144.2 / /
|
|
TONNAGE
|
1
|
|
VOLTAGE (V)
|
208-230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
15
|
|
MIN CIRCUIT AMPACITY (A)
|
3
|
|
MOUNT TYPE
|
Wall
|
|
COLOR
|
White
|
|
DECIBEL RATING (DBA)
|
32
|
|
DECIBEL RATING LOW (DBA)
|
21
|
|
DECIBEL RATING HIGH (DBA)
|
44
|
|
NUMBER OF SPEEDS
|
5
|
|
MAX LINESET LENGTH (FT)
|
82
|
|
LIQUID LINE SIZE
|
1/4
|
|
SUCTION LINE SIZE
|
3/8
|
|
FILTER TYPE
|
Reusable
|
|
OVERLOAD PROTECTION
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
WORKS WITH IOS
|
Yes
|
|
WORKS WITH ANDROID
|
Yes
|
|
REMOTE CONTROL INCLUDED
|
Yes
|
|
UL LISTED
|
Yes
|
|
CSA LISTED
|
Yes
|
|
ETL LISTED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
REGISTERED WARRANTY
|
Extended Limited Lifetime*
|
|
BASE PARTS WARRANTY
|
1 Year
|
|
BASE COMPRESSOR WARRANTY
|
2 Years
|
|
HAS BATTERIES
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
NET DEPTH (IN)
|
7.44
|
|
NET HEIGHT (IN)
|
11.69
|
|
NET WIDTH (IN)
|
31.57
|
|
NET WEIGHT (LBS)
|
19.4
|
|
GROSS DEPTH (IN)
|
11.22
|
|
GROSS HEIGHT (IN)
|
14.96
|
|
GROSS WIDTH (IN)
|
34.45
|
|
GROSS WEIGHT (LBS)
|
25.13
|
