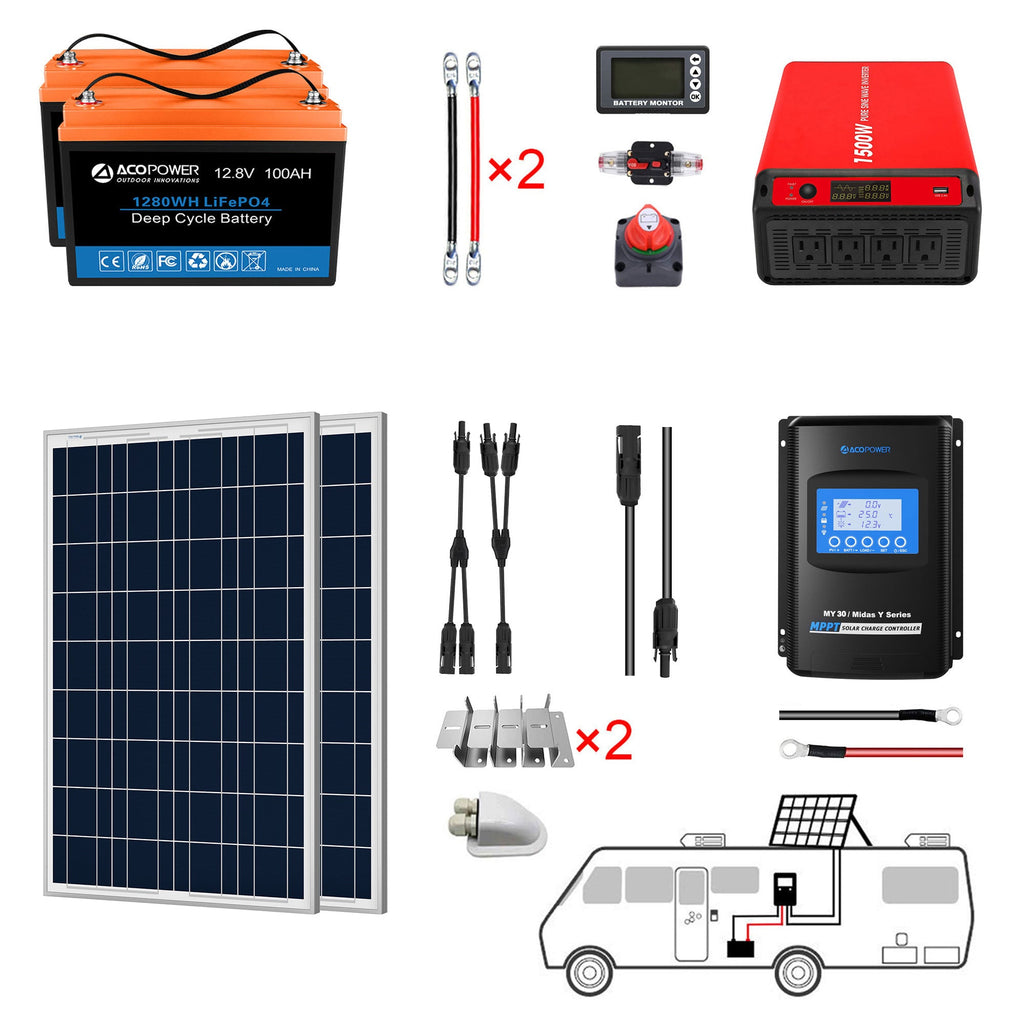

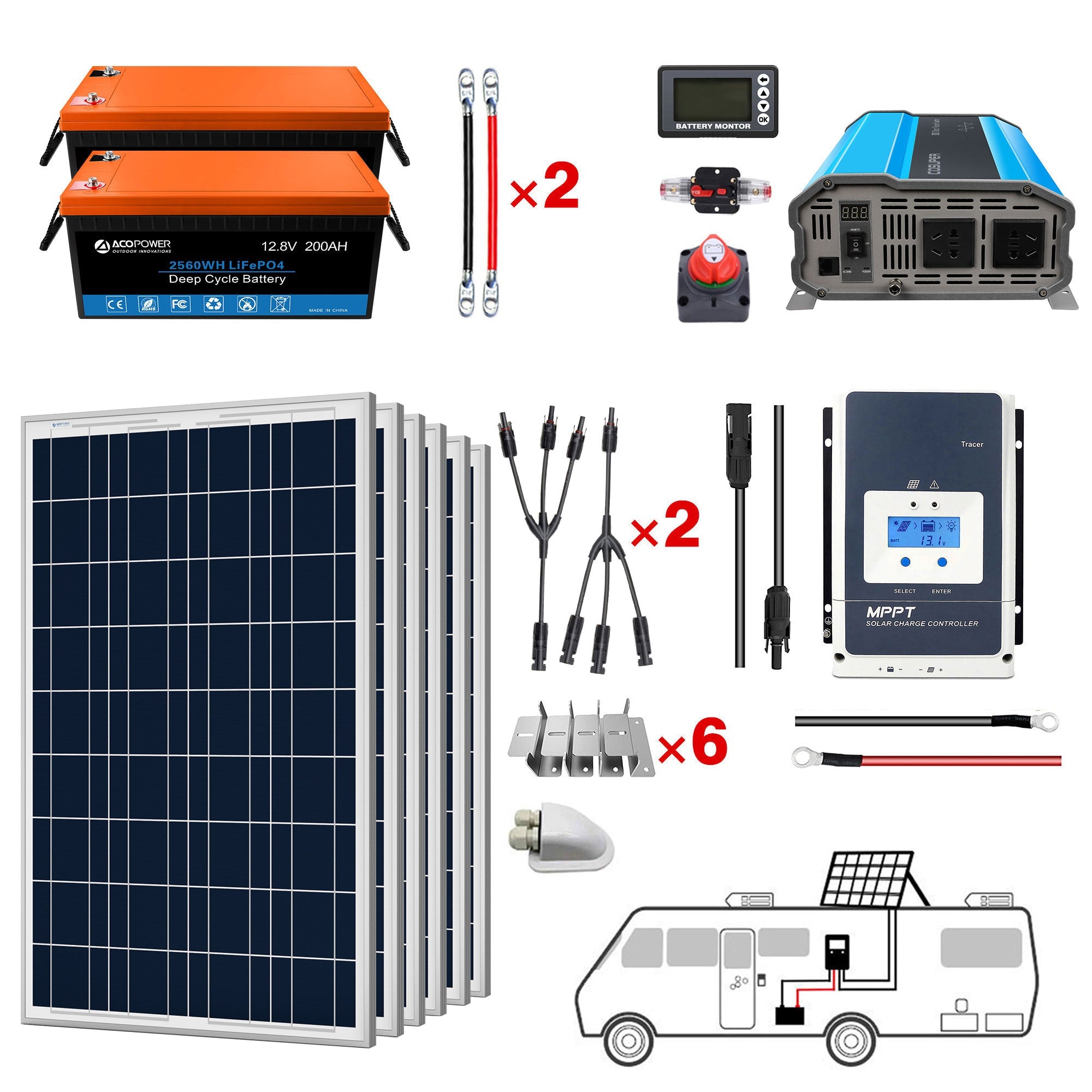

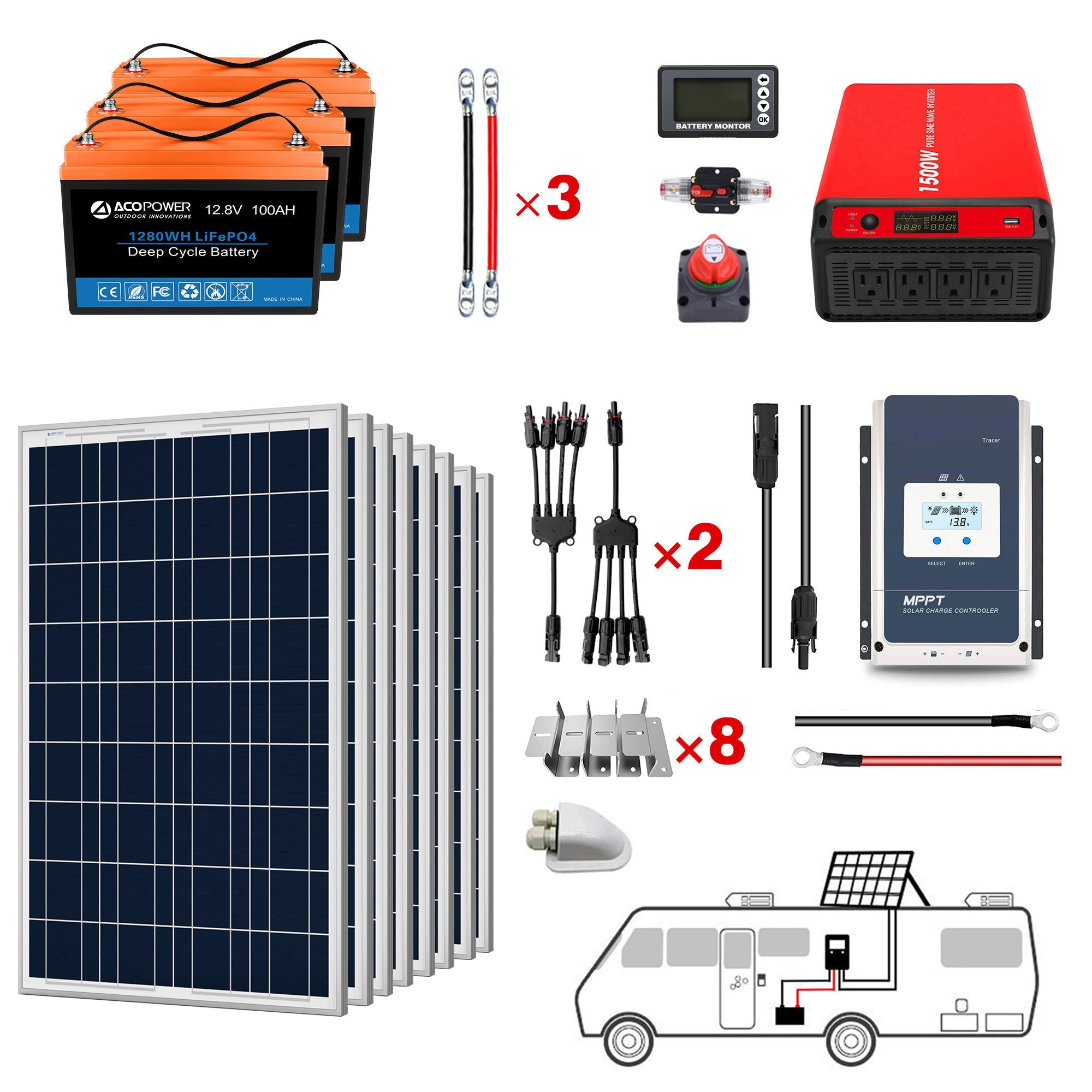

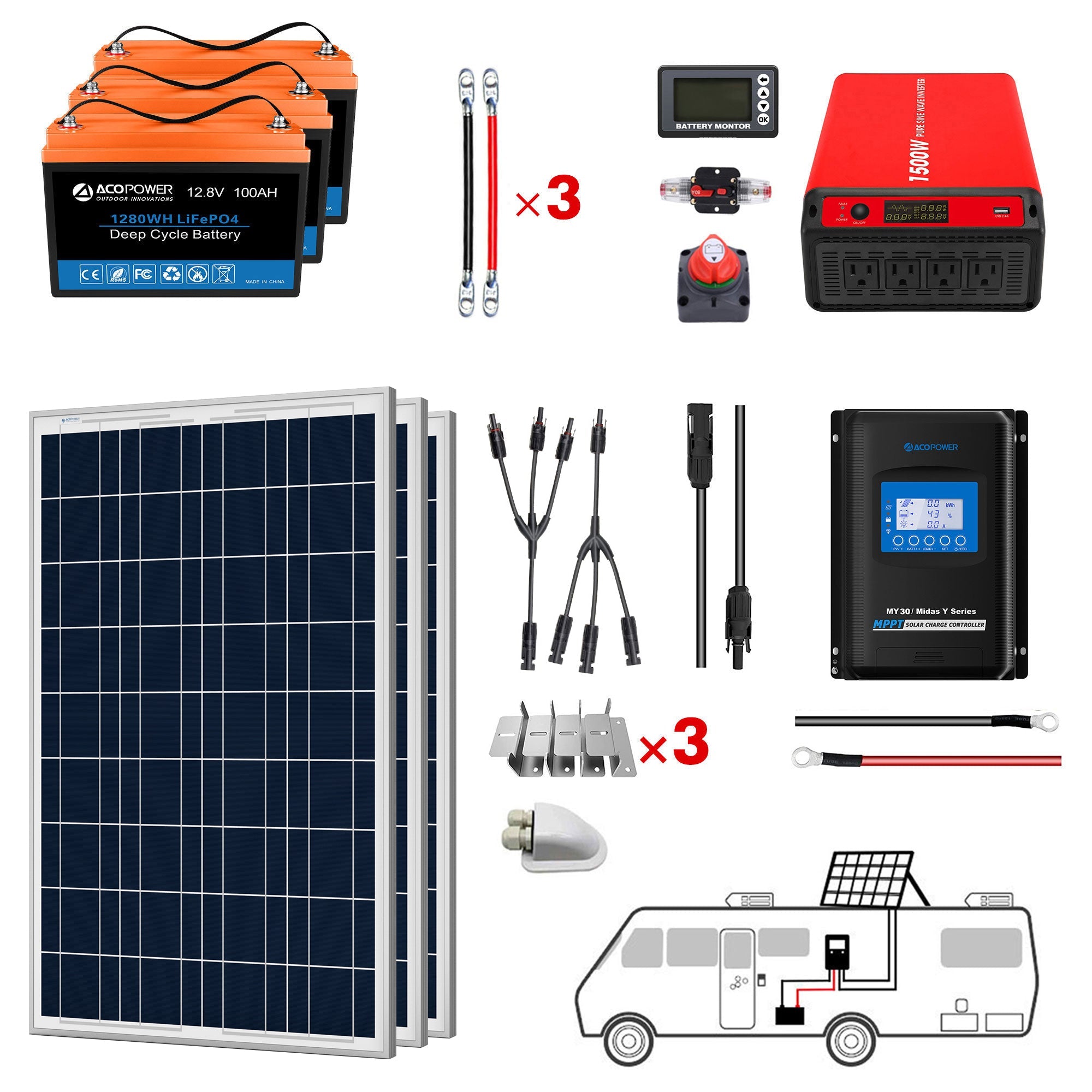

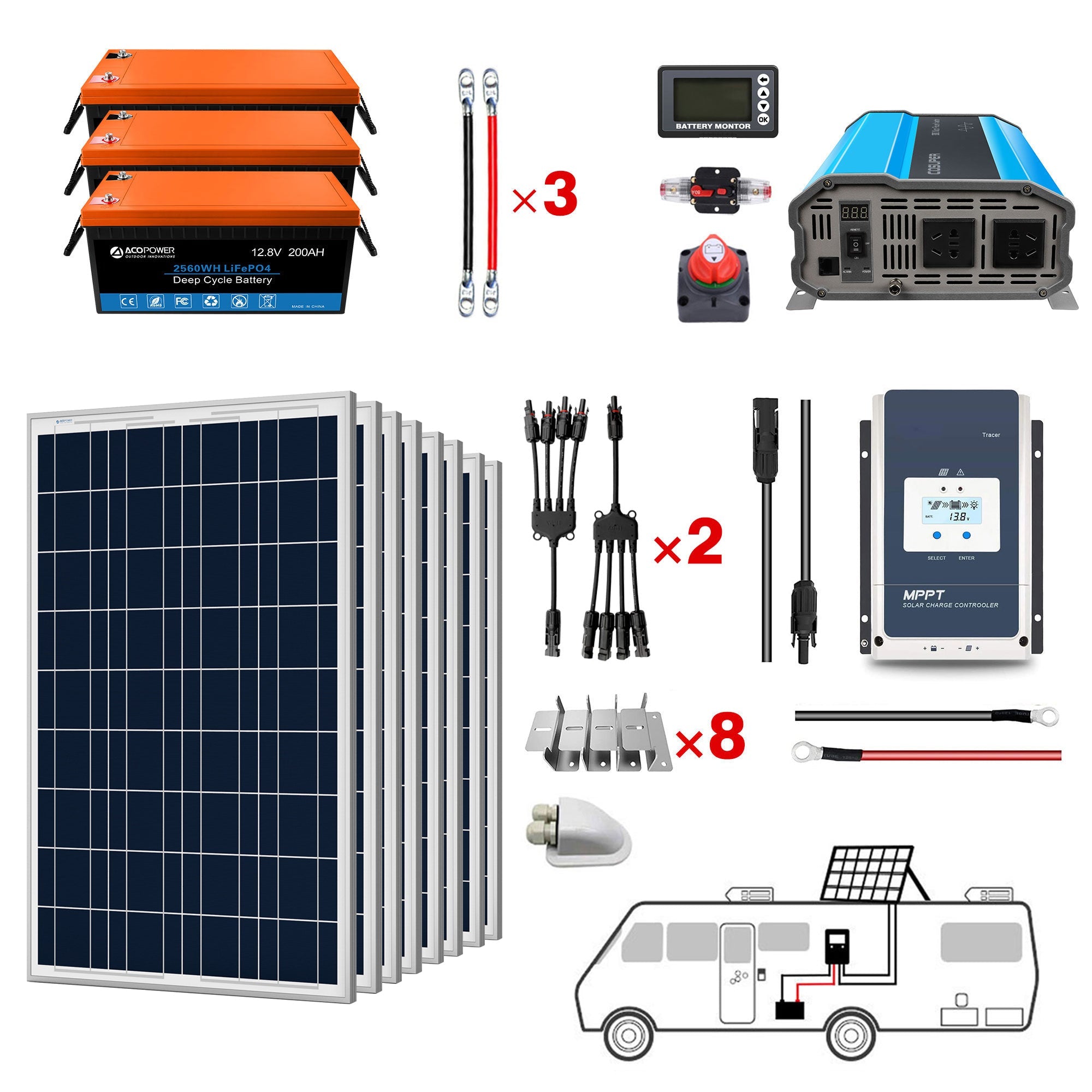

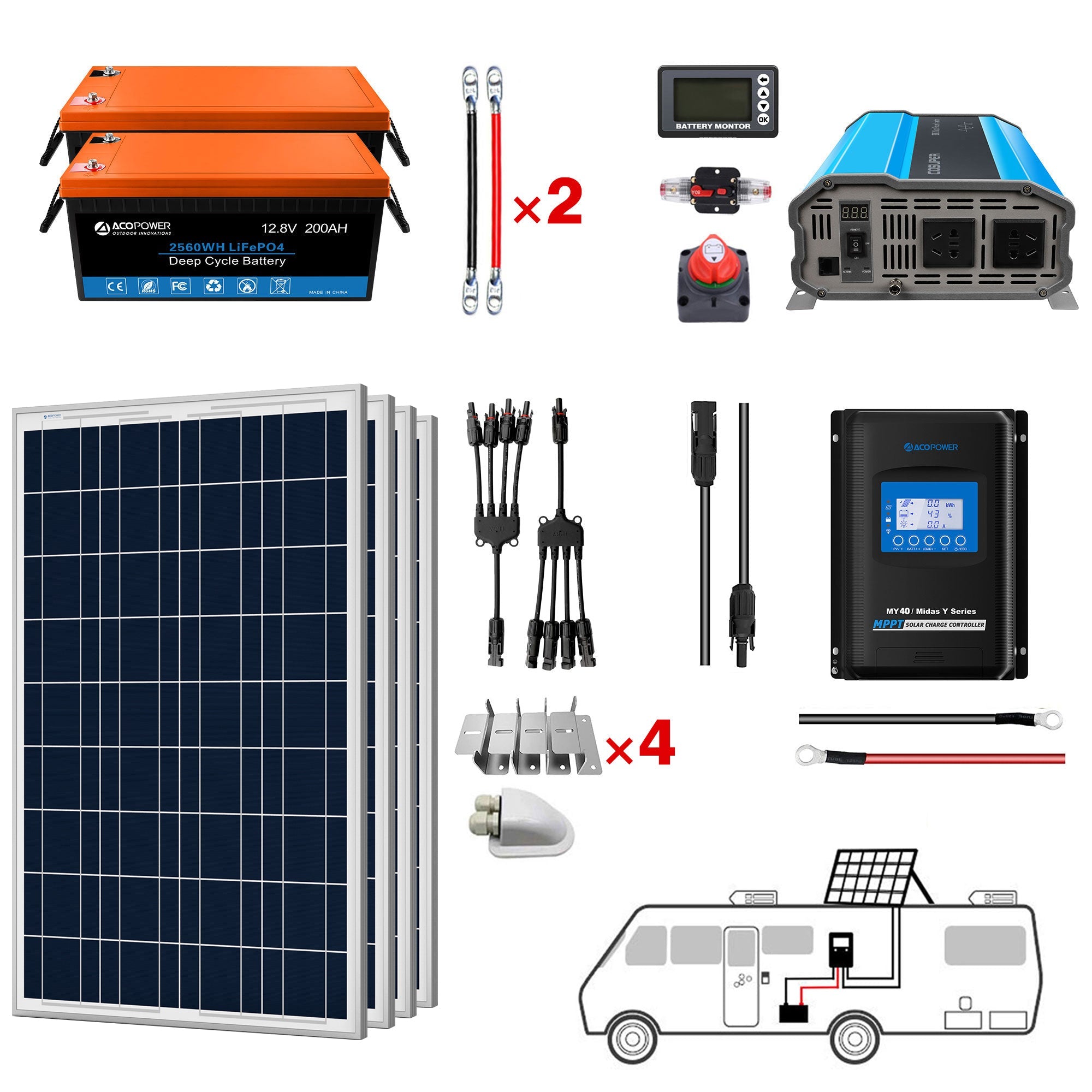

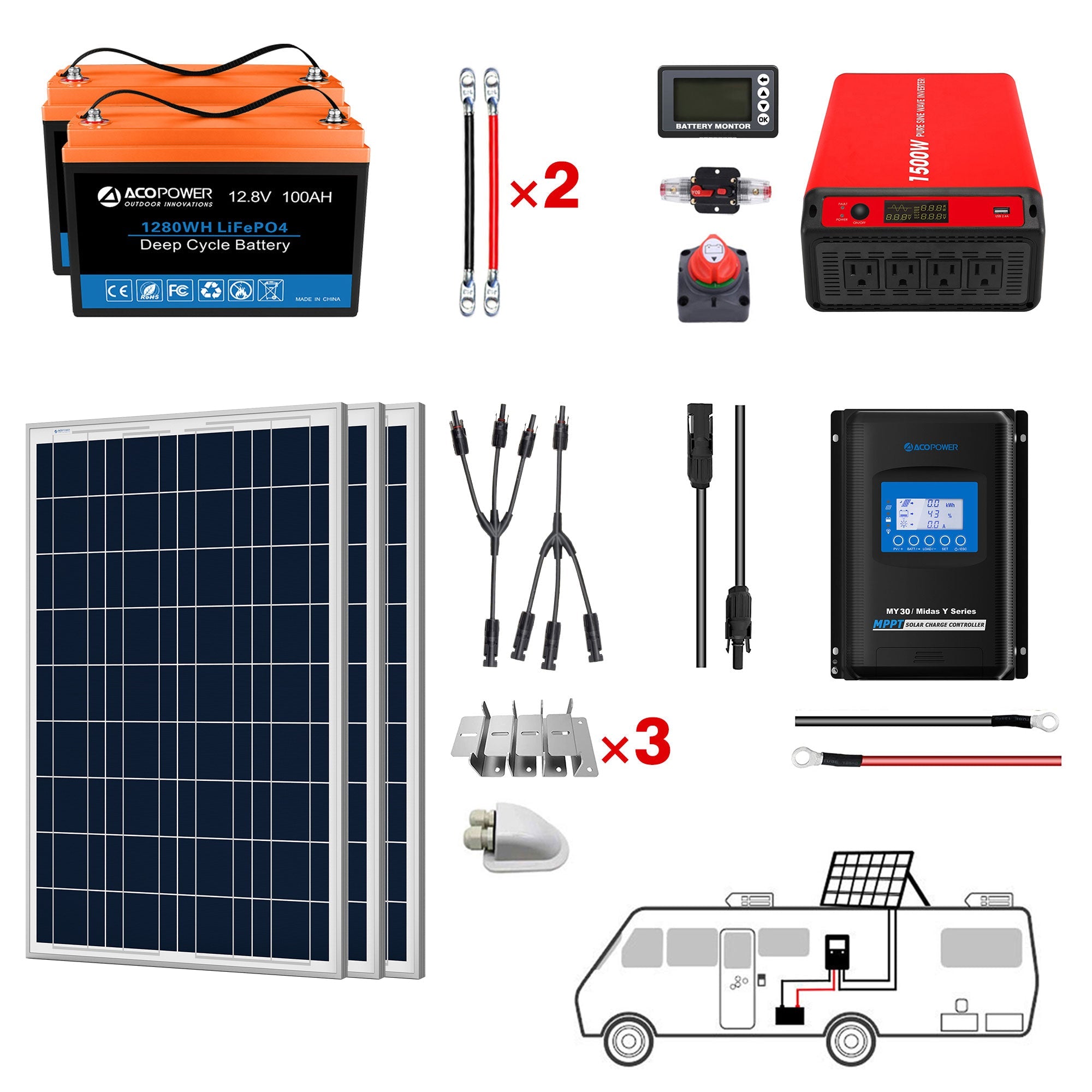

ACOPOWER Lithium Battery Polycrystalline Solar Power Complete System with Battery and Inverter for RV Boat 12V Off Grid Kit

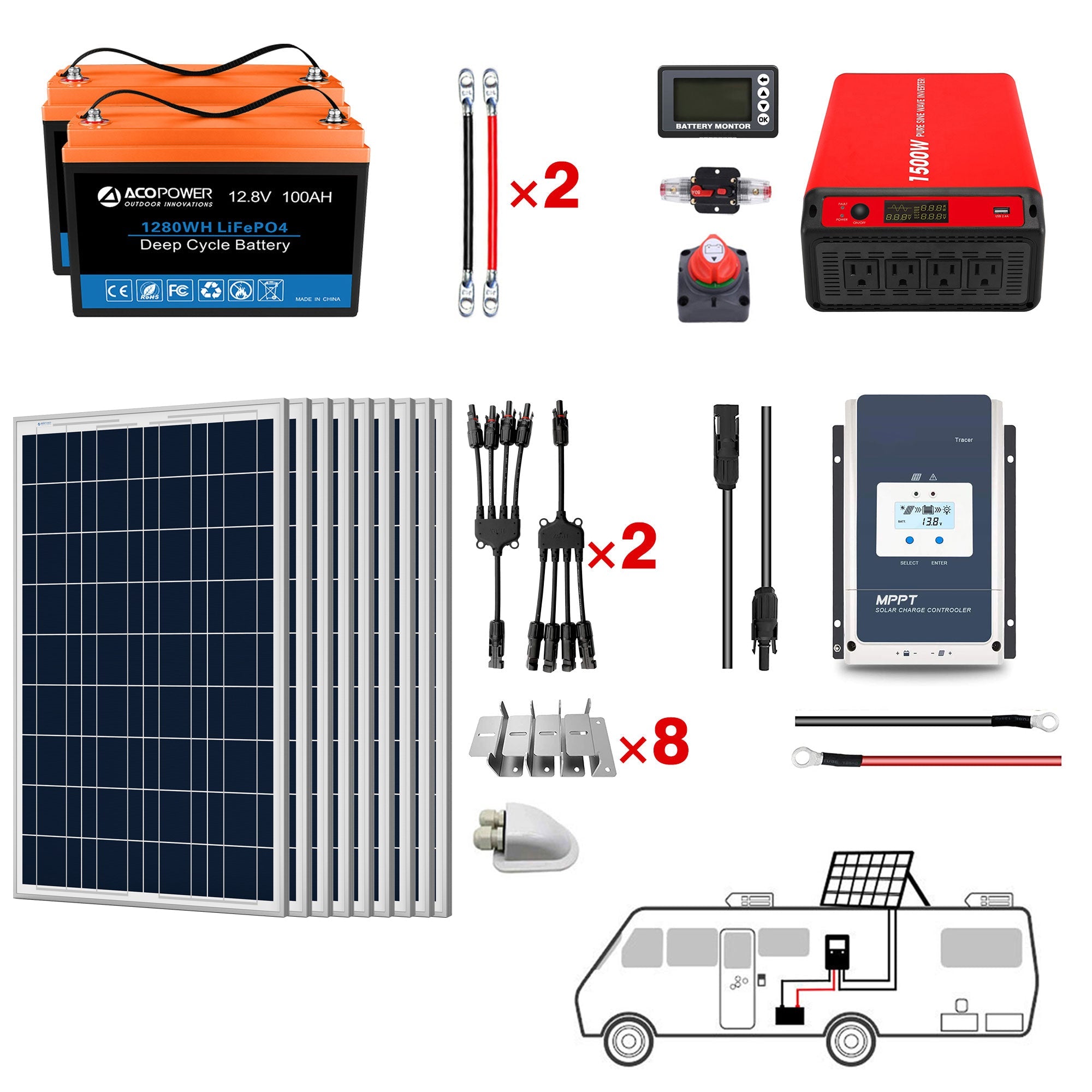

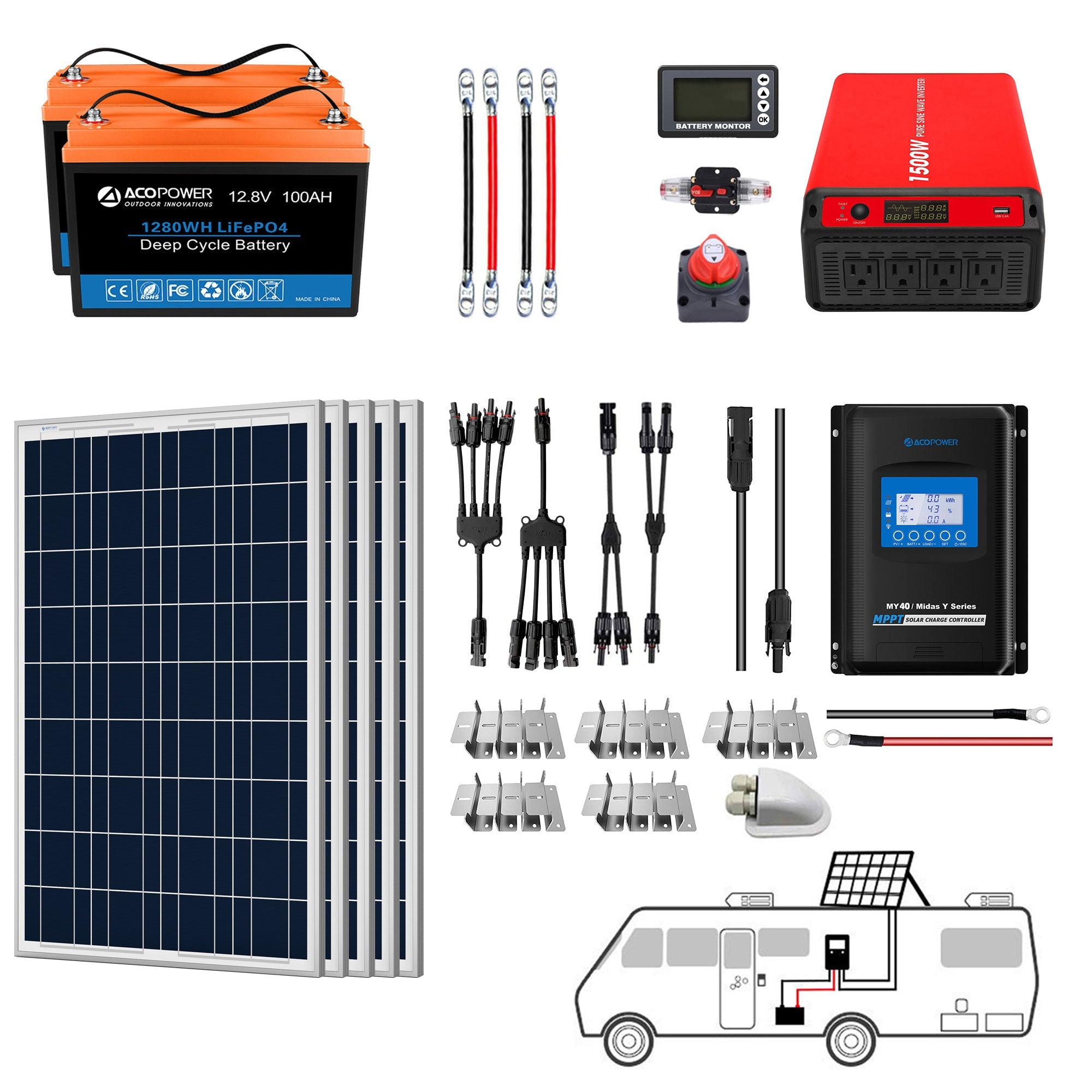

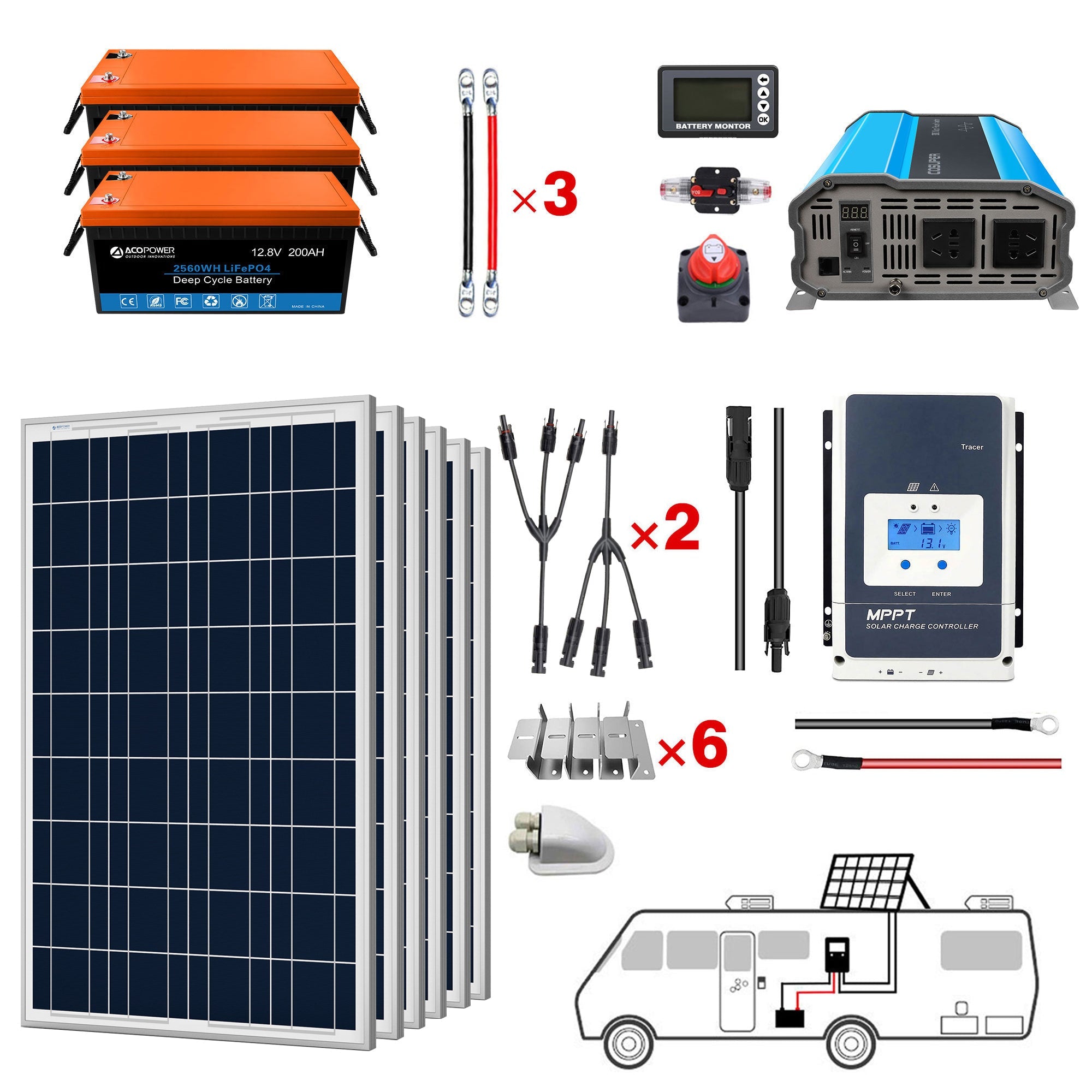

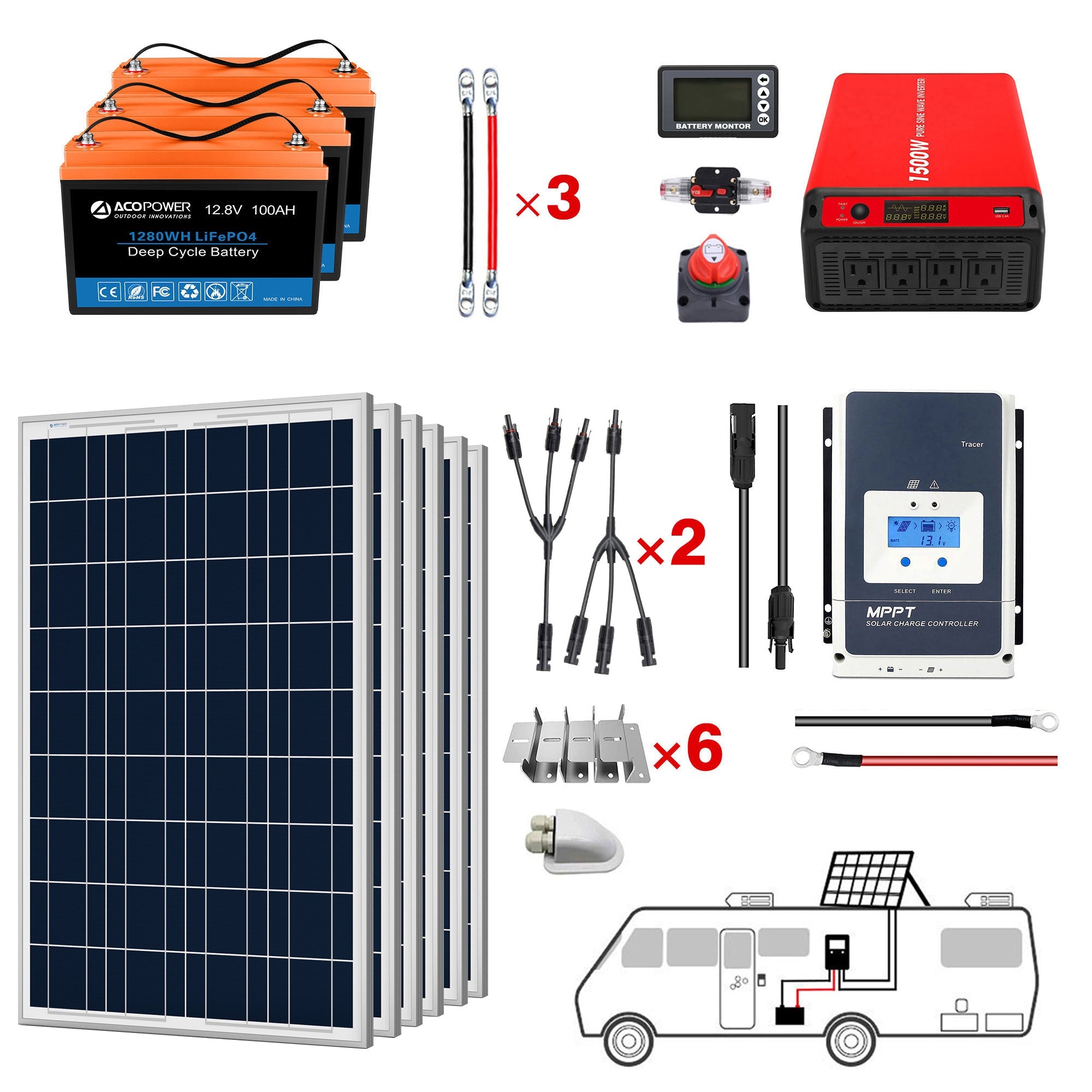

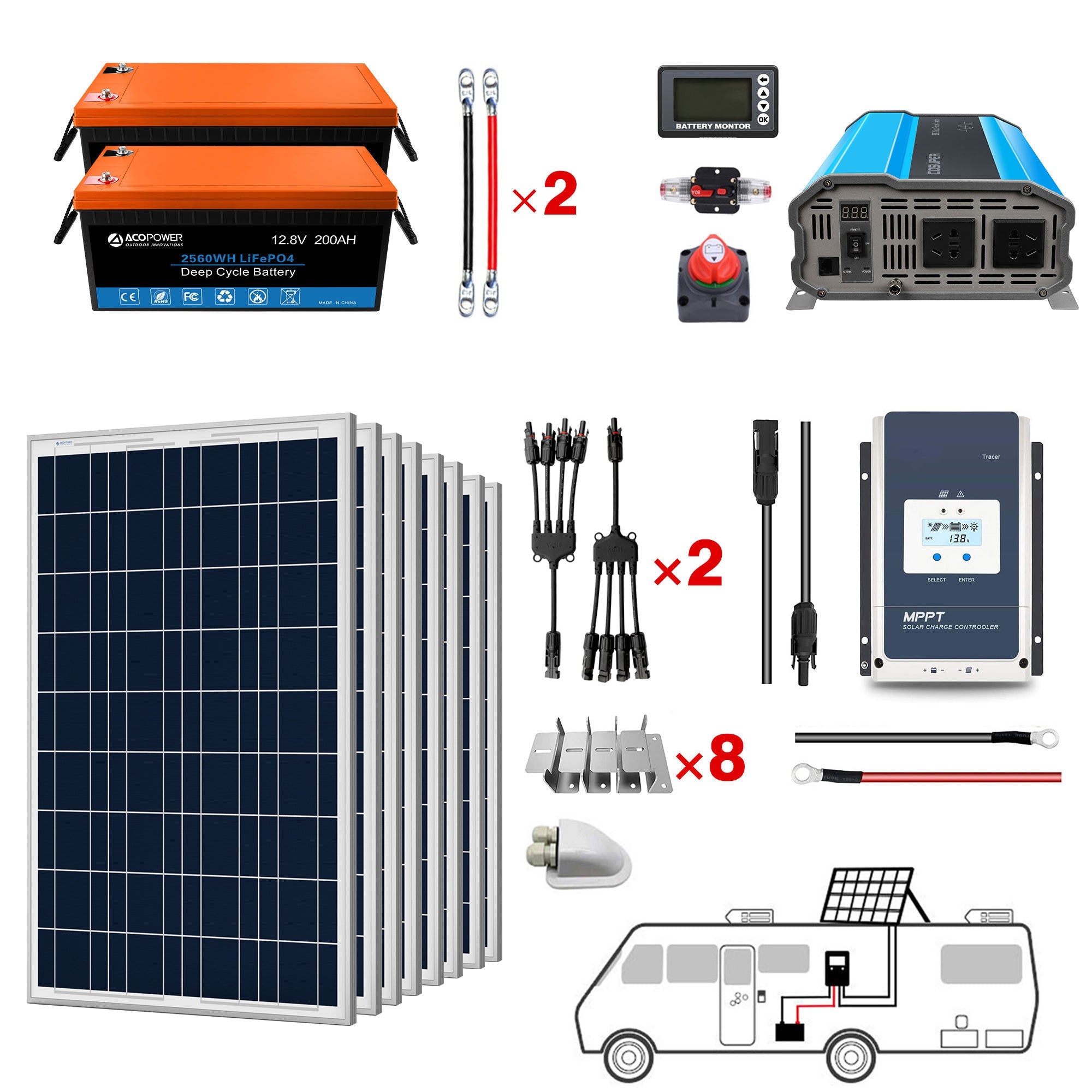

ACOPOWER Lithium Battery Solar Power Kit
Everything you need for clean, renewable solar energy in one complete package—ideal for RVs, boats, cabins, and emergency backup use.

✅ System Overview

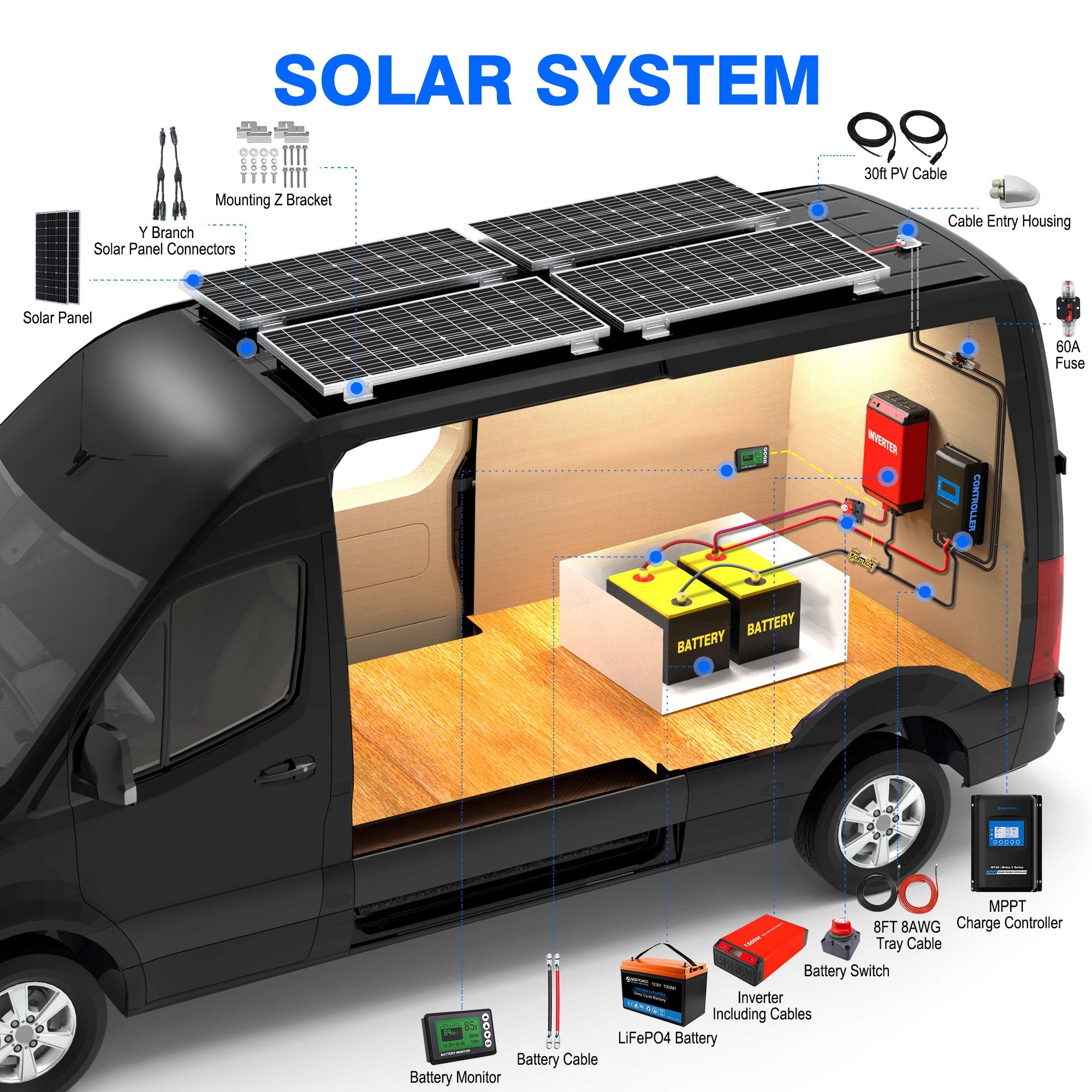

This all-in-one solar power system is designed for ease and reliability. Whether you're off-grid adventuring or preparing for backup power, this kit delivers dependable performance using high-capacity LiFePO4 batteries, efficient polycrystalline solar panels, MPPT charge controllers, and pure sine wave inverters.

🔋 Battery Options

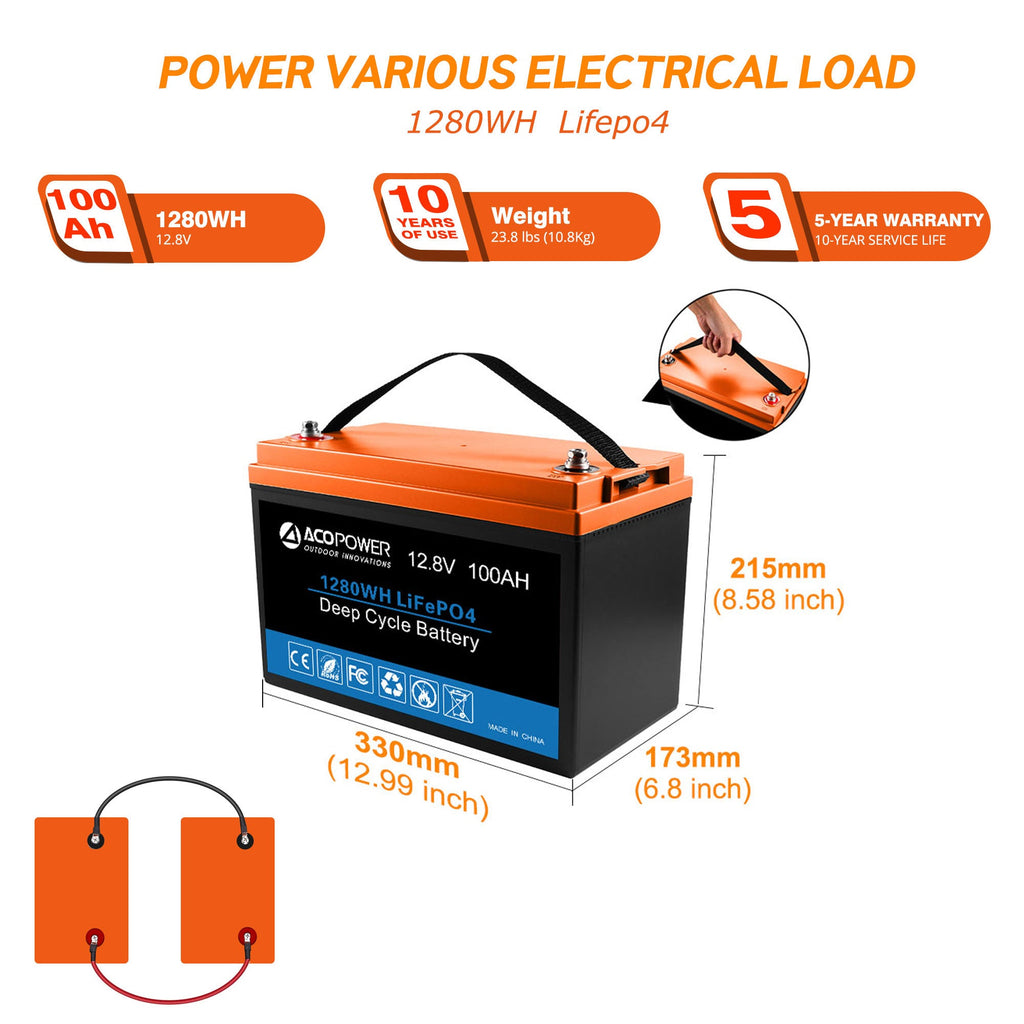

12V 100Ah LiFePO4 Lithium Battery

• Nominal Voltage: 12.8V

• Charging Voltage: 14.2–14.6V

• Capacity: 1280Wh

• 100% Depth of Discharge

• Standard Charge Current: 20A

• Max Charge: 50A | Max Discharge: 100A

• Dimensions: 12.99 x 6.81 x 8.58 in

• Weight: 23.8 lbs

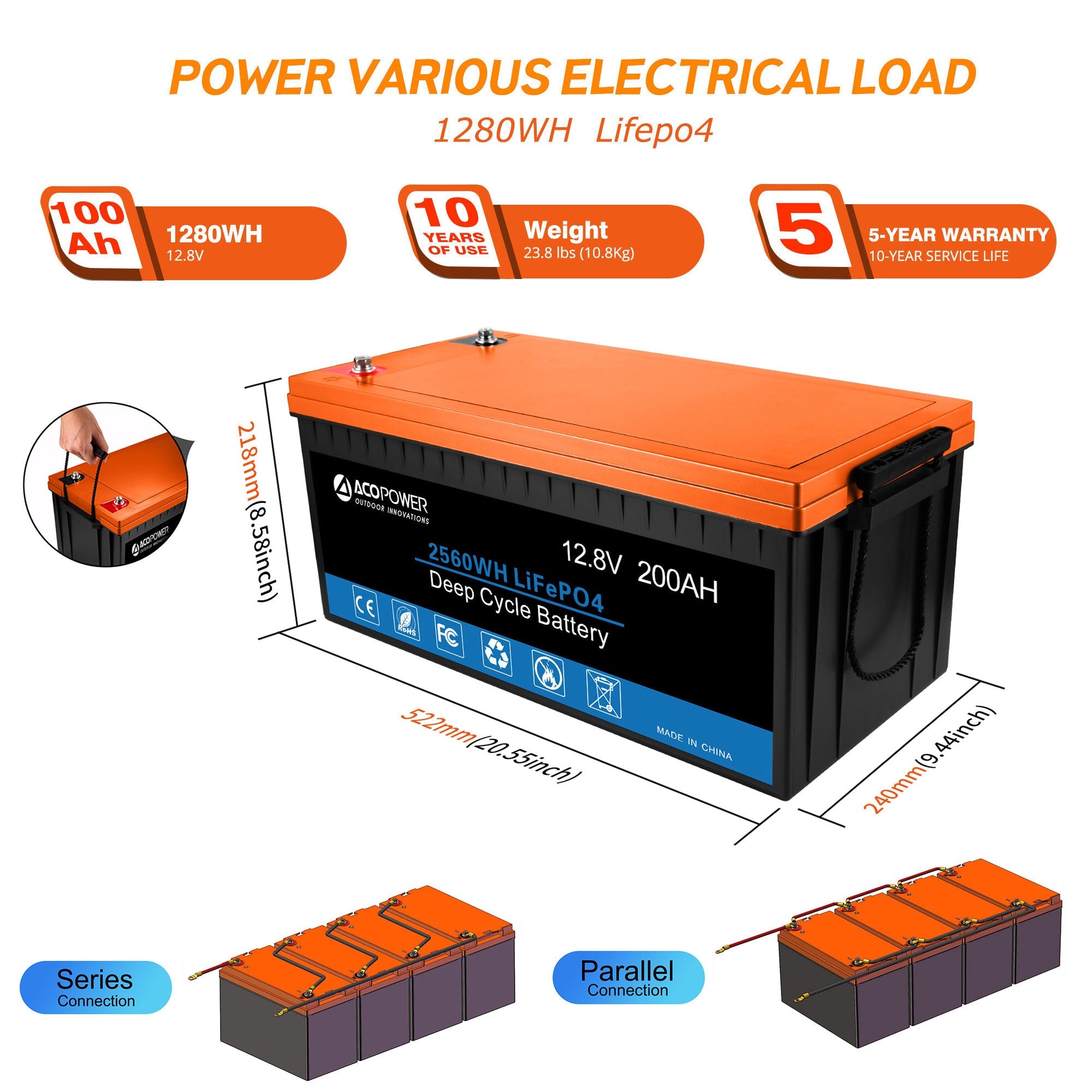

12V 200Ah LiFePO4 Lithium Battery

• Nominal Voltage: 12.8V

• Charging Voltage: 14.2–14.6V

• Capacity: 2560Wh

• 100% Depth of Discharge

• Standard Charge Current: 50A

• Max Charge: 100A | Max Discharge: 200A

• Dimensions: 20.55 x 9.44 x 8.58 in

• Weight: 48.94 lbs

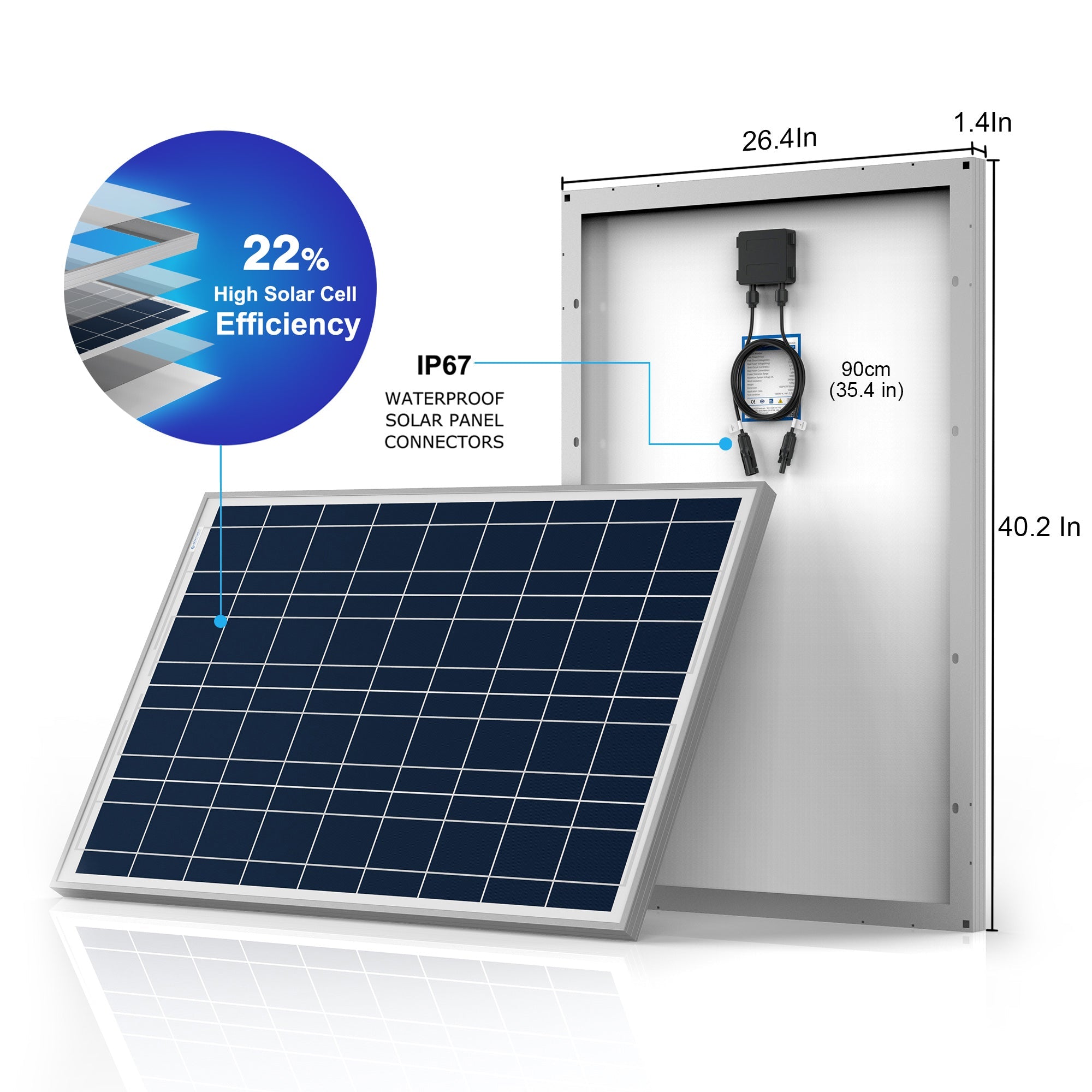

☀️ 100W Polycrystalline Solar Panel

• Designed for 12V Battery Charging

• Max Power Output: 100W

• Voc: 22V | Vmp: 17.48V

• Isc: 6.21A | Imp: 5.72A

• Dimensions: 40.2 x 26.4 x 1.4 in

• Weight: 17.6 lbs

• Class A Rating

⚡ Inverter Options

1500W Pure Sine Wave Inverter

• Continuous Power: 1500W | Surge: 3000W

• Pure Sine Output for Sensitive Electronics

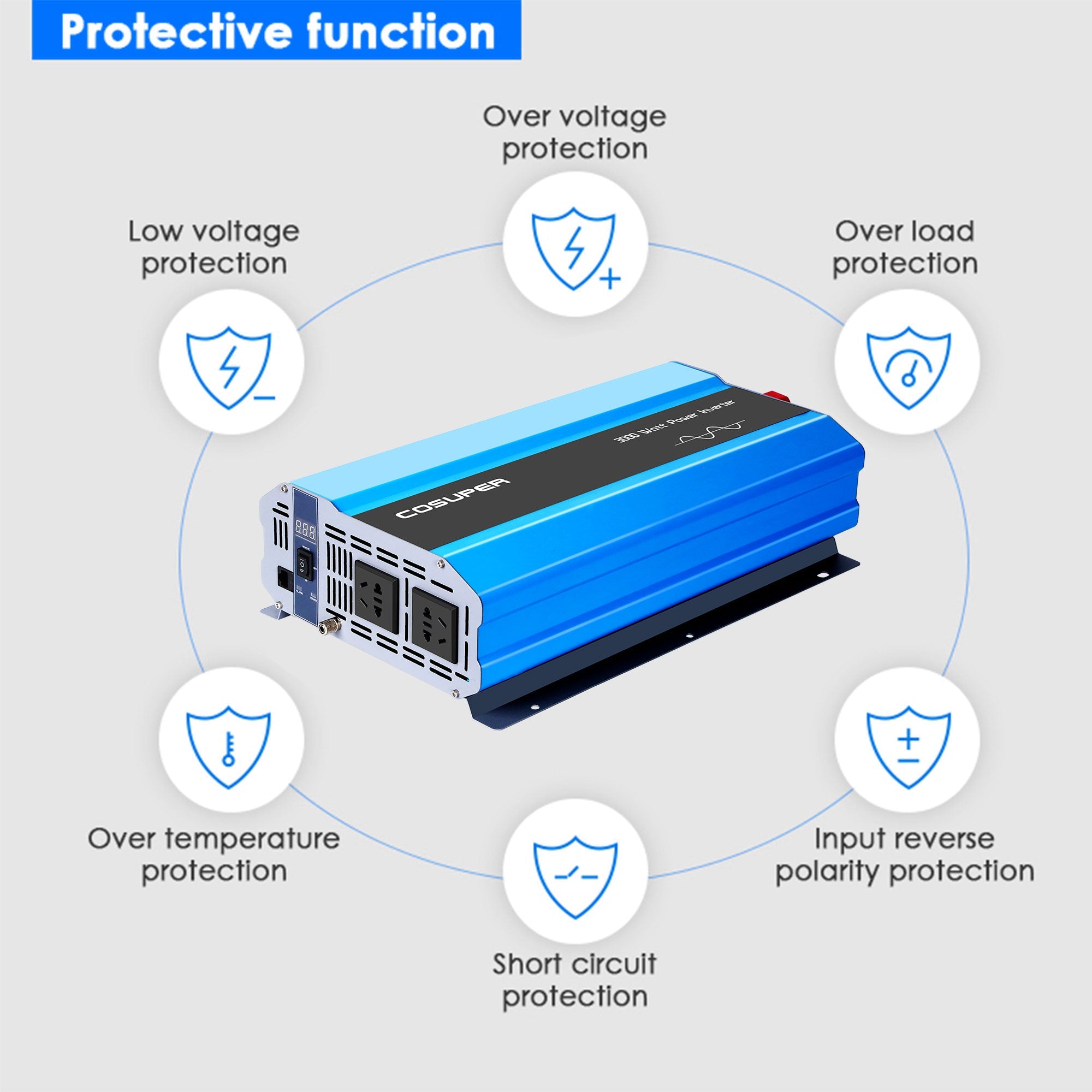

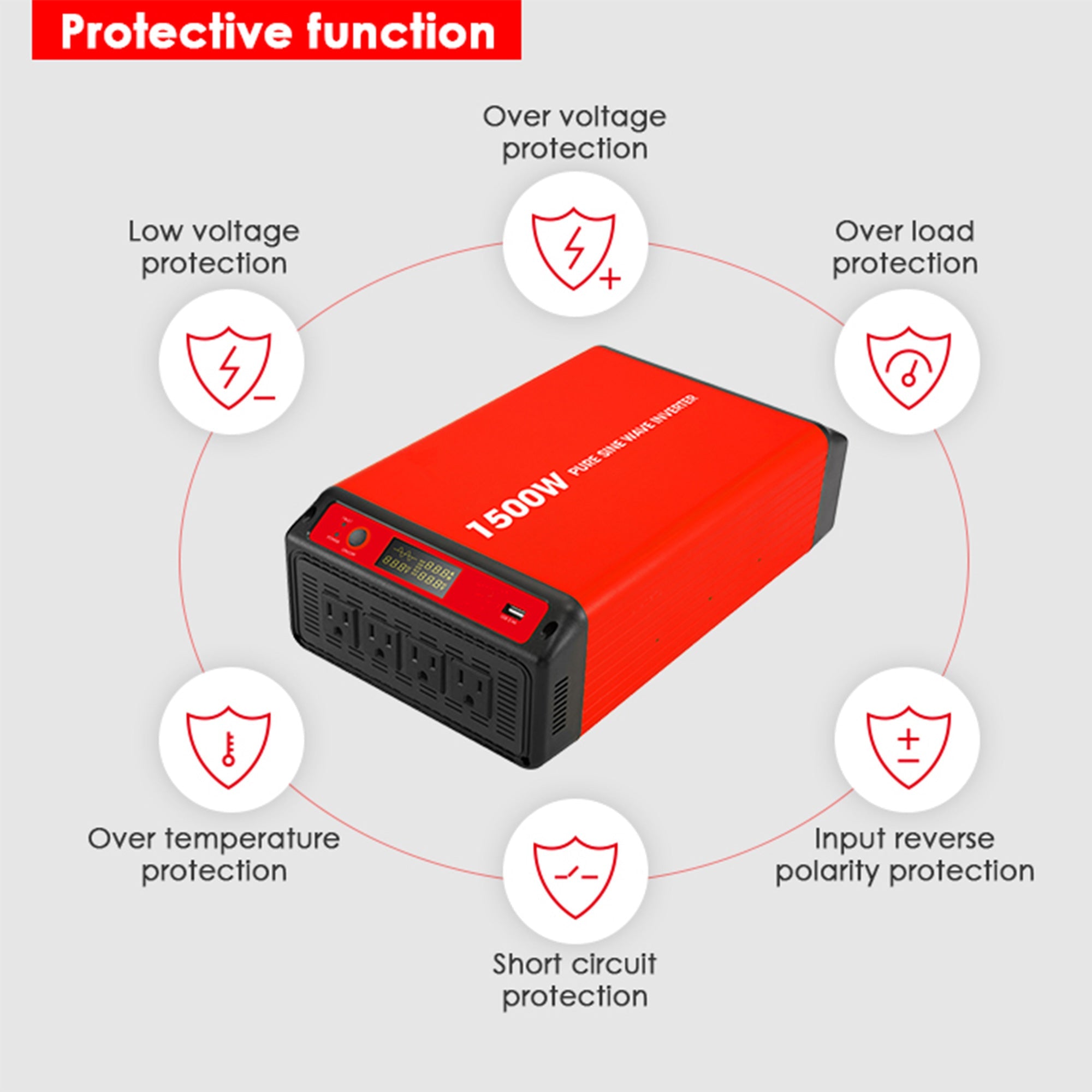

• Full Protection: Undervoltage, Overvoltage, Overload, Short Circuit

• Size: 12.94 x 7.52 x 3.86 in

• Weight: 7.79 lbs

3000W Pure Sine Wave Inverter

• Continuous Power: 3000W | Surge: 6000W

• Same advanced protections

• Size: 18.23 x 9.53 x 4.65 in

• Weight: 12.1 lbs

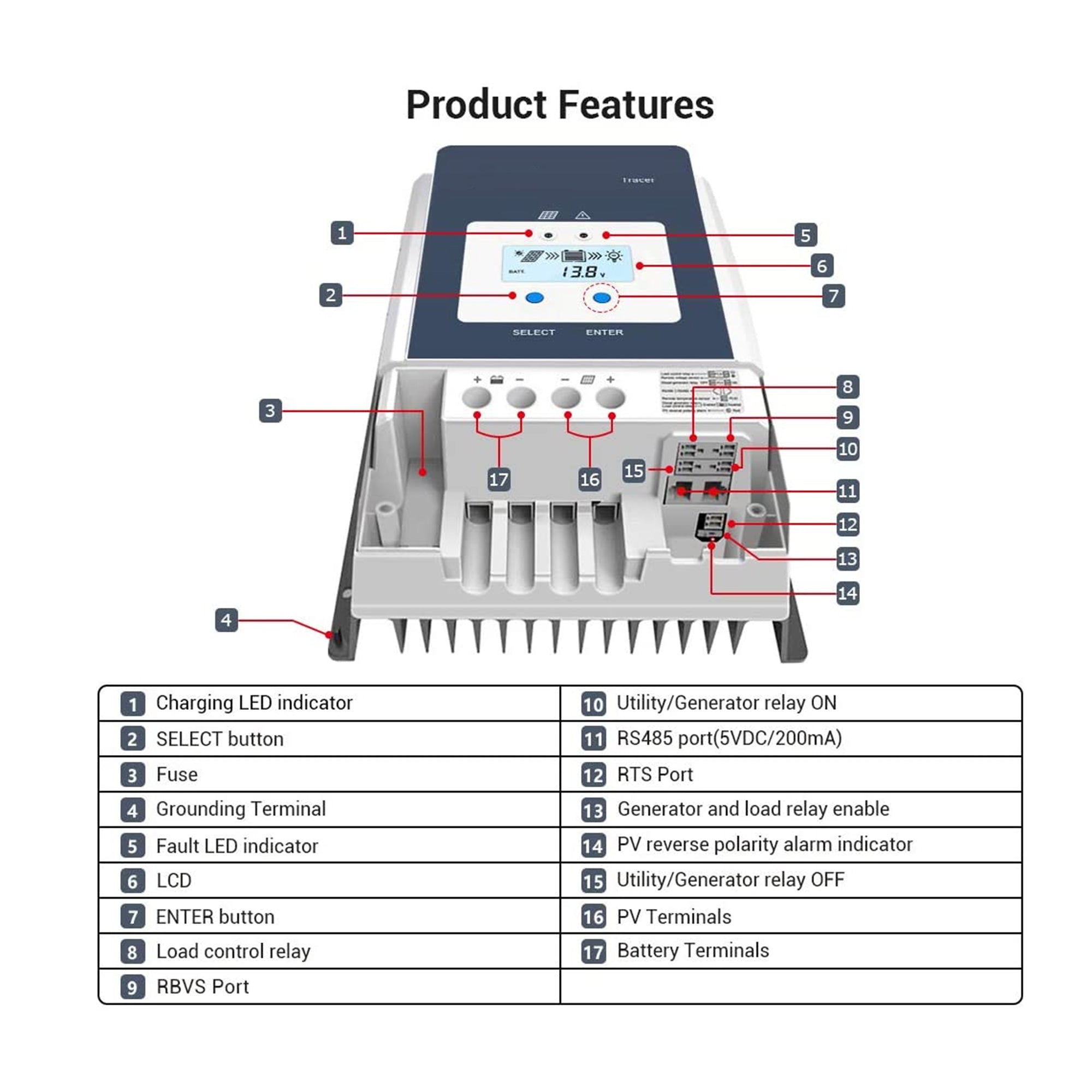

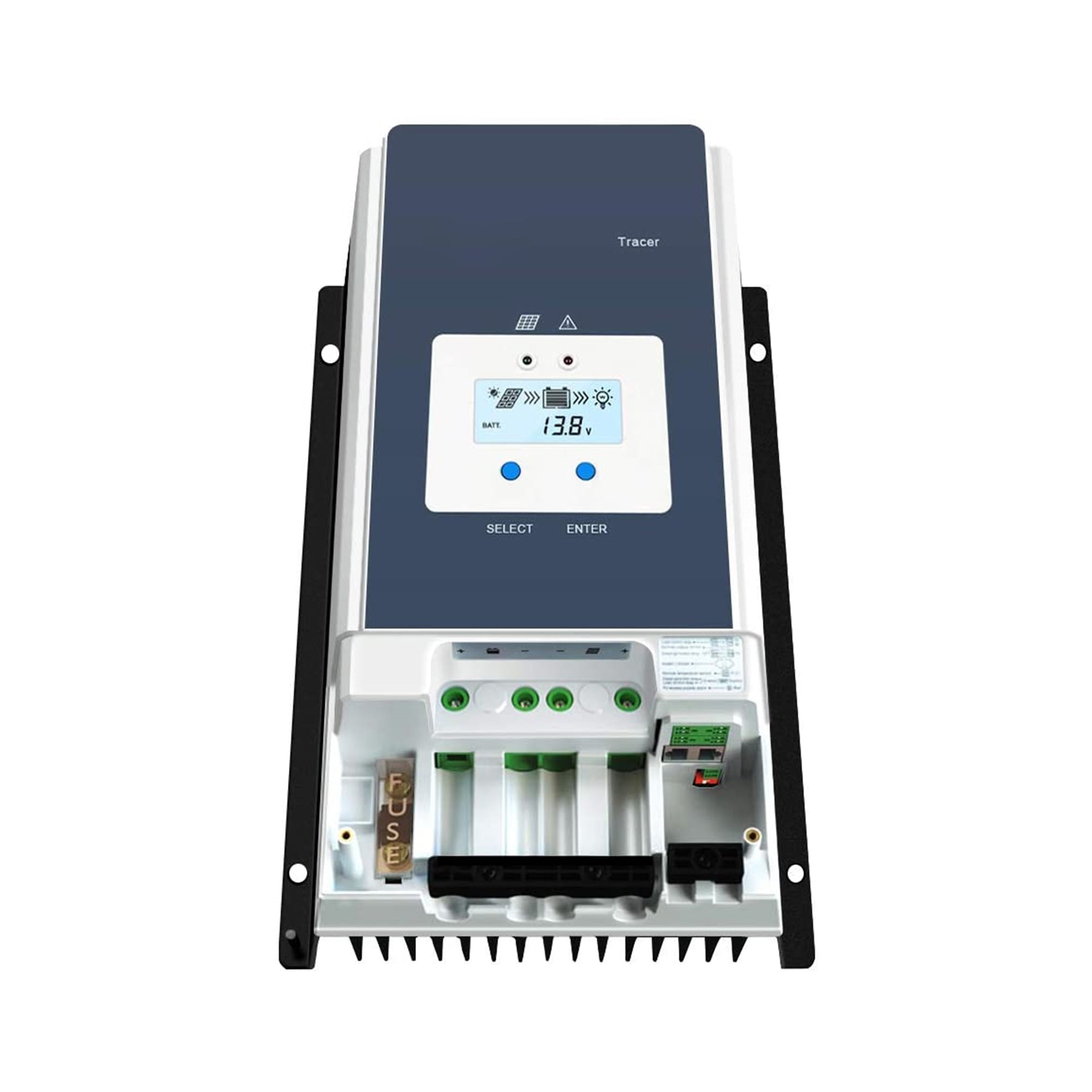

🔌 MPPT Solar Charge Controller Options

30A MPPT Controller

• Voltage Range: 8–32V

• Max PV Input: 100VDC

• Max Input Power: 390W (12V), 780W (24V)

• Supports: LiFePO4, Sealed, Gel, Flooded

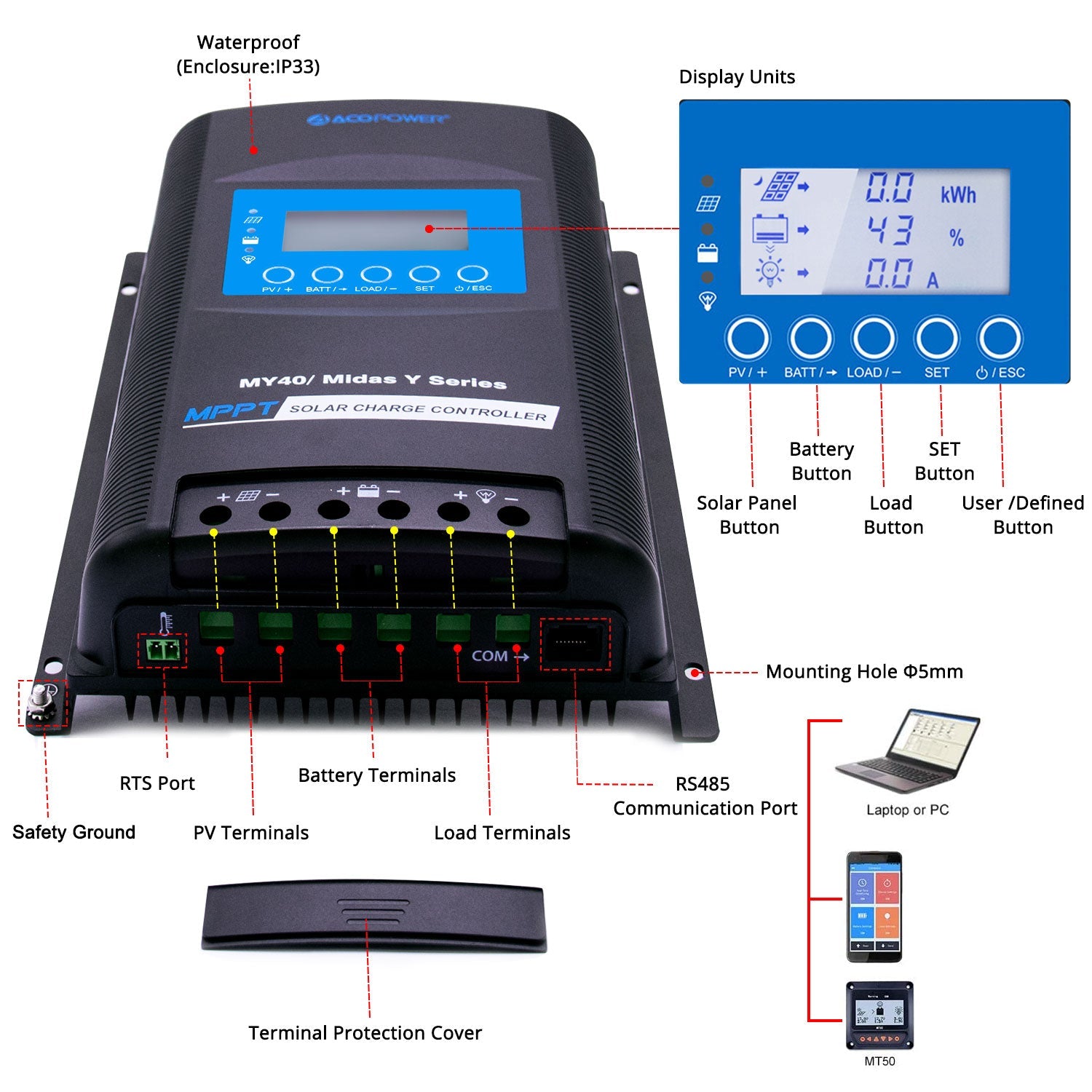

40A MPPT Controller

• Same voltage input as 30A

• Max Input Power: 520W (12V), 1040W (24V)

50A MPPT Controller

• Voltage Range: 8–68V

• Max PV Voltage: 150V

• Max Input Power: 625W (12V) up to 2500W (48V)

• User-programmable battery profiles

60A MPPT Controller

• Same range and voltage as 50A

• Max Input Power: 750W (12V) up to 3000W (48V)

This complete kit delivers scalable, reliable off-grid power, whether you’re exploring nature or preparing for outages.
