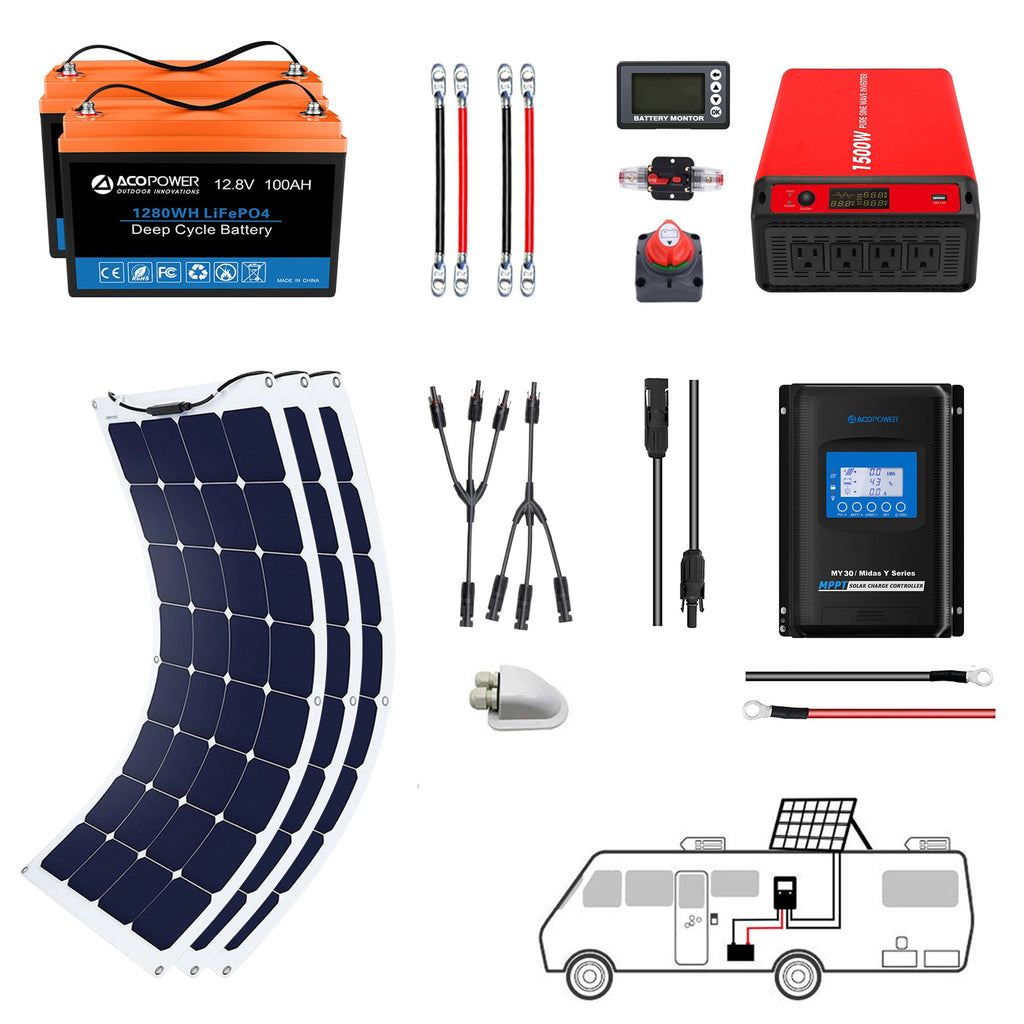

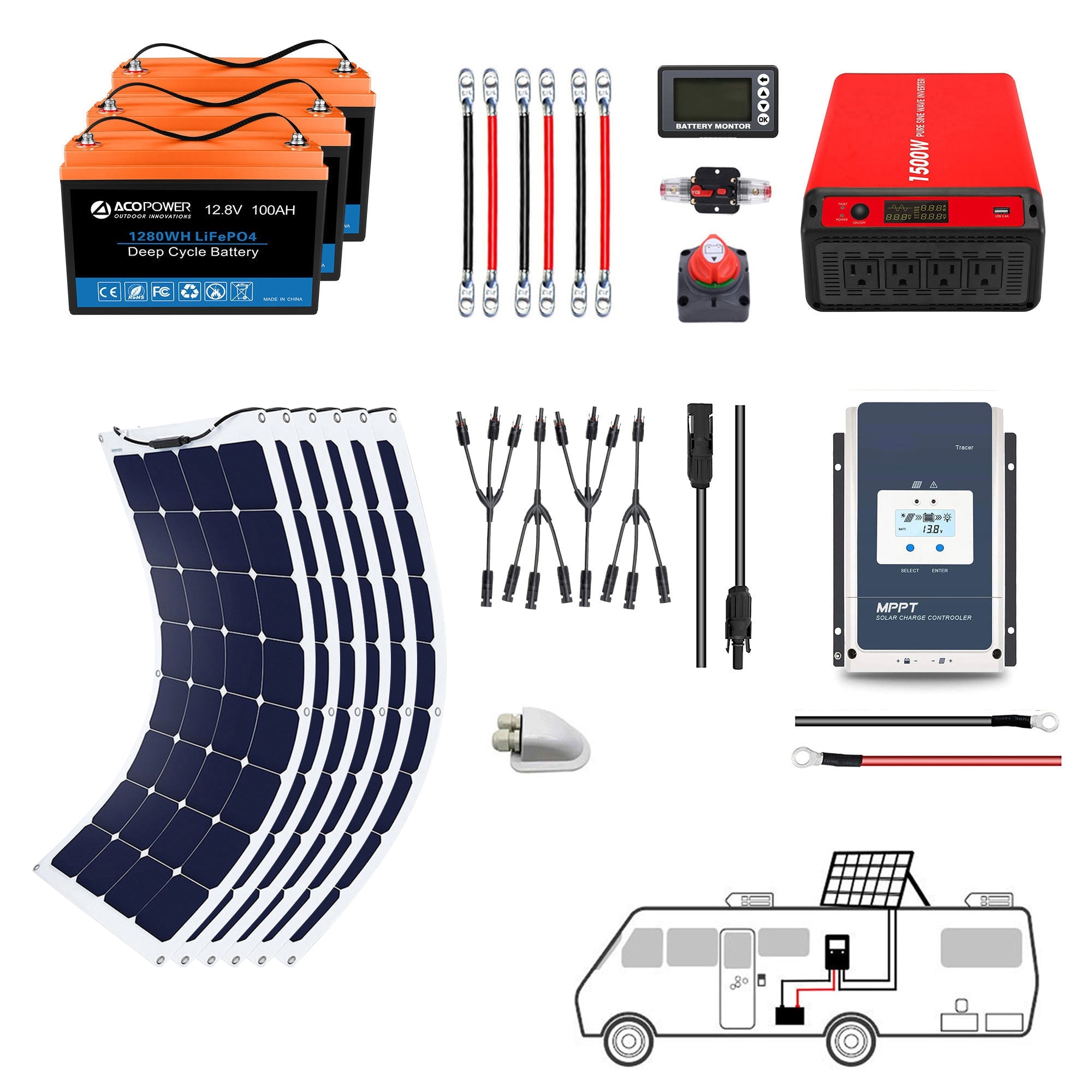

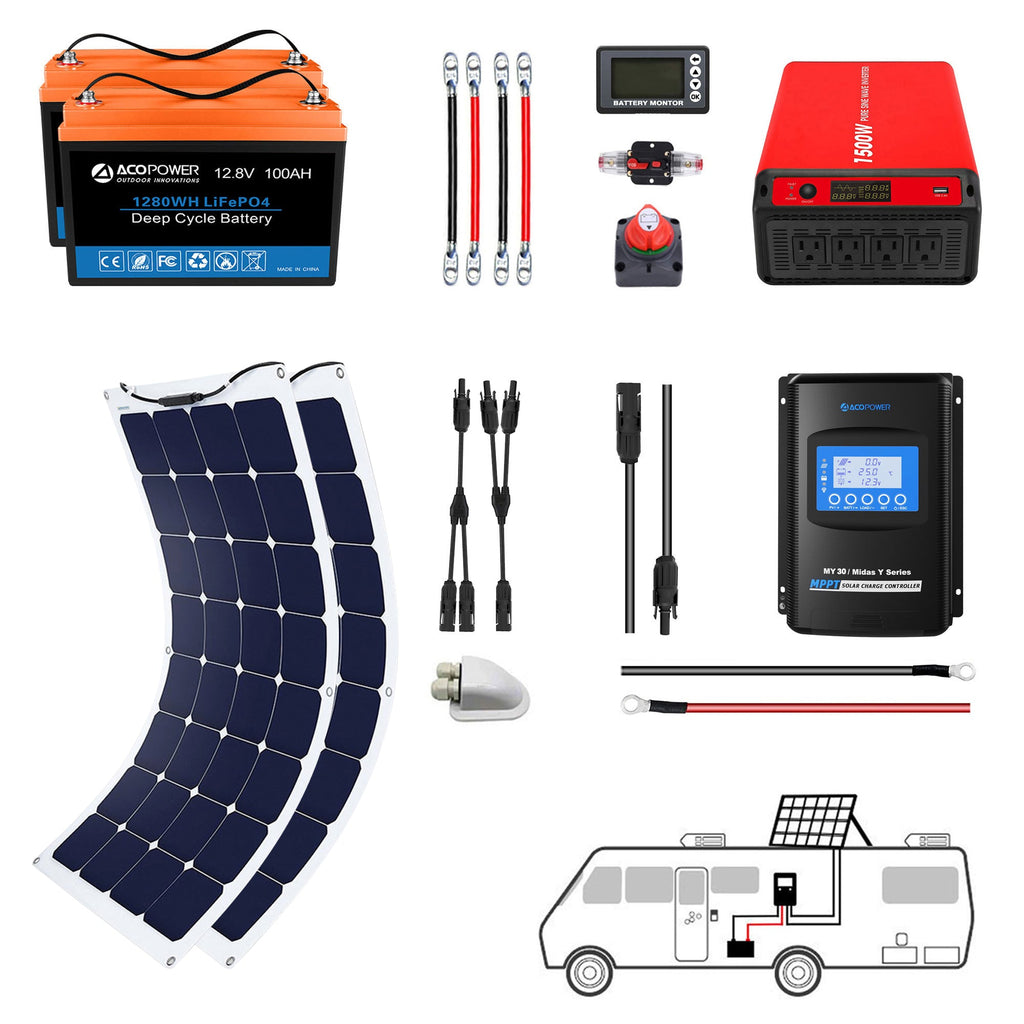

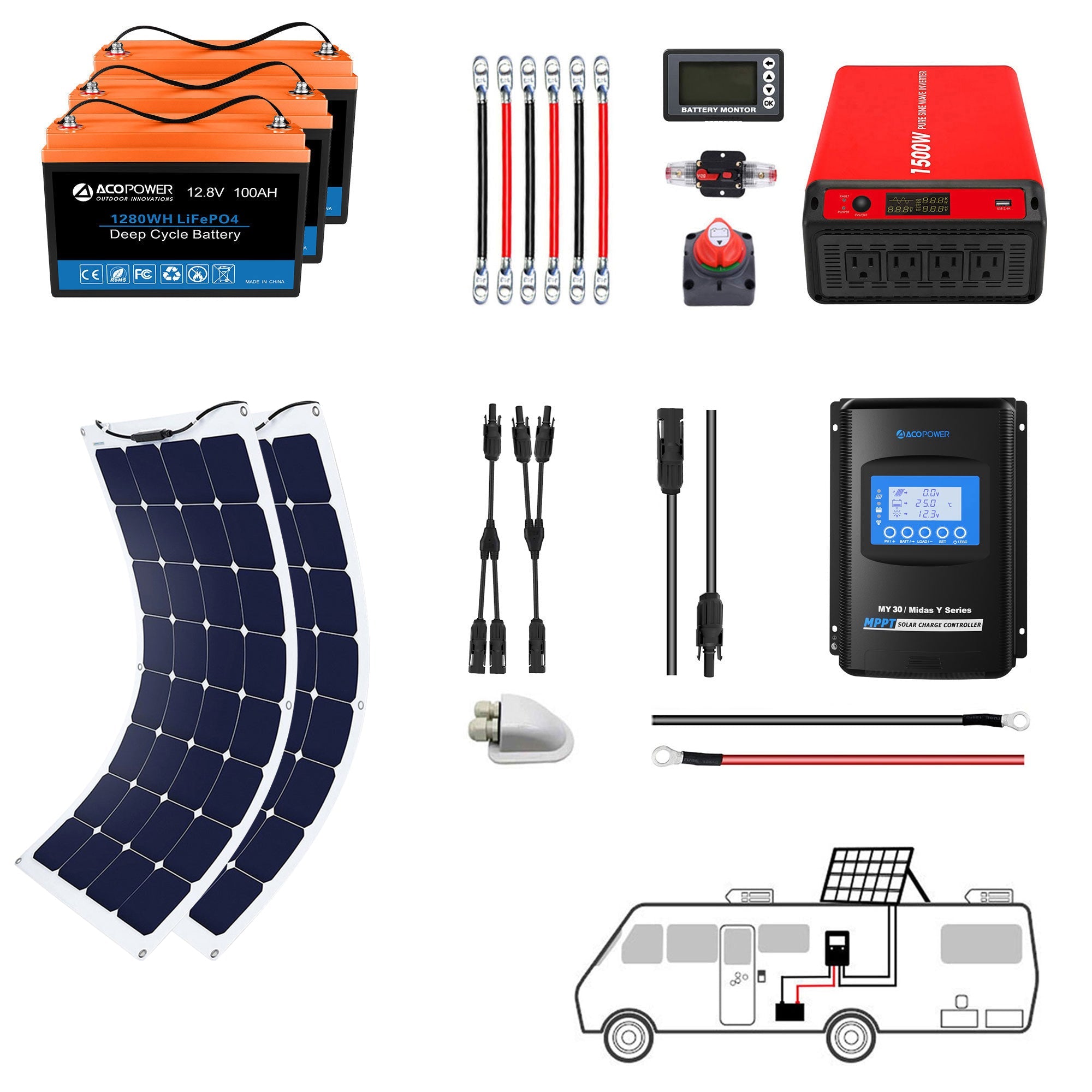

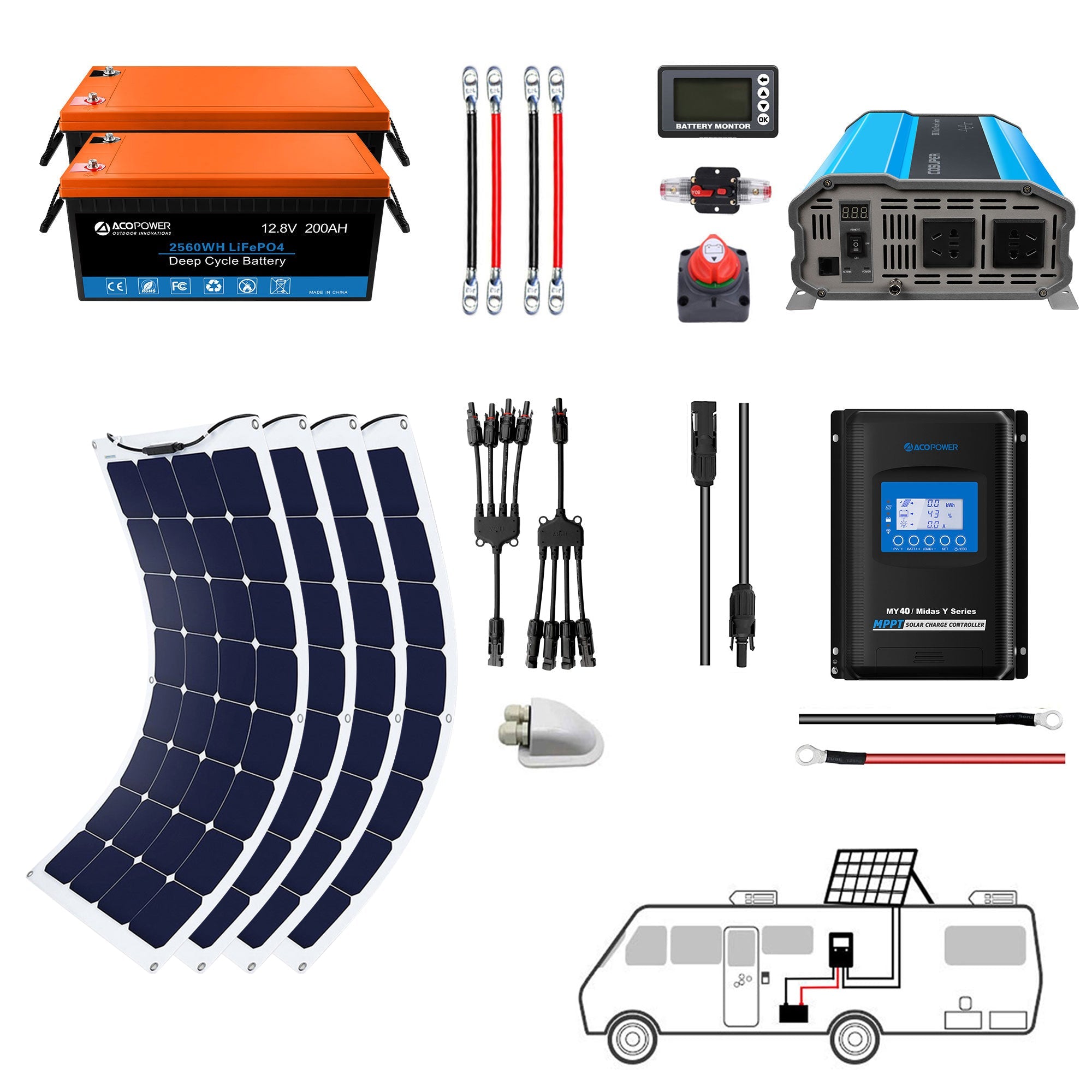

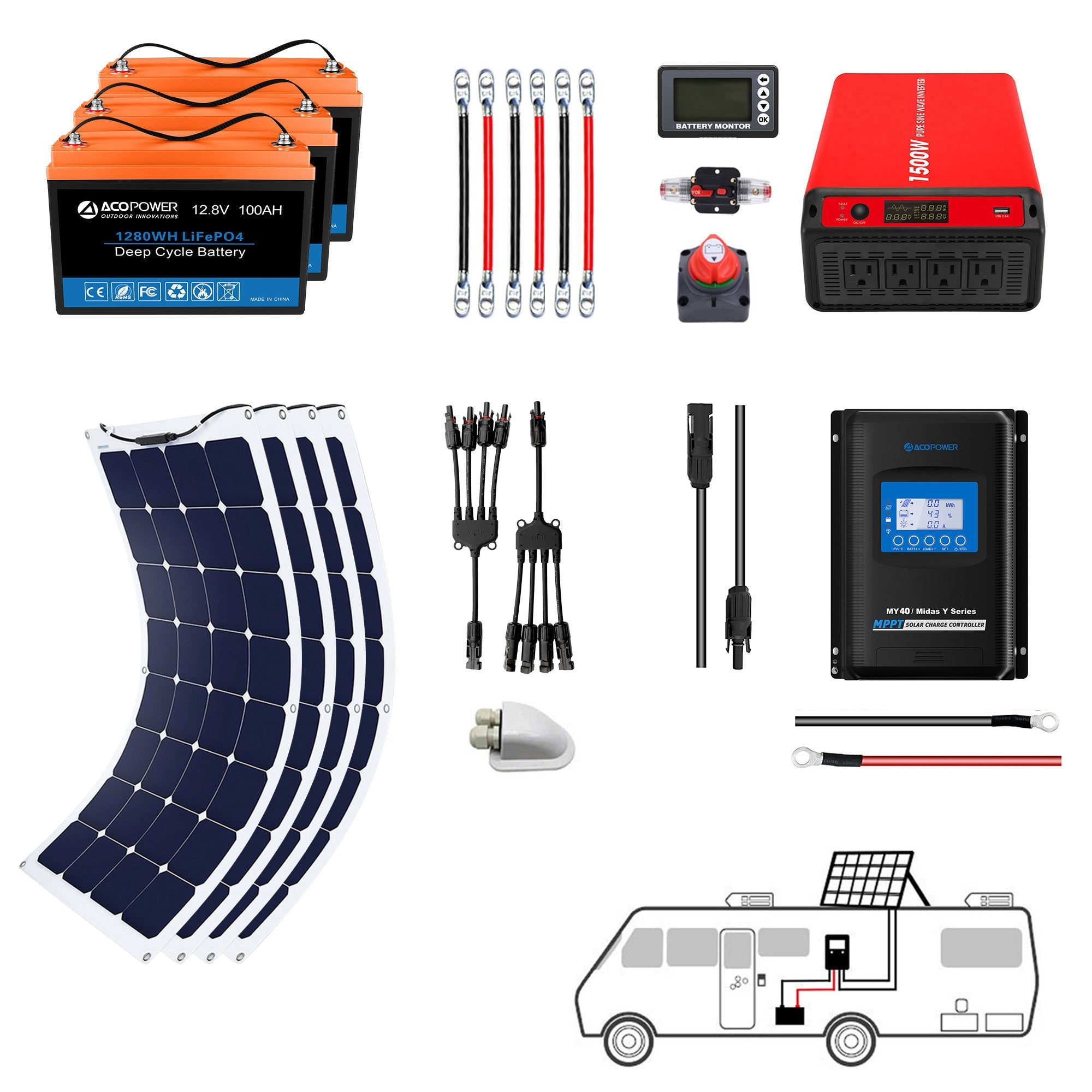

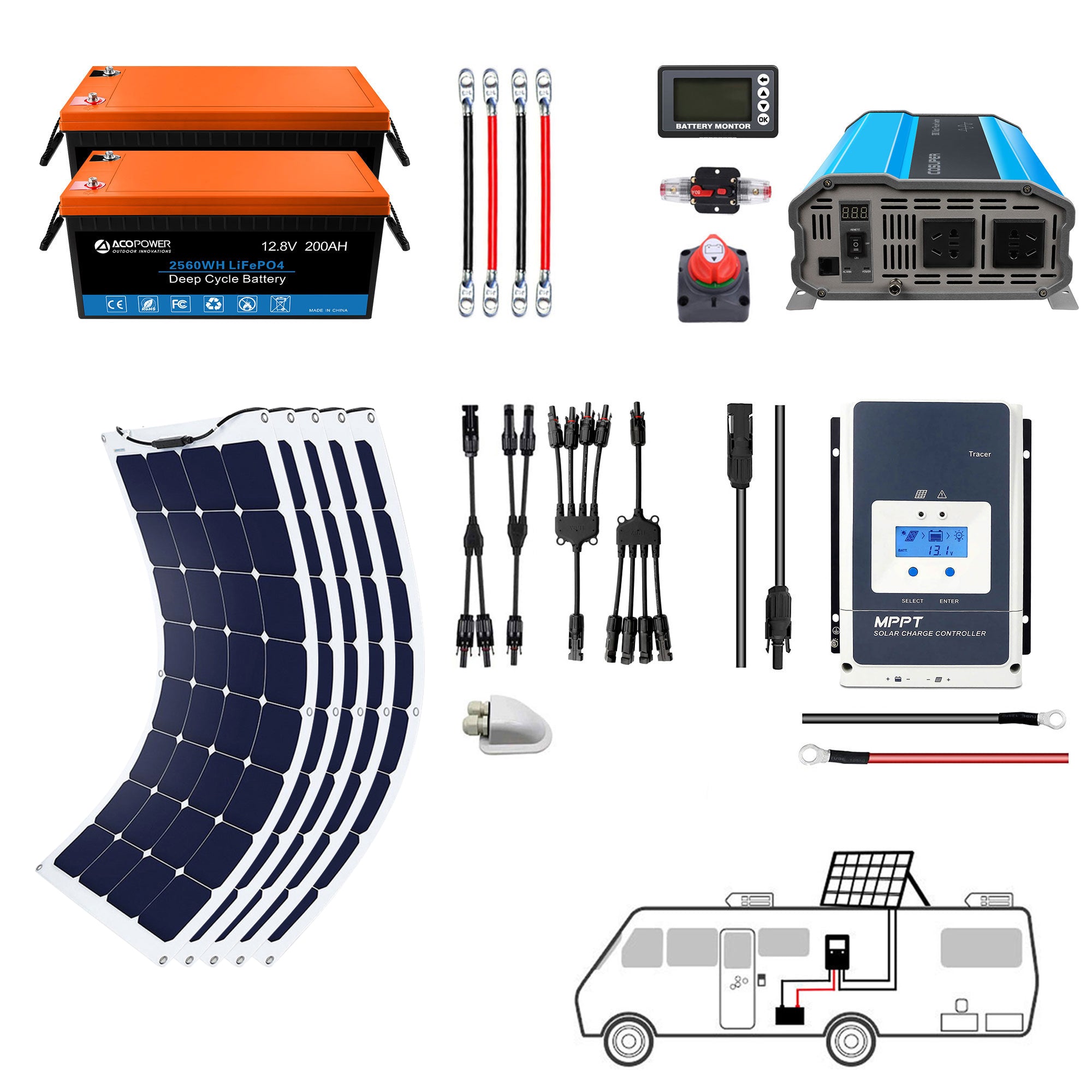

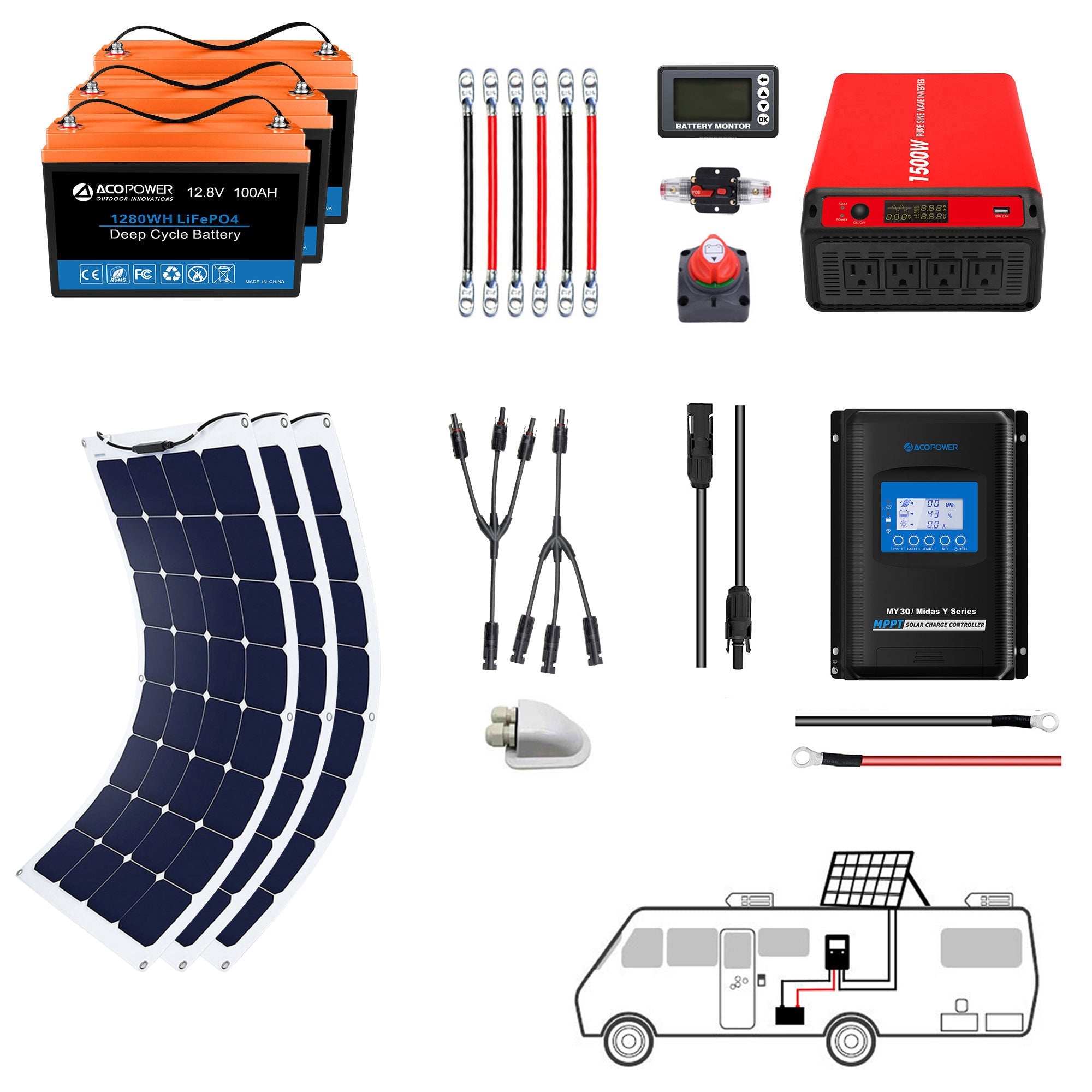

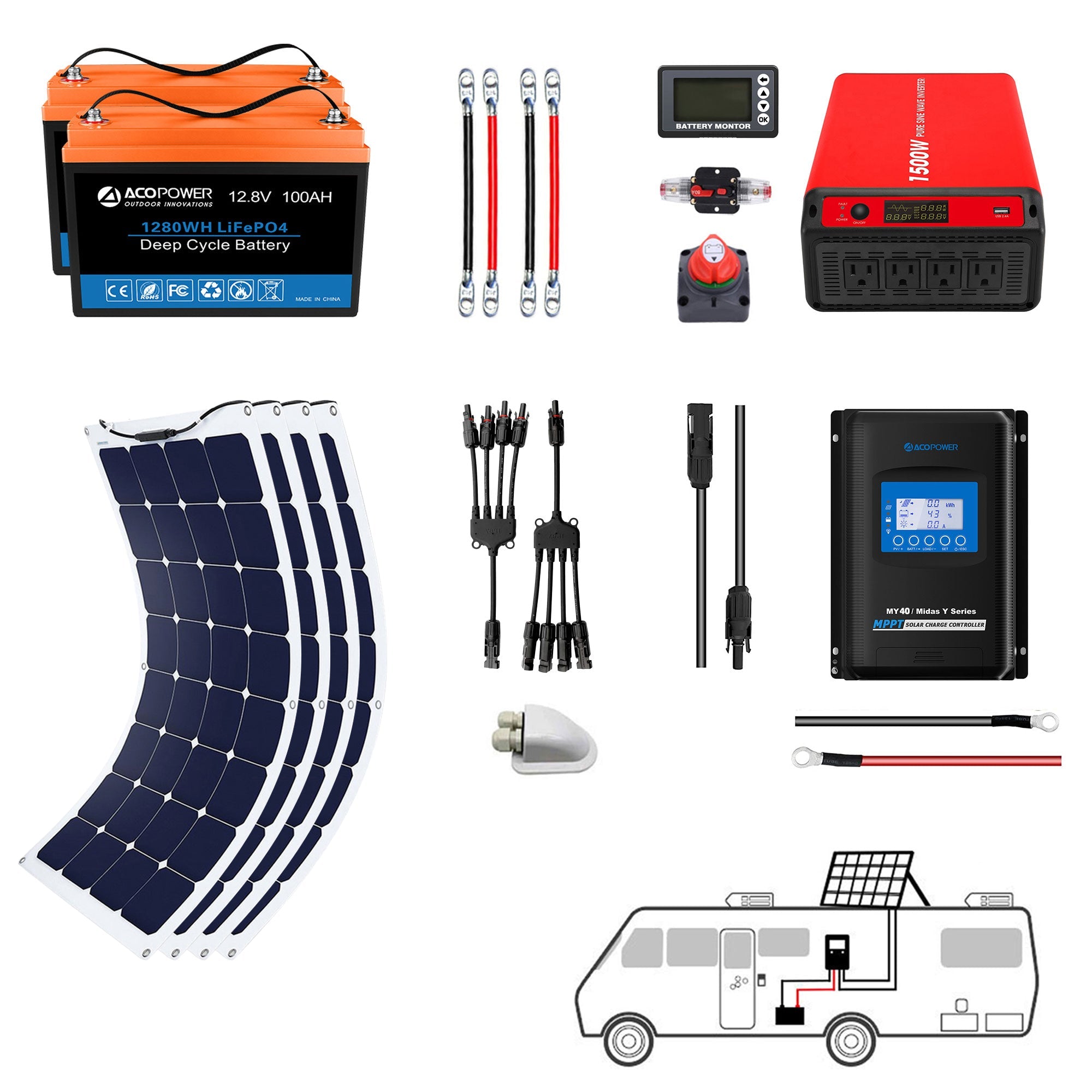

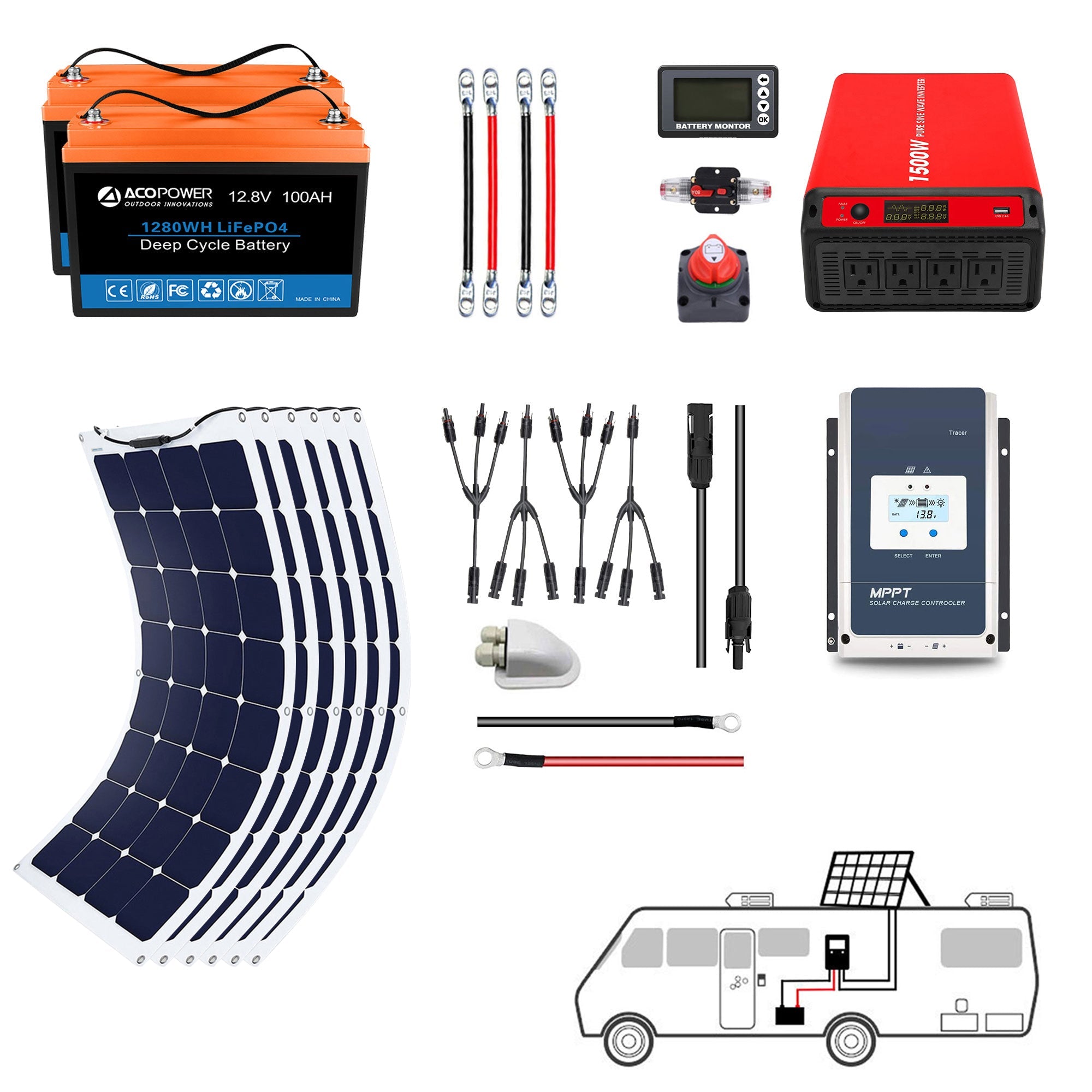

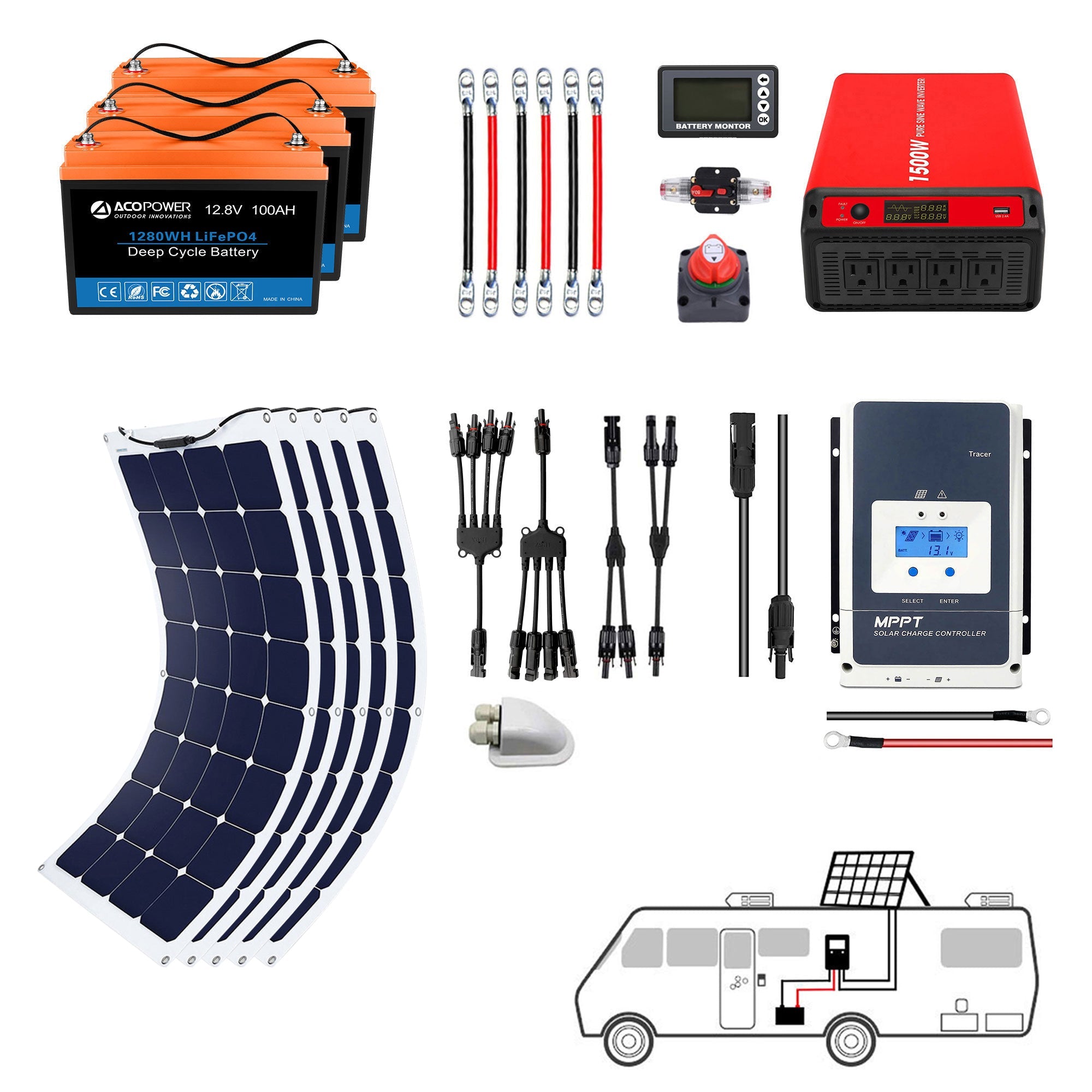

ACOPOWER Flexible RV Solar System

The ACOPOWER 330 Watt Flexible RV Solar System includes everything you need to start generating free, clean solar power—ideal for RVs, boats, cabins, and backup power solutions.

Specifications:

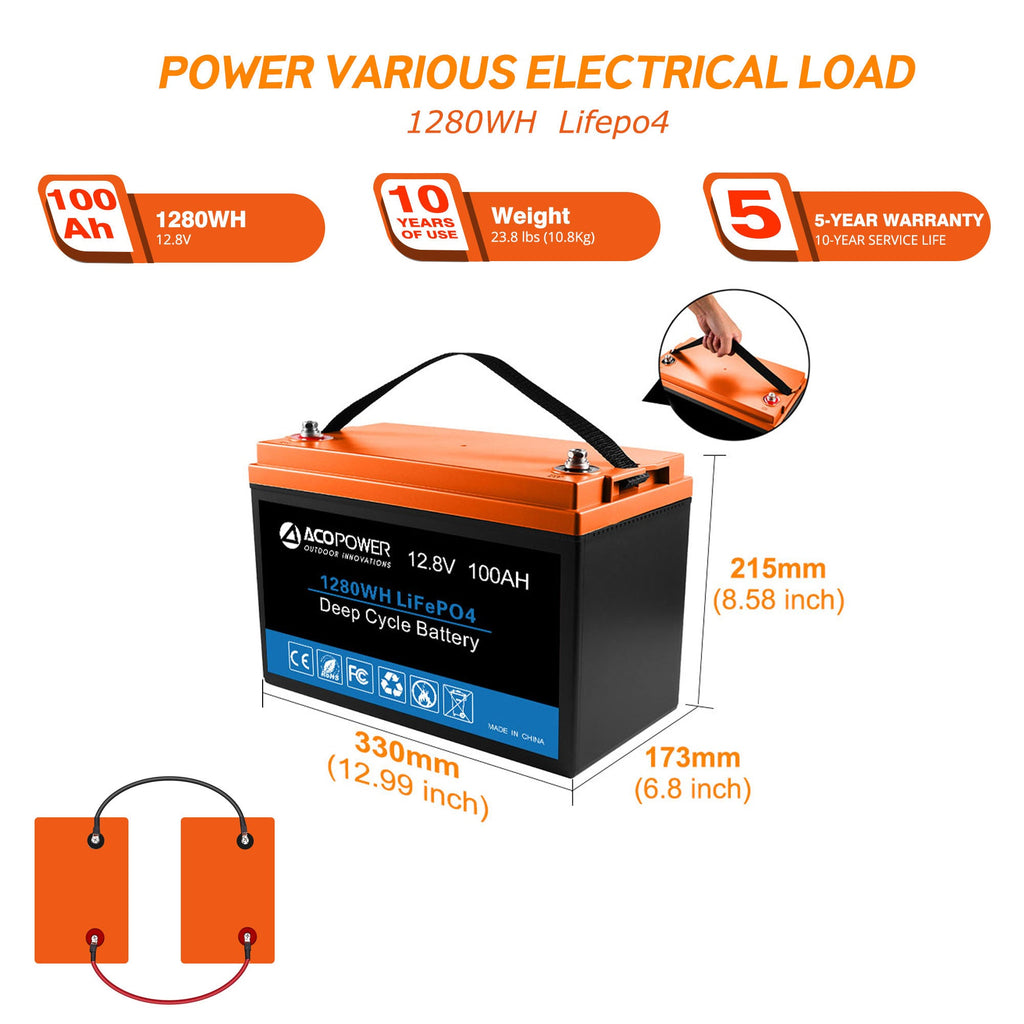

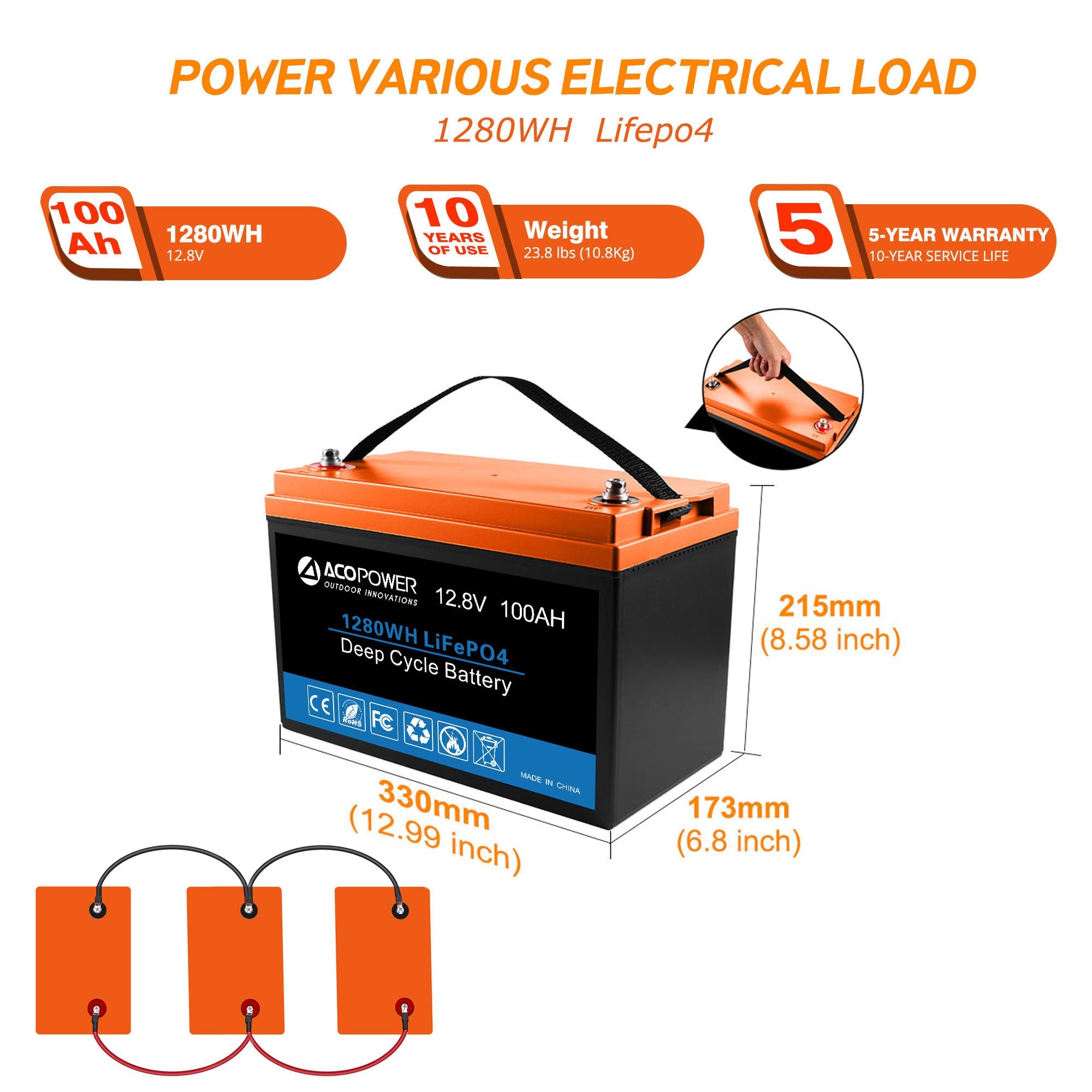

12V 100Ah LiFePO4 Deep Cycle Lithium Battery

• Rated Voltage: 12.8V

• Charge Voltage: 14.2 - 14.6V

• Capacity: 1280Wh

• Depth of Discharge (DoD): 100%

• Standard Charge Current: 20A

• Max Continuous Charge Current: 50A

• Max Continuous Discharge Current: 100A

• Dimensions: 12.99 x 6.81 (W) x 8.58 (H) inches

• Weight: Approx. 23.8 lbs

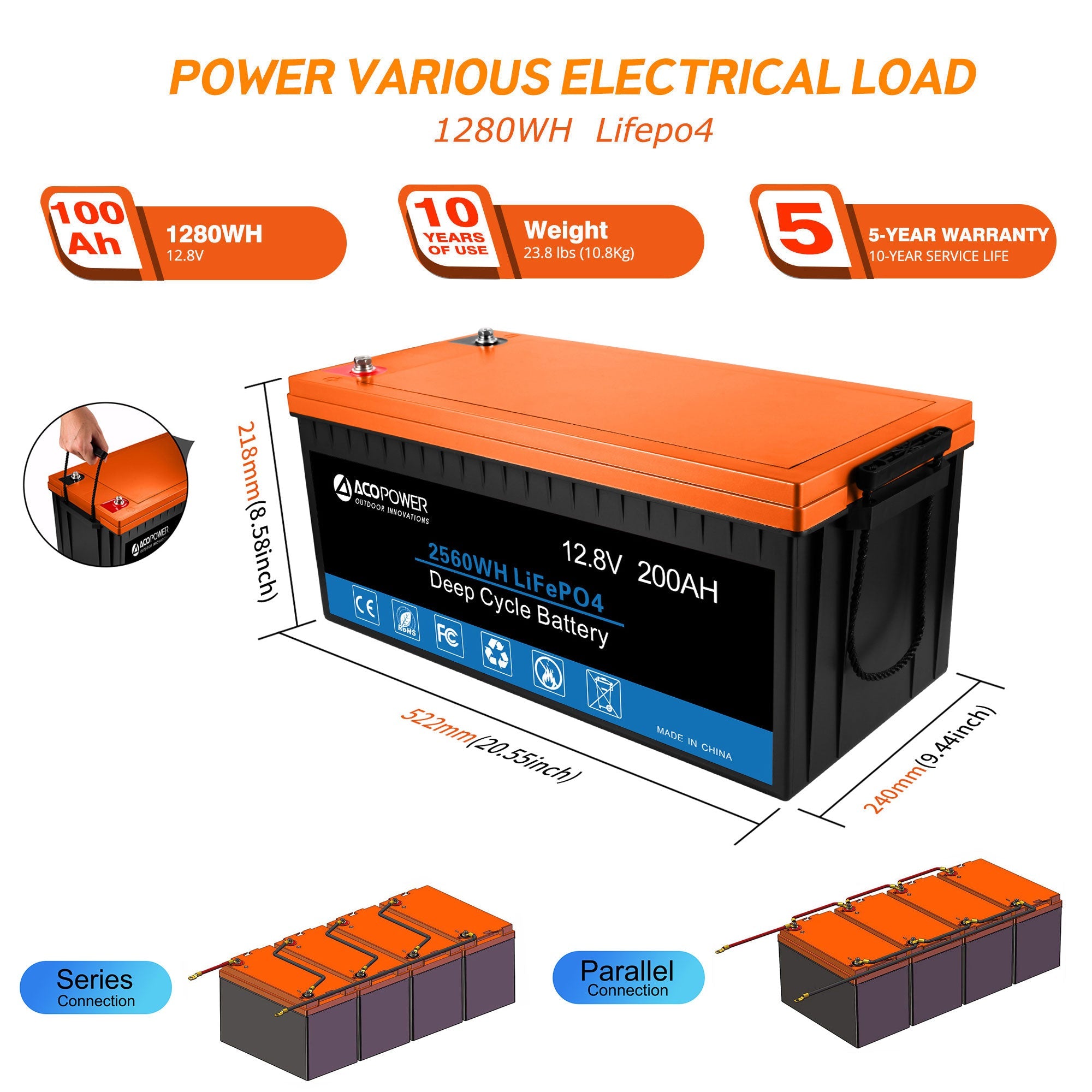

12V 200Ah LiFePO4 Deep Cycle Lithium Battery

• Rated Voltage: 12.8V

• Charge Voltage: 14.2 - 14.6V

• Capacity: 2560Wh

• Depth of Discharge (DoD): 100%

• Standard Charge Current: 50A

• Max Continuous Charge Current: 100A

• Max Continuous Discharge Current: 200A

• Dimensions: 20.55 x 9.44 (W) x 8.58 (H) inches

• Weight: Approx. 48.94 lbs

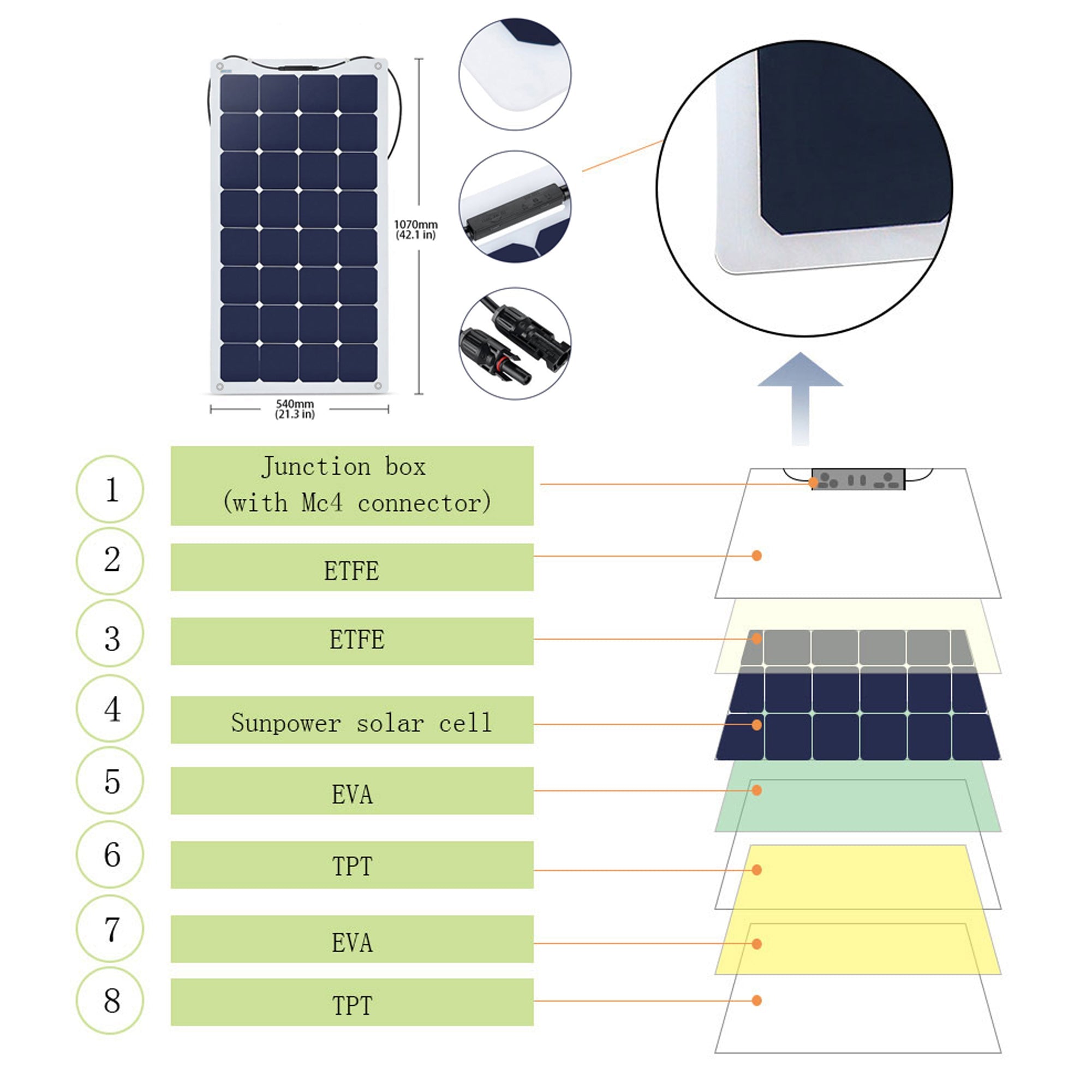

110W Semi-Flexible Solar Panel

• Peak Power (Pmax): 110W

• Peak Circuit Voltage (Voc): 20.8V

• Max Power Voltage (Vmp): 17.6V

• Short Circuit Current (Isc): 6.87A

• Max Power Current (Imp): 6.25A

• Weight: 4.85 lbs

• Dimensions: 44.68 x 21.26 x 0.12 inches

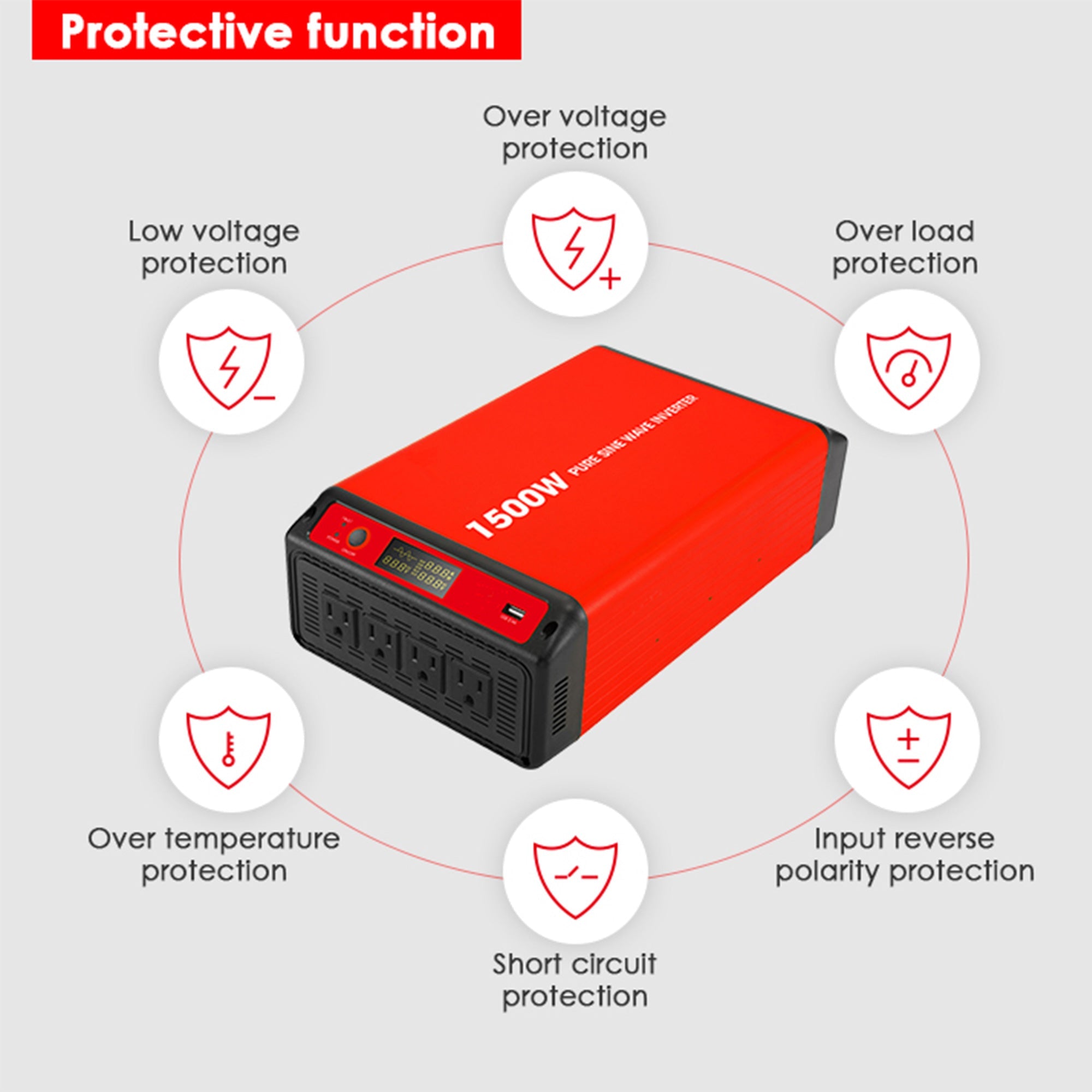

1500W Pure Sine Wave Inverter

• Continuous Output: 1500W

• Surge Power: 3000W

• Waveform: Pure Sine Wave

• Protection: Under-voltage, Over-voltage, Overload, Short circuit

• Weight: 7.79 lbs

• Dimensions: 12.94+1.34 (D) x 7.52 (W) x 3.86 (H) inches

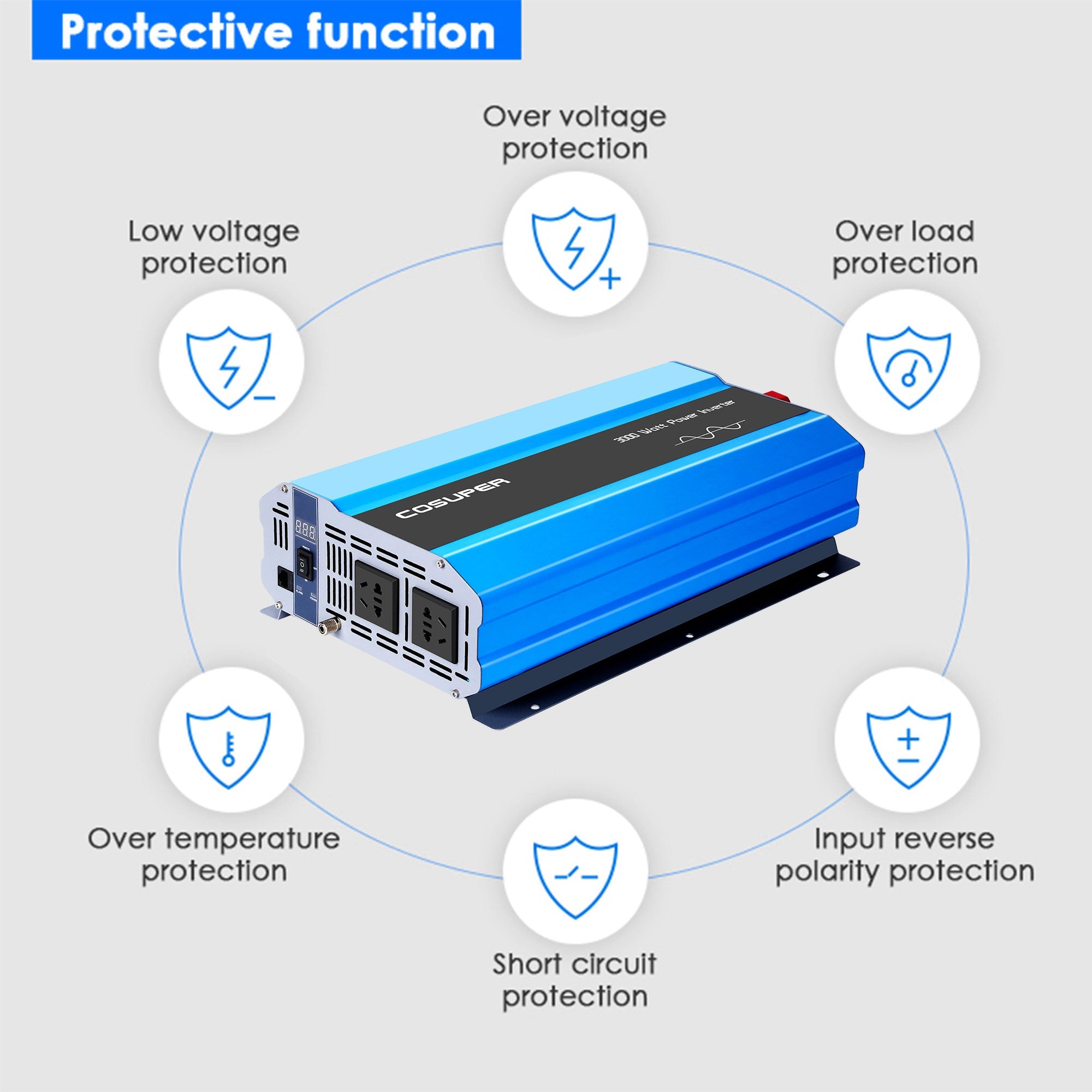

3000W Pure Sine Wave Inverter

• Continuous Output: 3000W

• Surge Power: 6000W

• Waveform: Pure Sine Wave

• Protection: Under-voltage, Over-voltage, Overload, Short circuit

• Weight: 12.1 lbs

• Dimensions: 18.23 (D) x 9.53 (W) x 4.65 (H) inches

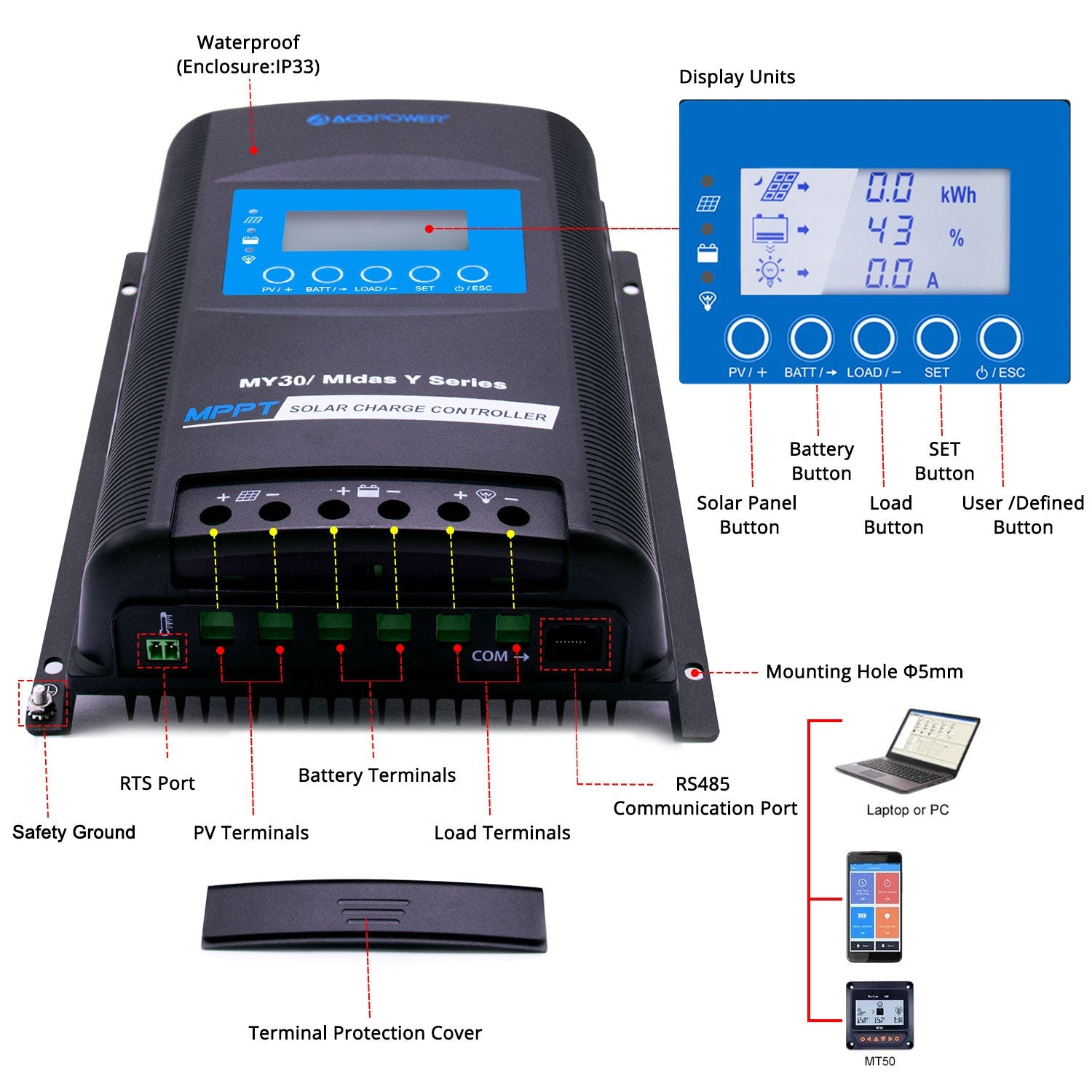

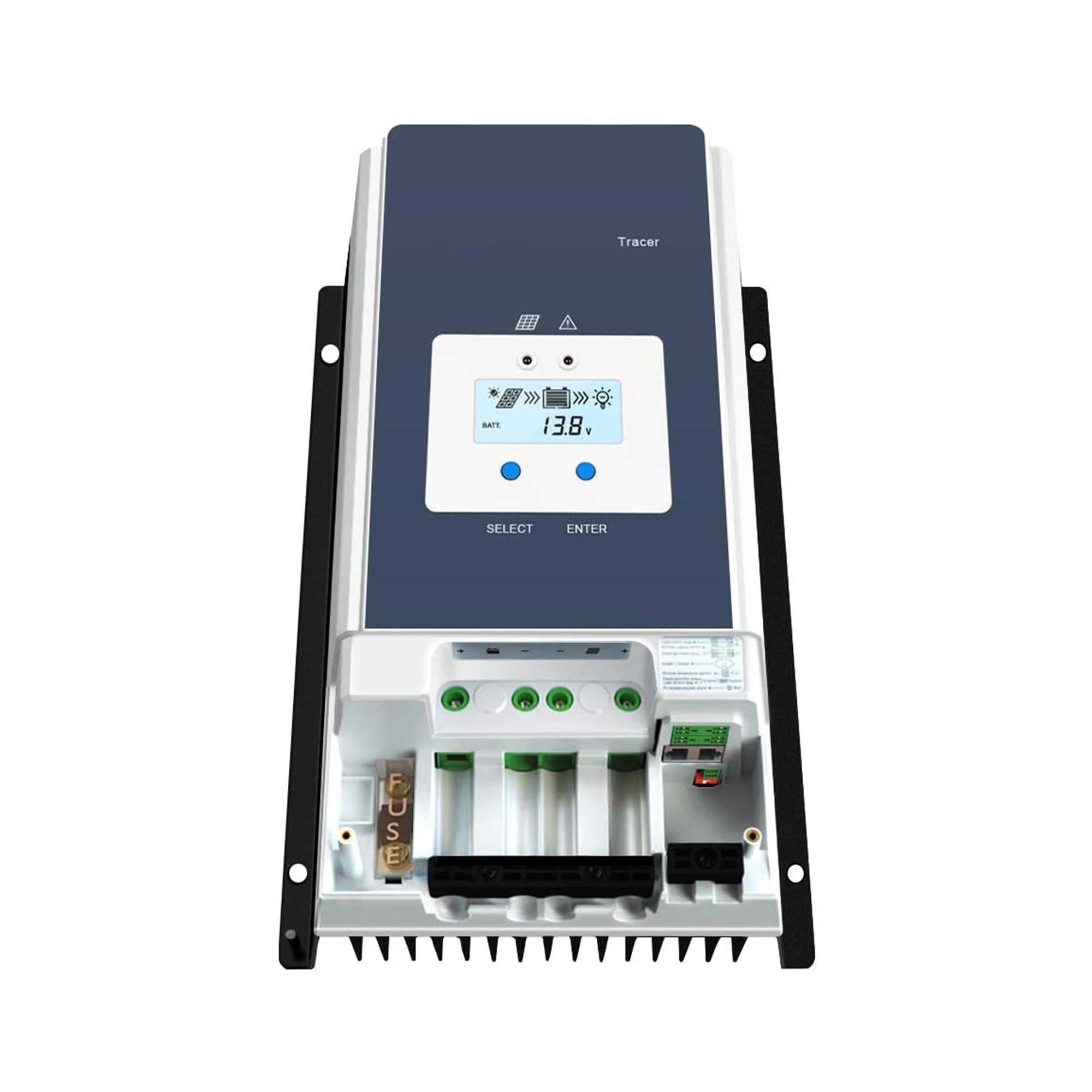

MPPT Solar Charge Controllers:

• 30A Controller:
  Rated charge current: 30A
  Battery voltage: 8V–32V
  Max PV open circuit voltage: 100VDC
  Max PV input power: 12V/390W, 24V/780W
  Compatible with sealed, gel, flooded, and lithium-ion batteries including LiFePO4.

• 40A Controller:
  Rated charge current: 40A
  Battery voltage: 8V–32V
  Max PV open circuit voltage: 100VDC
  Max PV input power: 12V/520W, 24V/1040W
  Compatible with sealed, gel, flooded, and lithium-ion batteries including LiFePO4.

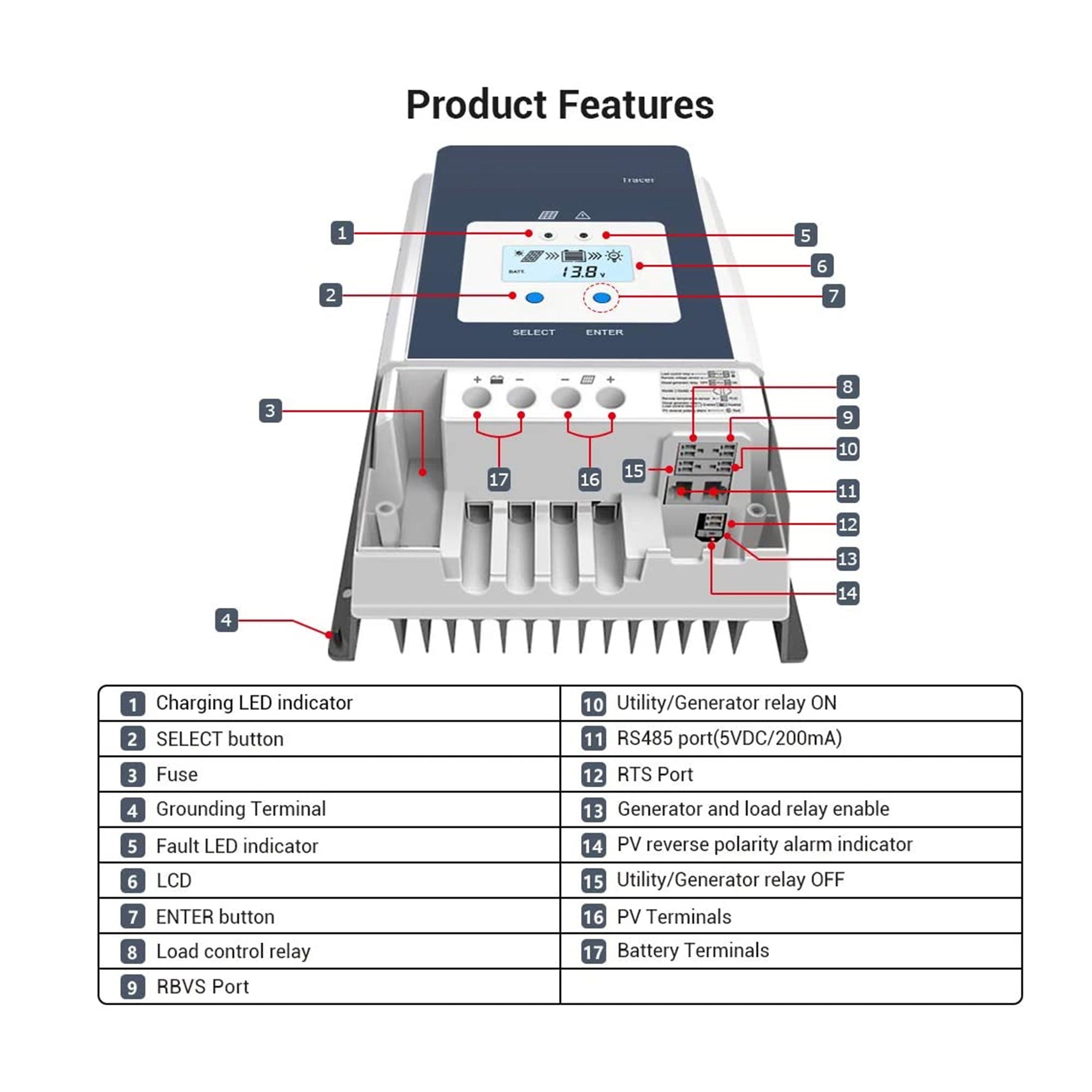

• 50A Controller:
  Rated charge current: 50A
  Battery voltage: 8V–68V
  Max PV open circuit voltage: 150V
  Max PV input power: 12V/625W, 24V/1250W, 36V/1875W, 48V/2500W
  Compatible with sealed (default), gel, flooded, user-defined lead-acid, and lithium-ion batteries.

• 60A Controller:
  Rated charge current: 60A
  Battery voltage: 8V–68V
  Max PV open circuit voltage: 150V
  Max PV input power: 12V/750W, 24V/1500W, 36V/2250W, 48V/3000W
  Compatible with sealed (default), gel, flooded, user-defined lead-acid, and lithium-ion batteries.
