The ACOPOWER 200W Poly RV Solar System includes everything you need to start generating clean, free energy from the sun! Ideal for RVs, boats, cabins, and backup power needs, this solar-powered system is designed for reliable off-grid use.
Specifications:
-

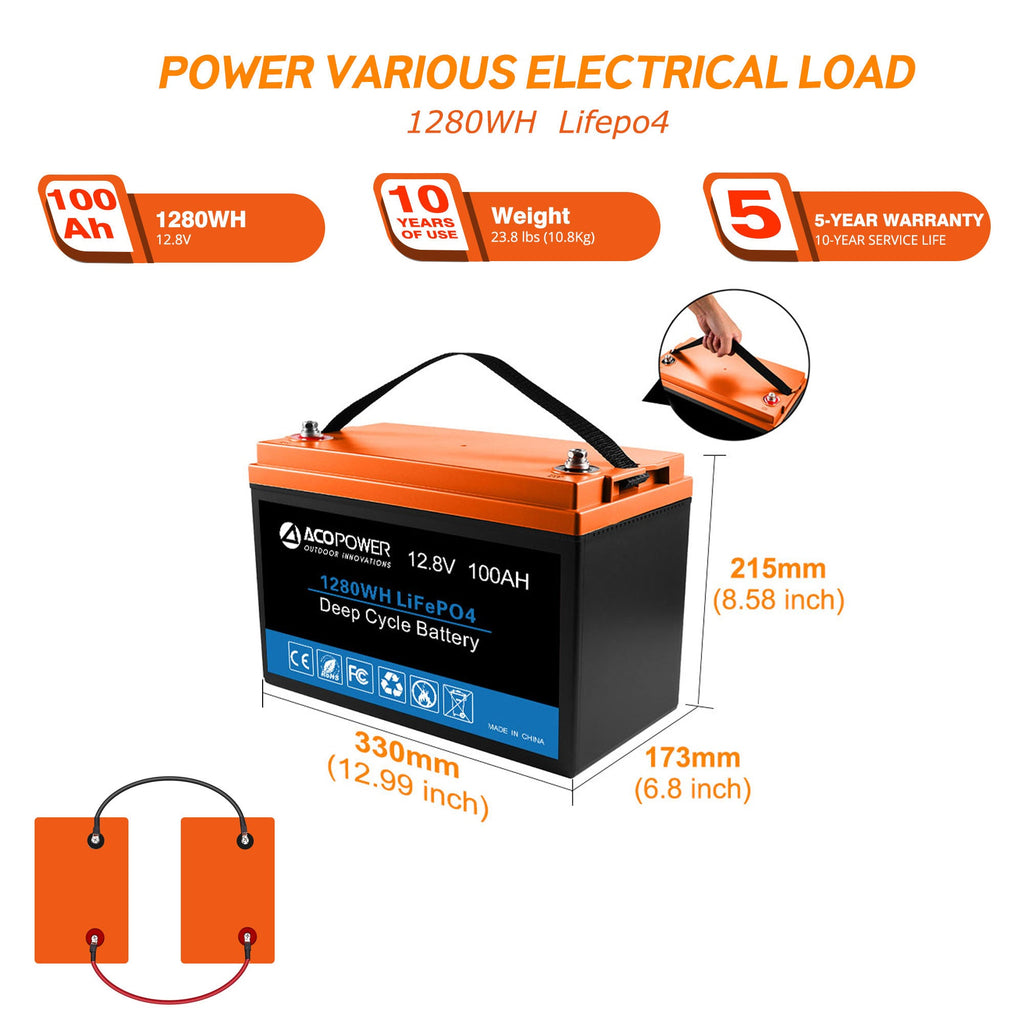

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated Voltage: 12.8V
Charge Voltage: 14.2 - 14.6V
Battery Capacity: 1280Wh
Depth of Discharge: 100%
Standard Charge Current: 20A
Max Continuous Charge Current: 50A
Max Continuous Discharge Current: 100A
Dimensions (in): 12.99 x 6.81 (W) x 8.58 (H)
Approximate Weight: 23.8 lbs
-

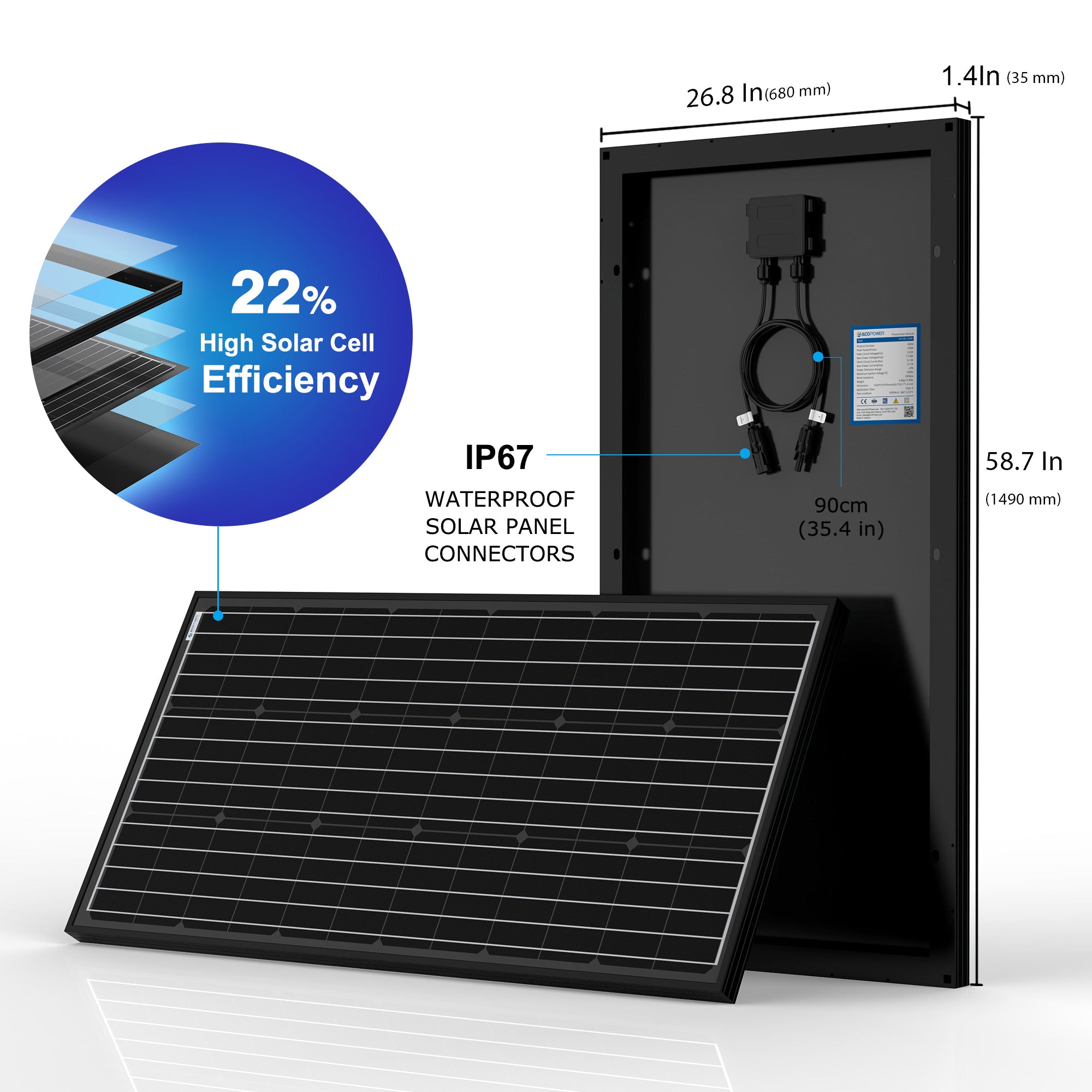

200W Monocrystalline Solar Panel
Designed for 12V battery charging
Peak Power (Pmax): 200W
Peak Circuit Voltage (Voc): 24.3V
Max Power Voltage (Vmp): 20.4V
Short Circuit Current (Isc): 10.2A
Max Power Current (Imp): 9.8A
Weight: 26.5 lbs
Dimensions (in): 58.7 x 26.8 x 1.4
-

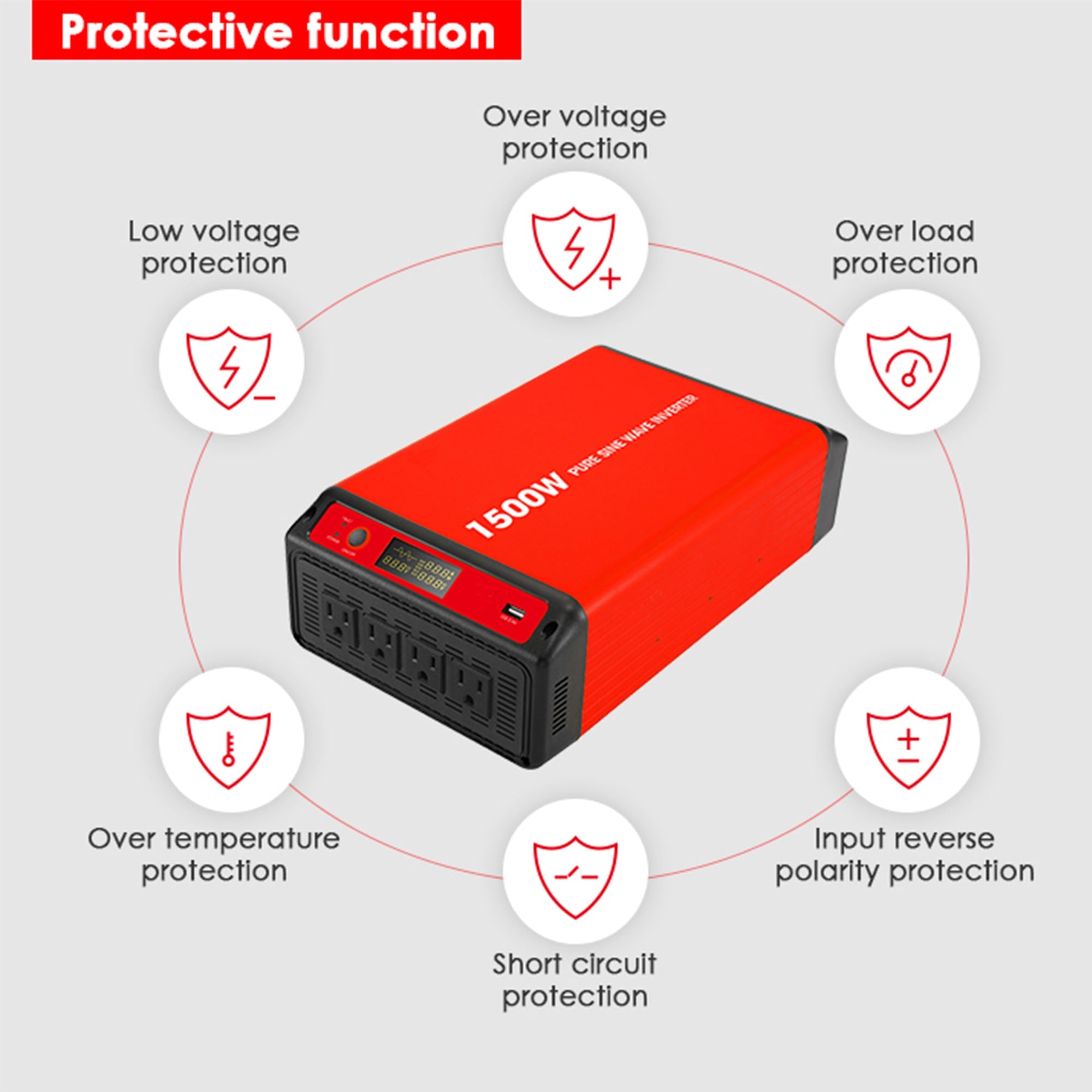

1500W Pure Sine Wave Inverter
Continuous Output: 1500W
Surge Power: 3000W
Waveform: Pure Sine Wave
Protection: Under-voltage, Over-voltage, Overload, Short Circuit
Weight: 7.79 lbs
Dimensions (in): 12.94 + 1.34 (D) x 7.52 (W) x 3.86 (H)
-

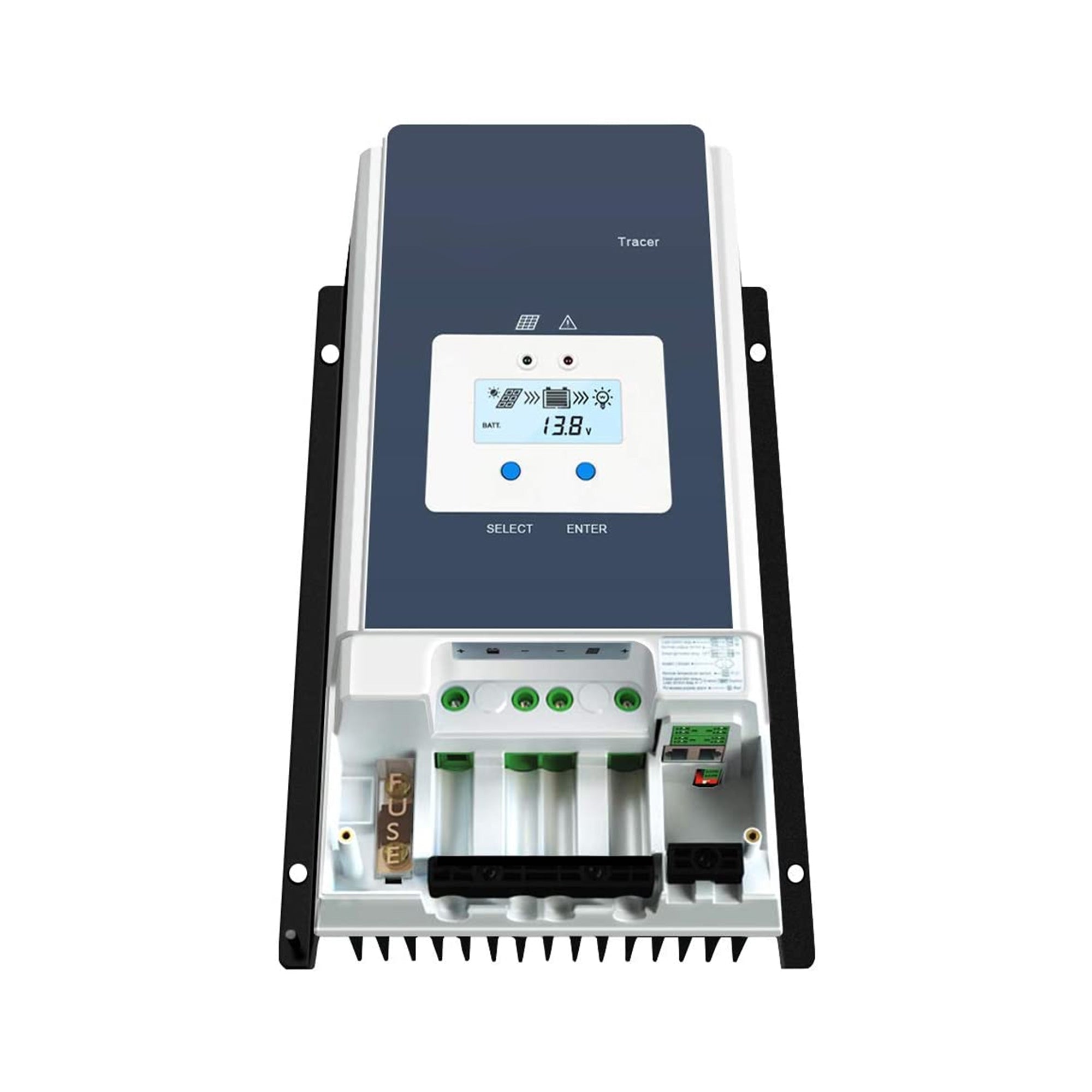

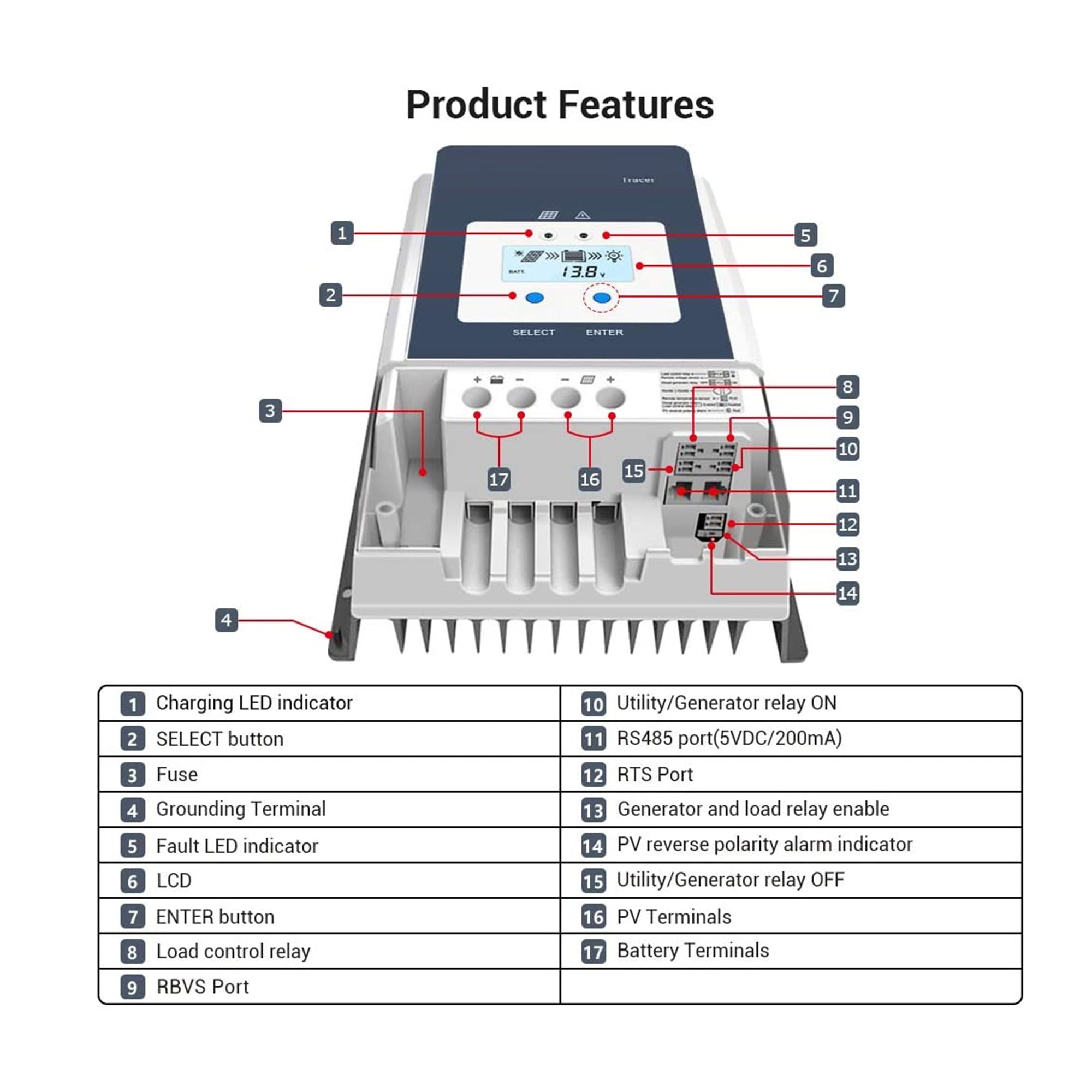

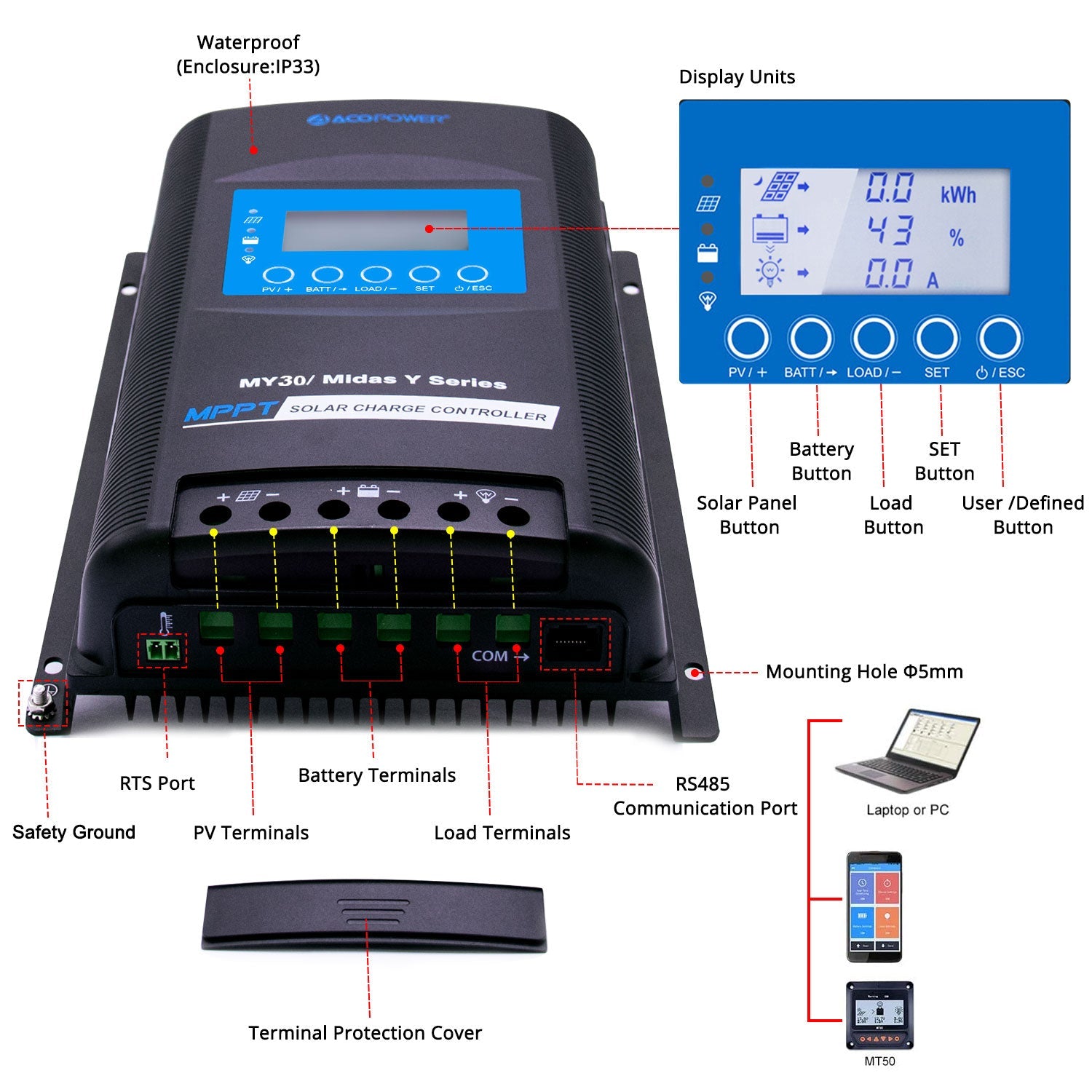

30A MPPT Solar Charge Controller
Rated Charge Current: 30A
Battery Voltage Range: 8V – 32V
Max PV Open Circuit Voltage: 100V DC
Max PV Input Power: 12V/390W, 24V/780W
Compatible with sealed, gel, flooded, and lithium-ion deep cycle batteries including LiFePO4
Features multiple load control methods

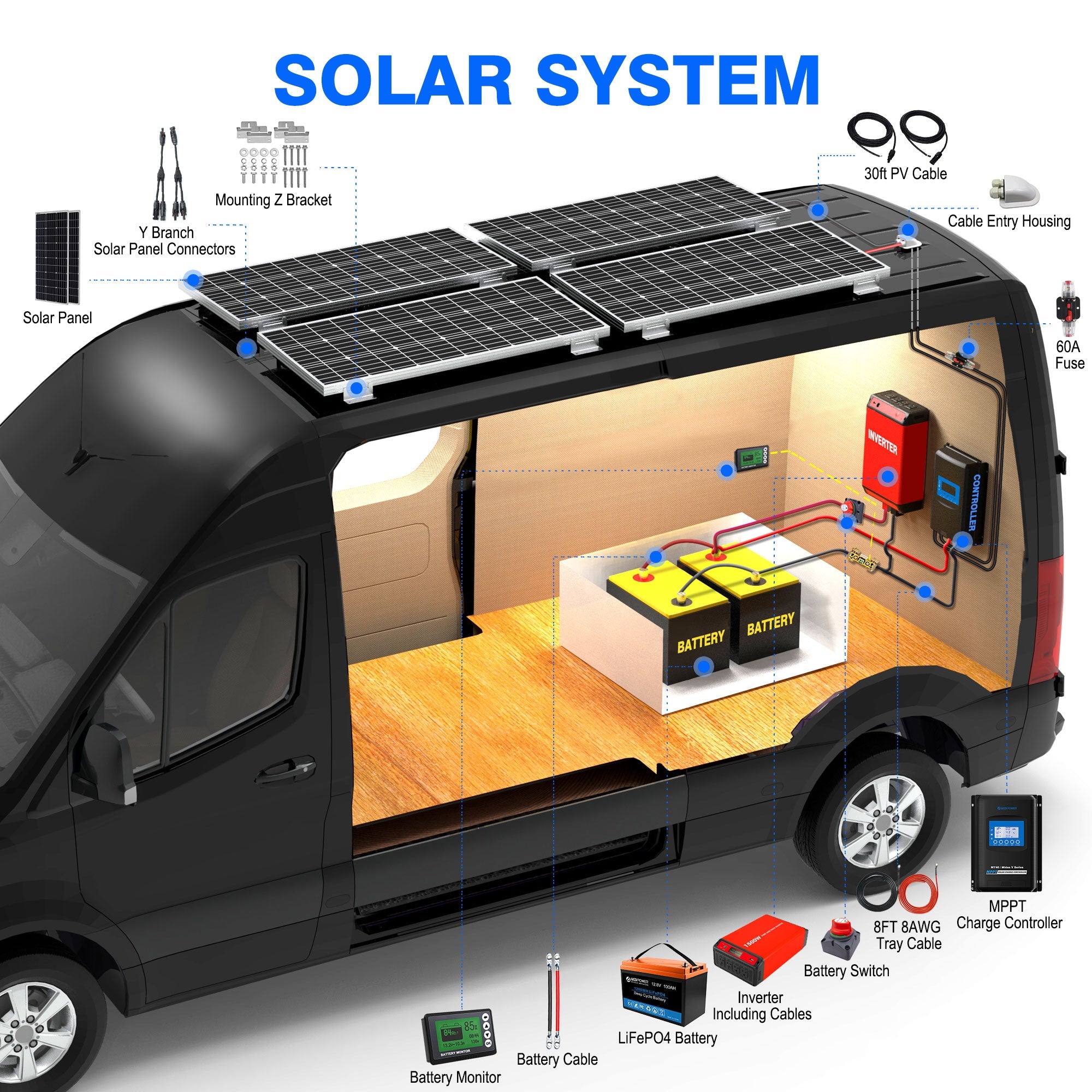

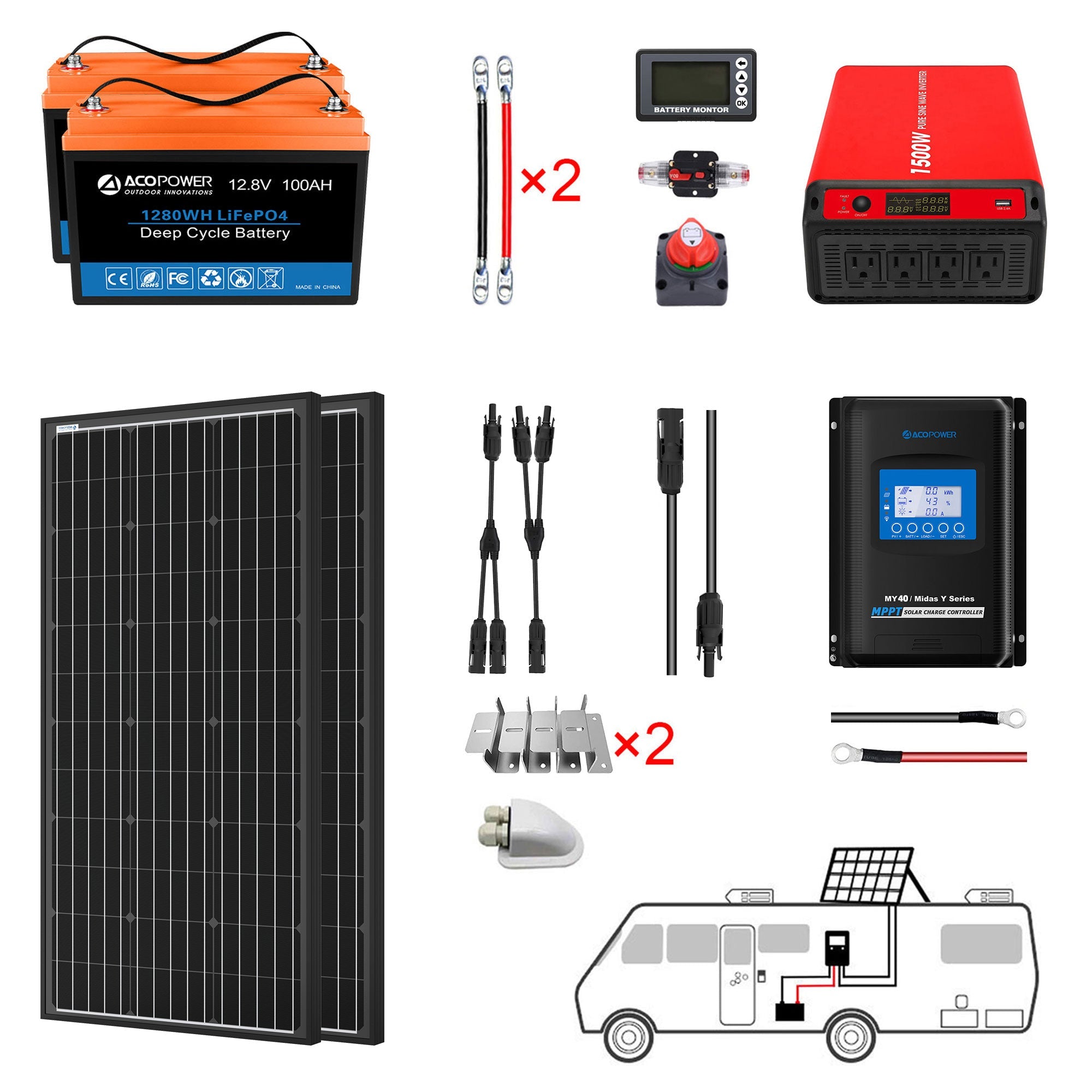

Package Includes:
-
2 x 100W Polycrystalline Solar Panels
-
1 x 1500W Inverter with cables
-
2 x 100Ah LiFePO4 Batteries
-
1 x 30A MPPT Charge Controller
-

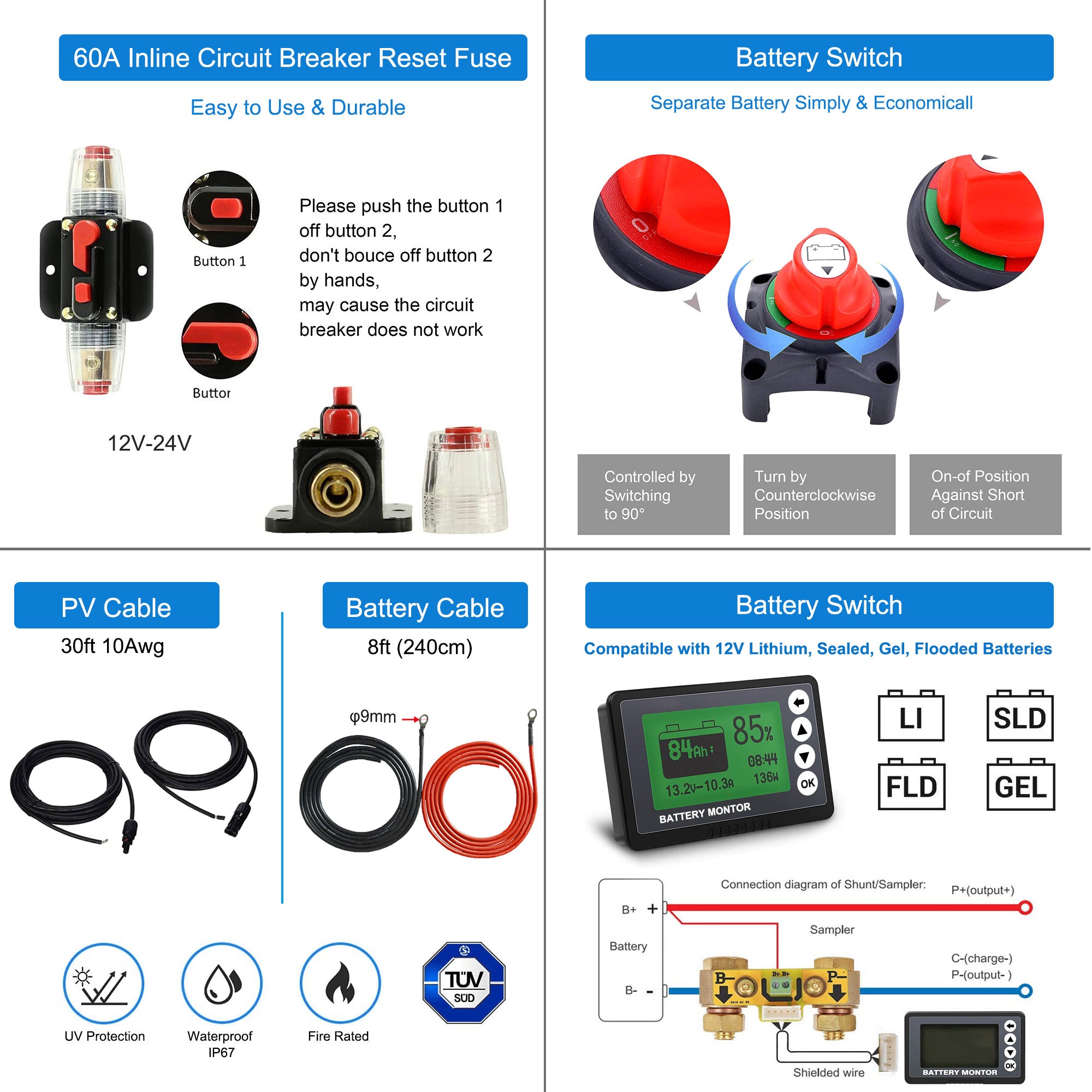

1 x 60A Fuse
-
1 x Battery Switch
-
1 x Battery Monitor
-
2 Sets Mounting Z Brackets
-
1 Pair 30ft PV Cable
-
2 Pairs 1ft 4AWG Battery Cables
-
1 Pair 8ft 8AWG Tray Cable
-
1 x Cable Entry Housing
