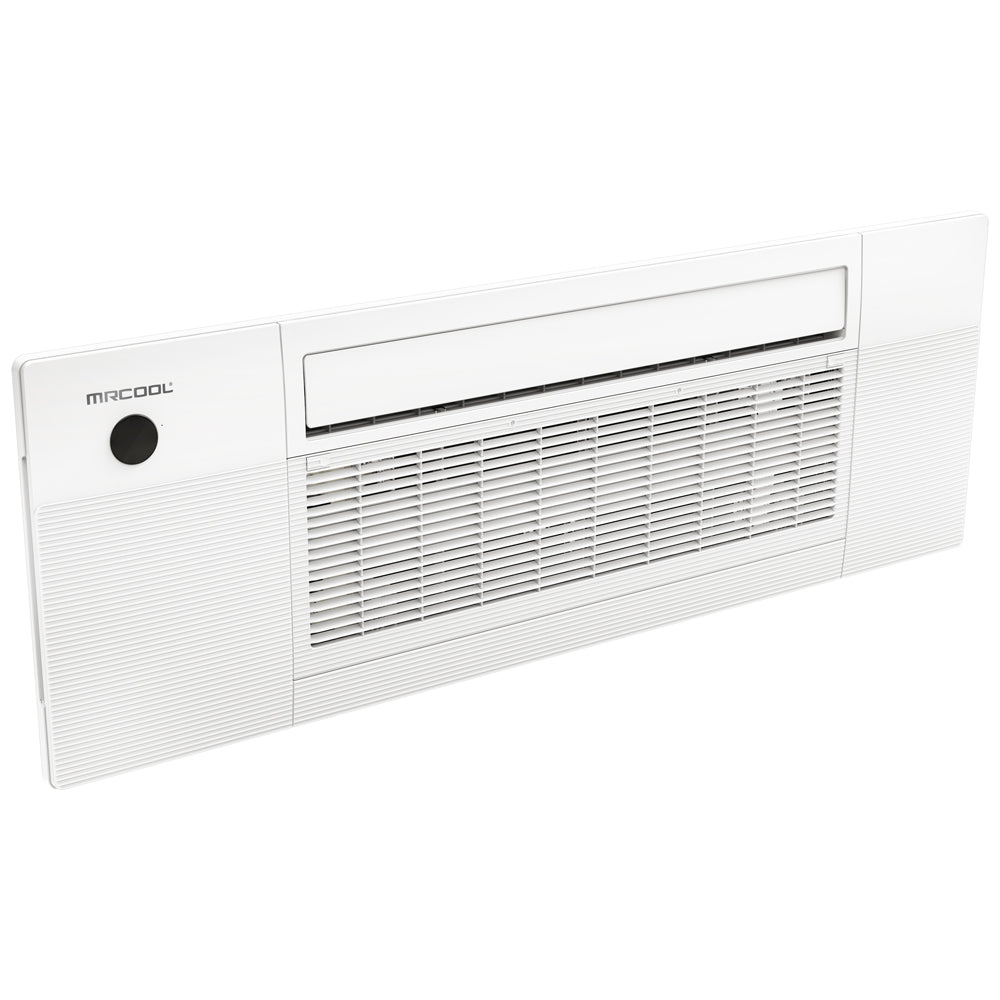

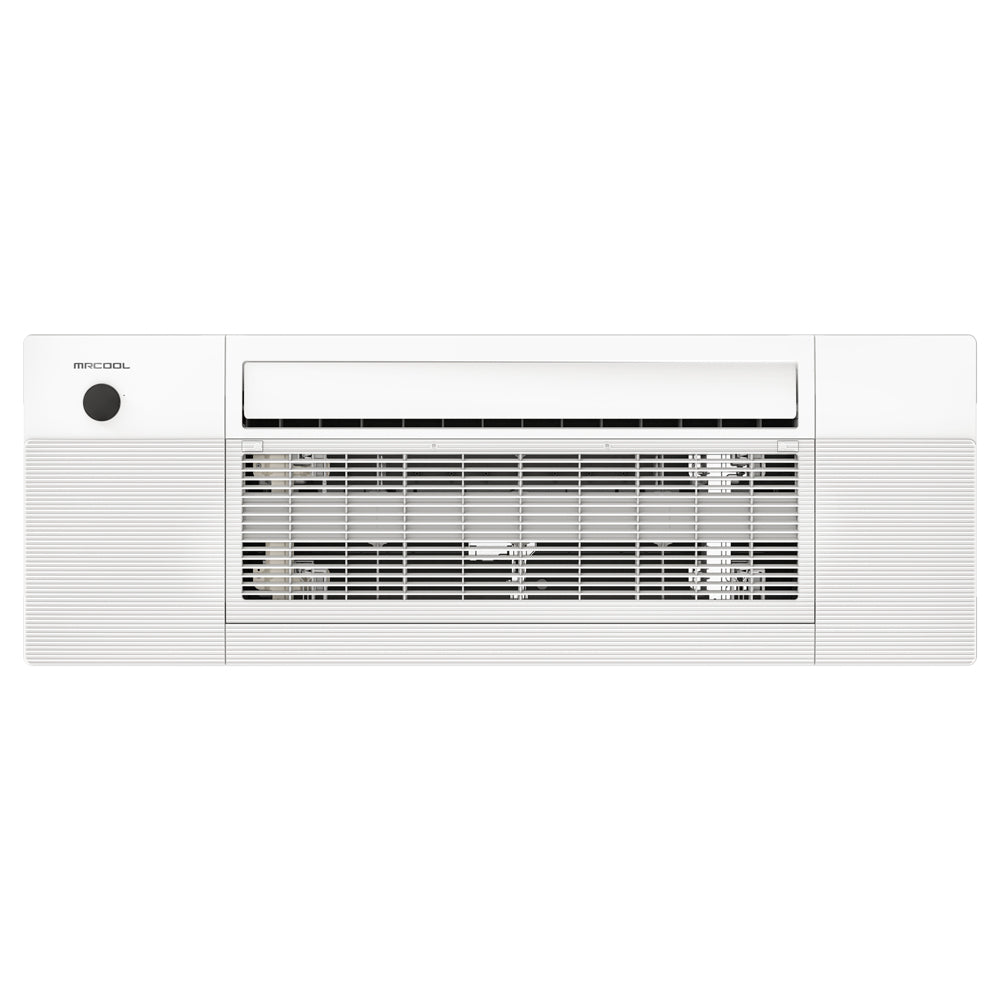

5th Generation MRCOOL® DIY® OuttaSight® 18K BTU 230V One-Way Ceiling Cassette
The 5th Generation MRCOOL® DIY® OuttaSight® 18K BTU Ceiling Cassette delivers efficient, powerful heating and cooling for spaces up to 800 sq. ft. Designed for simple, cost-effective DIY installation, it eliminates the need for specialized tools—making setup quick and hassle-free.
Key Features:
-
Coverage: Ideal for rooms up to 800 sq. ft.
-
Flush-Mount Design: Fits between standard 16" ceiling joists (including pre-manufactured I-joists) for a clean, modern appearance.
-
Flexible Installation: Works in both multi-zone and single-zone systems—perfect for new builds or retrofit projects.
-
Quick Connect® Ready: Pairs with MRCOOL® DIY® pre-charged Quick Connect® line sets using eco-friendly R-454B refrigerant—no vacuuming required.
-
Eco-Friendly Refrigerant: R-454B reduces environmental impact while maintaining efficiency.
-
Advanced Filtration: Improves indoor air quality for a healthier home environment.
-
Easy Maintenance: Elevation function lowers the filter panel for quick, convenient cleaning.
-
Quiet Operation: Runs smoothly with minimal noise for year-round comfort.
-
Smart Controls: Includes wireless remote, SmartHVAC app compatibility, and voice control via Amazon Alexa and Google Assistant.
Warranty:
-
Limited Lifetime Warranty on the unit.
-
7-Year Warranty on the compressor.
-
5-Year Warranty on parts.
Why Choose It?
The MRCOOL® OuttaSight® 18K BTU Ceiling Cassette blends energy-efficient performance, smart technology, and flexible installation—offering a long-lasting comfort solution that fits seamlessly into any space
|
WORKS WITH |
DIY 5th Gen Systems |
|
FEATURE LIST |
|
|
CFM |
400 / 352 / 300 / 207 / 207 |
|
COOLING CAPACITY (BTU) |
18800 |
|
HEATING CAPACITY (BTU) |
22700 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Ceiling |
|
COLOR |
White |
|
RATED LOAD |
1.2 |
|
MAX COVERAGE AREA |
800 |
|
REFRIGERANT TYPE |
R-454B |
|
DECIBEL RATING (DBA) |
41.5 |
|
DECIBEL RATING LOW (DBA) |
26 |
|
DECIBEL RATING HIGH (DBA) |
44 |
|
AIR FLOW DIRECTION |
1-Way |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
1/2 |
|
BLOWER MOTOR RPM |
1344/1184/1024 |
|
FILTER TYPE |
Reusable |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
SLEEP MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-Year Part/7-Year Compressor |
|
BASE PARTS WARRANTY |
5 Years |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
GU;PR;VI |
|
NET DEPTH (IN) |
13.19 |
|
NET HEIGHT (IN) |
8.98 |
|
NET WIDTH (IN) |
50.31 |
|
NET WEIGHT (LBS) |
45 |
|
GROSS DEPTH (IN) |
22.48 |
|
GROSS HEIGHT (IN) |
22.64 |
|
GROSS WIDTH (IN) |
57.6 |
|
GROSS WEIGHT (LBS) |
88 |
|
