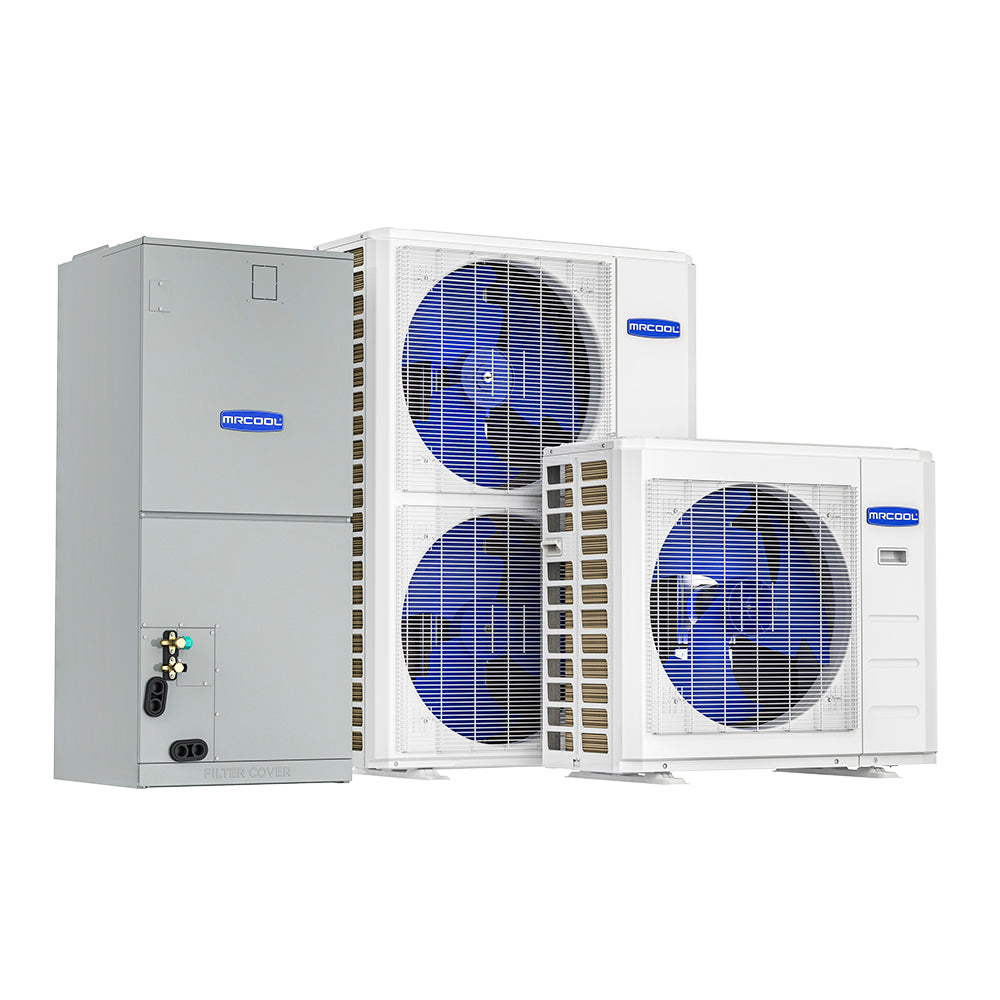

60K MRCOOL® Hyper Heat Central Ducted Condenser
Enjoy dependable, year-round comfort with the 60K MRCOOL® Hyper Heat Central Ducted Condenser — built to perform in freezing winters and sweltering summers alike. This advanced system delivers powerful heating and cooling while keeping energy use in check.
Key Features:
-
High Efficiency: Up to 16 SEER2 and 9 HSPF2-4 for reliable performance and energy savings.
-
Advanced Technology: DC Inverter and variable speed operation ensure consistent comfort in all conditions.
-
Smart Control: Includes MRCOOL® Smart Thermostat for precise, easy temperature adjustments.
-
Flexible Pairing: Works seamlessly with the 60K MRCOOL® VersaPro® Central Ducted Air Handler. Supports multiple installation options and an optional heat kit.
-
Eco-Friendly: Uses R-454B refrigerant, a greener alternative that lowers environmental impact.
-
Built to Last: Outdoor unit features painted galvanized steel construction for long-term durability.
-
Easy Maintenance: Air handler includes a compact design, slide-out blower, and self-diagnostic panel for quick troubleshooting.
Warranty:
-
10-year coverage on compressor, parts, and labor.
-
Labor warranty activates automatically upon installation — no registration needed.
Why Choose It?
The 60K MRCOOL® Hyper Heat system offers powerful performance, smart controls, and lasting reliability, keeping your home comfortable in every season.
|
SEER2
|
16
|
|
EER2
|
10
|
|
HSPF-4
|
9
|
|
HSPF-5
|
8
|
|
CFM
|
2648.6
|
|
TONNAGE
|
5
|
|
COOLING CAPACITY (BTU)
|
54000
|
|
HEATING CAPACITY (BTU)
|
56000
|
|
VOLTAGE (V)
|
208-230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
40
|
|
MIN CIRCUIT AMPACITY (A)
|
40
|
|
COLOR
|
gray
|
|
REFRIGERANT TYPE
|
R454B
|
|
REFRIGERANT VOLUME (OZ)
|
183.42
|
|
DECIBEL RATING (DBA)
|
65
|
|
LIQUID LINE SIZE
|
3/8
|
|
SUCTION LINE SIZE
|
3/4
|
|
WIFI COMPATIBILITY
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
ETL CERTIFIED
|
Yes
|
|
ENERGY STAR CERTIFIED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
BASE PARTS WARRANTY
|
10 Years
|
|
BASE COMPRESSOR WARRANTY
|
10 Years
|
|
BASE LABOR WARRANTY
|
10 Years
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
NET DEPTH (IN)
|
16.34
|
|
NET HEIGHT (IN)
|
52.48
|
|
NET WIDTH (IN)
|
37.48
|
|
NET WEIGHT (LBS)
|
242.95
|
|
GROSS DEPTH (IN)
|
19.49
|
|
GROSS HEIGHT (IN)
|
58.27
|
|
GROSS WIDTH (IN)
|
43.11
|
|
GROSS WEIGHT (LBS)
|
275.13
|
|
