The 36K MRCOOL® Hyper Heat Central Ducted Condenser is built to deliver outstanding performance in even the harshest climates, from icy winters to scorching summers. Engineered with DC Inverter and variable-speed technology, this high-efficiency system provides dependable heating and cooling with optimized energy use. Achieving up to 17.4 SEER2 and 10.2 HSPF2-4, it strikes the perfect balance between power and efficiency.

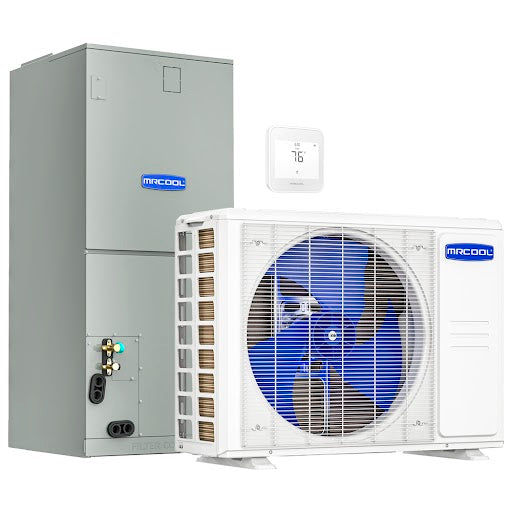

Paired with the 36K MRCOOL® VersaPro® Central Ducted Air Handler, the system offers seamless integration and multiple installation configurations, with an optional heat kit available for added versatility. The use of eco-friendly R-454B refrigerant reduces environmental impact while maintaining top-tier performance.
Built to last, the outdoor condenser features a painted galvanized steel exterior, while the air handler’s compact design, slide-out blower, and self-diagnostic panel make maintenance simple and efficient.
The included MRCOOL® Smart Thermostat allows for easy temperature control, ensuring year-round comfort at your fingertips. Backed by a 10-year warranty covering the compressor, parts, and labor—automatically activated at installation—this system delivers long-term reliability and peace of mind.
Upgrade to the 36K MRCOOL® Hyper Heat Central Ducted Condenser for powerful, efficient, and worry-free climate control in any season.
|
SEER2
|
17.4
|
|
EER2
|
11.7
|
|
HSPF-4
|
10.2
|
|
HSPF-5
|
8.6
|
|
CFM
|
3001.8
|
|
TONNAGE
|
3
|
|
COOLING CAPACITY (BTU)
|
36000
|
|
HEATING CAPACITY (BTU)
|
37000
|
|
VOLTAGE (V)
|
208-230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER (A)
|
30
|
|
MIN CIRCUIT AMPACITY (A)
|
29
|
|
COLOR
|
gray
|
|
REFRIGERANT TYPE
|
R454B
|
|
REFRIGERANT VOLUME (OZ)
|
126.99
|
|
DECIBEL RATING (DBA)
|
62.5
|
|
LIQUID LINE SIZE
|
3/8
|
|
SUCTION LINE SIZE
|
3/4
|
|
WIFI COMPATIBILITY
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
ETL CERTIFIED
|
Yes
|
|
ENERGY STAR CERTIFIED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
BASE PARTS WARRANTY
|
10 Years
|
|
BASE COMPRESSOR WARRANTY
|
10 Years
|
|
BASE LABOR WARRANTY
|
10 Years
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
NET DEPTH (IN)
|
16.34
|
|
NET HEIGHT (IN)
|
38.39
|
|
NET WIDTH (IN)
|
38.58
|
|
NET WEIGHT (LBS)
|
204.15
|
|
GROSS DEPTH (IN)
|
19.68
|
|
GROSS HEIGHT (IN)
|
42.52
|
|
GROSS WIDTH (IN)
|
45.08
|
|
GROSS WEIGHT (LBS)
|
253.23
|
|
