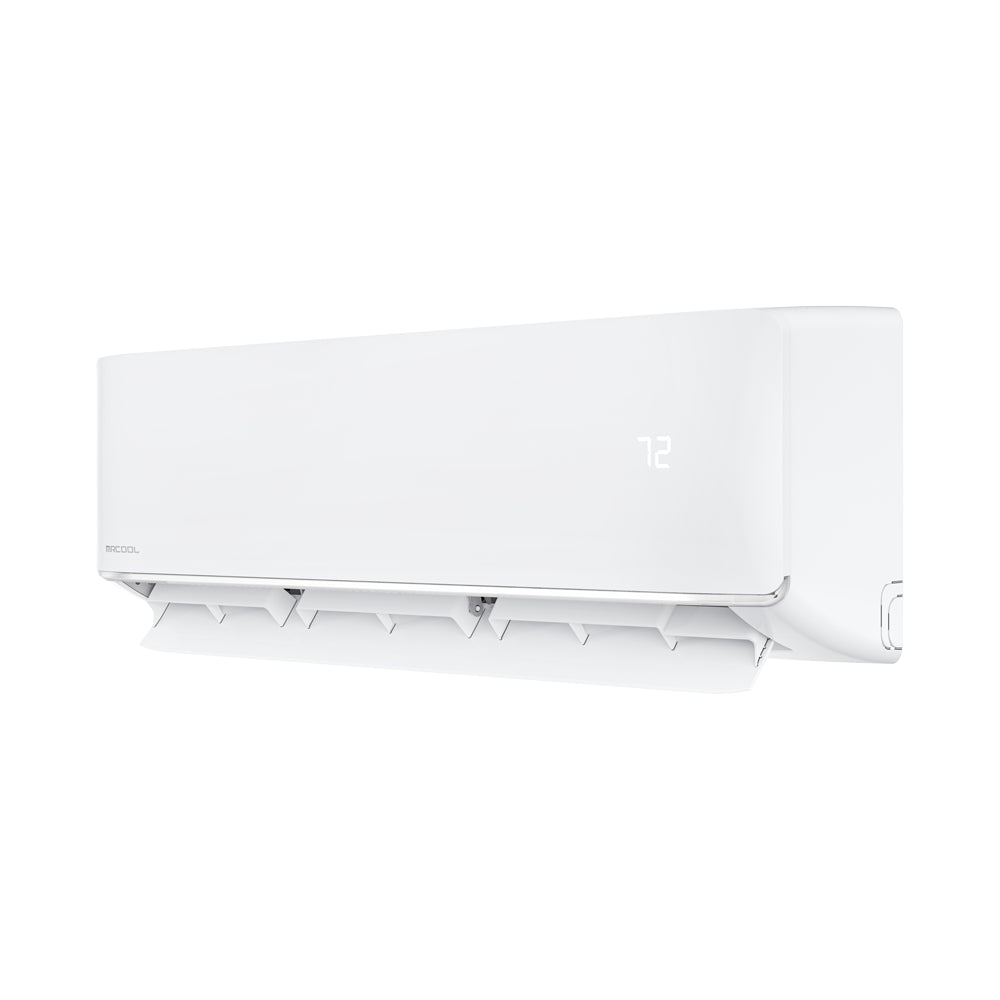

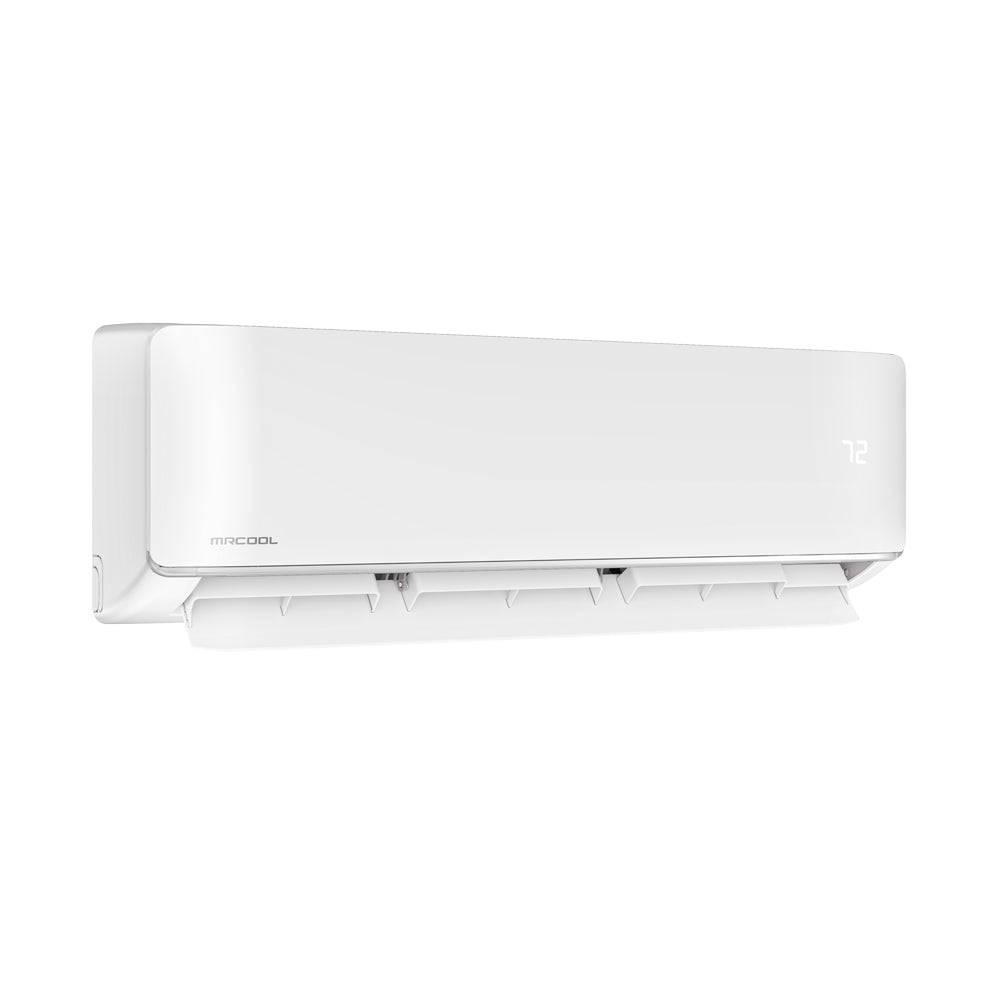

MRCOOL® DIY® 5th Gen 12K BTU Ductless Mini-Split Heat Pump
The MRCOOL® DIY® 5th Generation 12K BTU Mini-Split Heat Pump offers efficient, all-season comfort for spaces up to 550 sq. ft. Designed specifically for homeowners, it features a genuine DIY installation process—no special tools or professional help required—making setup fast, simple, and budget-friendly.
Quick & Simple Setup
-
DIY® QuickConnect® Line Set (sold separately): Pre-charged with R-454B refrigerant, eliminating the need for vacuuming and cutting installation time and costs.
-
DIYPRO® Cable: Replaces traditional electrical conduit, while providing superior durability and resistance to weather and outdoor wear.
Smart Comfort Control
-
Manage your system via the included wireless remote, SmartHVAC app (iOS & Android), or hands-free commands with Amazon Alexa and Google Assistant.
-
Follow Me: Automatically adjusts airflow temperature based on the remote’s location for consistent comfort.
-
Dry Mode: Reduces excess humidity to improve indoor air quality.
Built to Last
-
Gold Fin® Condenser: Enhanced corrosion resistance for long-term durability, especially in coastal regions.
-
Warranty Protection: Limited Lifetime Warranty, 7-Year Compressor Warranty, and 5-Year Parts Warranty.
Efficient, versatile, and easy to install—the MRCOOL® DIY® 12K BTU delivers reliable climate control with smart features and lasting performance.
|
FEATURE LIST
|
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
|
|
VOLTAGE (V)
|
208/230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MOUNT TYPE
|
Wall
|
|
COLOR
|
White
|
|
MAX COVERAGE AREA
|
550 sqft
|
|
OSCILLATION
|
Yes
|
|
FILTER TYPE
|
Reusable
|
|
AUXILIARY HEATER INCLUDED
|
No
|
|
AUXILIARY HEATER AVAILABLE
|
No
|
|
FAN ONLY OPTION
|
Yes
|
|
QUIET MODE
|
Yes
|
|
AUTO COOL
|
Yes
|
|
WIFI COMPATIBILITY
|
Yes
|
|
APP COMPATIBILITY
|
Yes
|
|
WORKS WITH IOS
|
Yes
|
|
WORKS WITH ANDROID
|
Yes
|
|
REMOTE CONTROL INCLUDED
|
Yes
|
|
UL LISTED
|
Yes
|
|
ETL LISTED
|
Yes
|
|
AHRI CERTIFIED
|
Yes
|
|
REGISTERED WARRANTY
|
Extended Limited Lifetime*
|
|
BASE PARTS WARRANTY
|
5
|
|
BASE COMPRESSOR WARRANTY
|
7
|
|
HAS BATTERIES
|
Yes
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
NET DEPTH (IN)
|
7.44
|
|
NET HEIGHT (IN)
|
11.63
|
|
NET WIDTH (IN)
|
31.57
|
|
NET WEIGHT (LBS)
|
24.47
|
|
GROSS DEPTH (IN)
|
16.34
|
|
GROSS HEIGHT (IN)
|
14.37
|
|
GROSS WIDTH (IN)
|
36.02
|
|
GROSS WEIGHT (LBS)
|
35.05
|
|
